Implement Command System
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2020
Manual
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2020-12-22

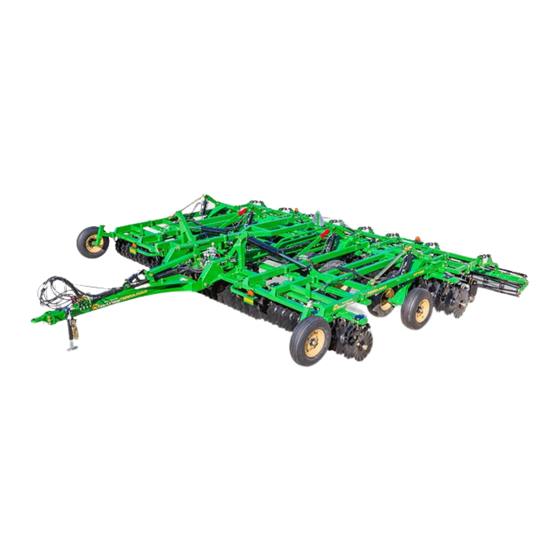

Terra Max
EN
589-930M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terra Max HT1100-20 and is the answer not in the manual?

Questions and answers

Related Manuals for GREAT PLAINS Terra Max HT1100-20

Summary of Contents for GREAT PLAINS Terra Max HT1100-20

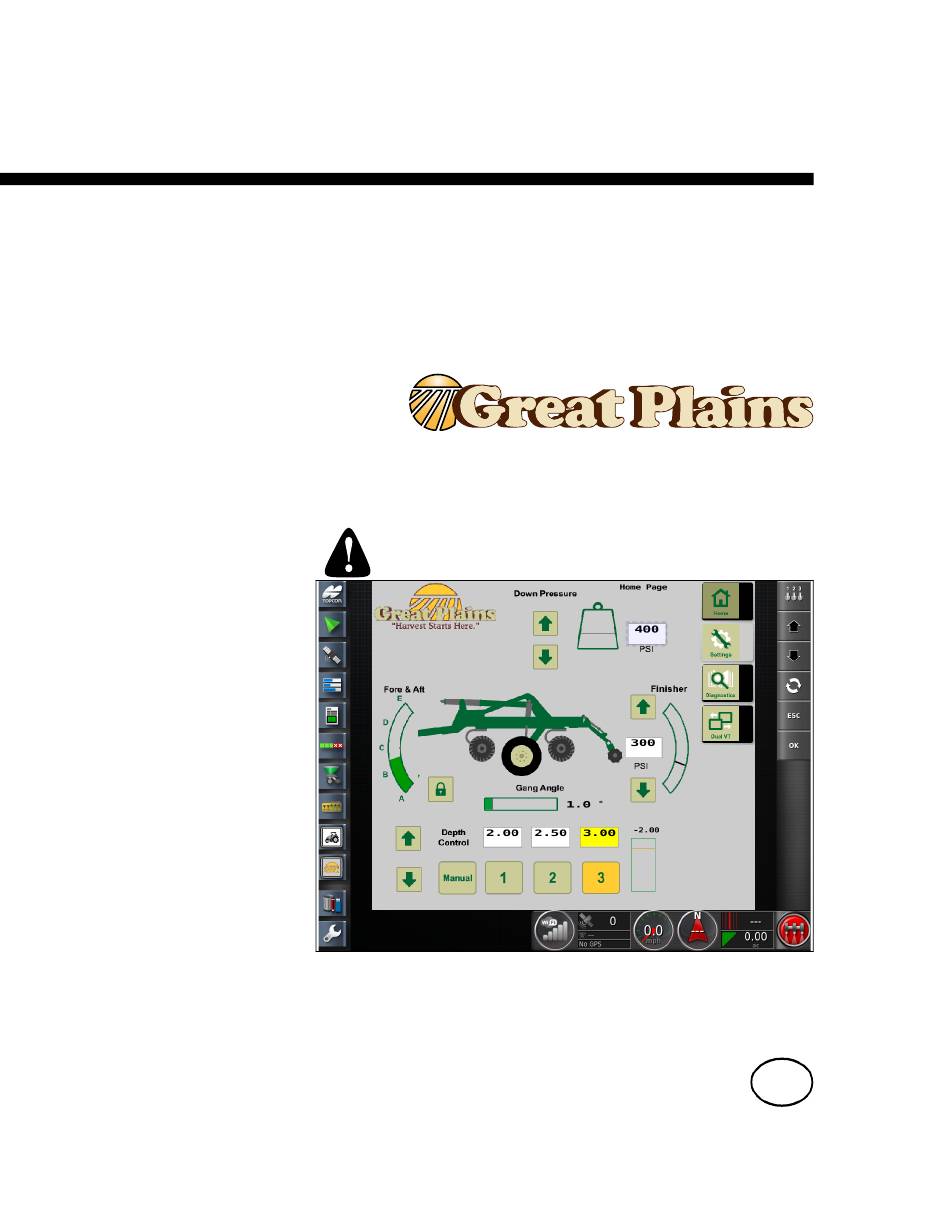

  • Page 1 Implement Command System Manual Terra Max Manufacturing, Inc. www.greatplainsmfg.com Read the operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Illustrations may show optional equipment not supplied with standard unit.

  • Page 2: Machine Identification

    Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Great Plains | 589-930M...

  • Page 3: Important Safety Information

    Important Safety Information Important Safety Information Look for Safety Symbol The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the...

  • Page 4: Wear Protective Equipment

     Lower implement, put tractor in park, turn off engine, and remove the key.  Secure Hydraulic Reel Attachment using blocks and supports provided.  Detach and store Hydraulic Reel Attachment in an area where children normally do not play. Great Plains | 589-930M...

  • Page 5: Tire Safety

    Important Safety Information Tire Safety Tire changing can be dangerous and should be performed by trained personnel using correct tools and equipment.  When inflating tires, use a clip-on chuck and extension hose long enough for you to stand to one side–not in front of or over tire assembly.

  • Page 6: Description Of Unit

    Further Assistance Great Plains Manufacturing, Inc. wants you to be satisfied with your new Terra Max. If for any reason you do not understand any part of this manual or are otherwise dissatisfies...
  • Page 7 Assembly Assembly Implement Command System Refer to Figure 2 The Controller Assembly will be shipped in a container, with the installation hardware and will need installed on the top of the brace bar, on the left hand side of the center brace bar. Figure 2 TP-69568 ICS Controller Assembly...
  • Page 8 If not the sensor will not function correctly and may cause dame to the machine. Figure 7 TP-69548 TP-69779 Gang Angle Great Plains | 589-930M...
  • Page 9 Assembly Refer to Figure 8 The Down Pressure Valve (1) (for the finisher down pressure) is plugged into Finisher DPT1, Finisher DPT3, Finisher and DPC1, on the frame harness. The Down Pressure Valve (2) (for the wing down pressure) is plugged into DPT1, DPT3, and DPC1, on the frame harness.
  • Page 10 Be sure to run them out to the correct wings. If not already installed, the proximity sensors may need to be installed into the brackets on the wing hinges. See parts manual for proper adjustment. Figure 10 TP-69559 Wing Wiring Route Great Plains | 589-930M...
  • Page 11 Assembly Refer to Figure 11 The Depth Control Sensor and the hardware that connects to the torque tube will be shipped in place on the center frame, the adjustable link may need connected to the torque tube. This may be left unattached to during shipment to keep it from bending. Connect the center frame harness, DCS lead to this sensor.
  • Page 12 After all the connections are made, extra wire can be bundled up and secured together with a zip tie to keep from getting damaged. Figure 13 TP-69561 Wiring Route Great Plains | 589-930M...

  • Page 13: Operation

    Operation Operation Implement Command System Refer to Figure 14 This system allows you to monitor and adjust Hydraulic Down Pressure on the wings and finisher and Working Depth from an ISOBUS Virtual Terminal. You can also monitor Gang Angle, Fore & Aft leveling, these must be adjusted by using the hydraulic lever in the tractor.
  • Page 14 You are able to set the target depth by using the arrow keys or by tapping one of the 3 the preset buttons, or tap one of the target depth boxes and set the target depth with the key pad. Great Plains | 589-930M...
  • Page 15 Operation Fore/Aft Position Gauge Finisher Pressure Gauge Fore/Aft Gang Angle Lock Gauge Figure 16 TP-69755b Reel Position, Fore/Aft, Gang Angle Fore/Aft Leveling Null4:  The Fore/Aft Leveling and the Gang Angle are on the same hydraulic circuit, to change from one to the other Fore/Aft leveling can be monitored, and locked in place on the you must use the lock button to designate which option screen, and must be unlocked before using the hydraulic...
  • Page 16 On a 3 section machine if you want to run 0 down pressure you just set the fold hydraulic circuit into the float position allowing the wings to move while not applying down pressure to them. Great Plains | 589-930M...

  • Page 17: Manual Override

    Operation Manual override Depth control valve Push button and turn ¼ turn on coil DCC1, this will cause the button to pop out and then you can adjust your depth with the manual depth valve. Wing Down Pressure – lower valve Refer to Figure 18 When in override the high pressure proximity sensors will not work.
  • Page 18 Implement Command System, Terra Max Terra Max ICS System 20-35 TP-69733 Great Plains | 589-930M...
  • Page 19 Operation Terra Max ICS System 20-35 Parts List TP-69733 Image No. 1 843-222C DOWN PRESSURE VALVE 1 CIRCUIT 2 843-226C DEPTH CONTROL VALVE 3 843-225C SPLITTER VALVE 4 589-887S GPAC CONTROLLER ASSEMBLY 5 589-725S TM DEPTH CONTROL SENSOR ASSY Inludes items 11, 19, 20 & 30-34 6 589-727S ADJUSTABLE LINK 4.25"...
  • Page 20 Implement Command System, Terra Max Terra Max ICS System 40 TP-69776 Great Plains | 589-930M...
  • Page 21 Operation Terra Max ICS System 40 Parts List TP-69776 Image No. 1 843-222C DOWN PRESSURE VALVE 1 CIRCUIT 2 843-226C DEPTH CONTROL VALVE 3 843-225C SPLITTER VALVE 4 589-887S GPAC CONTROLLER ASSEMBLY 5 589-725S TM DEPTH CONTROL SENSOR ASSY Inludes items 11, 19, 20 & 30-34 6 589-728S ADJUSTABLE LINK 5.50"...
  • Page 22 Implement Command System, Terra Max Terra Max ICS Hydraulic System 20 & 25 TP-69734 Great Plains | 589-930M...
  • Page 23 Operation Terra Max ICS Hydraulic System Parts Lists 20 & 25 TP-69734 Image No. 1 811-918C HG HANDLE - YELLOW RET 2 811-917C HG HANDLE - YELLOW EXT 3 811-919C AD 3/4MORB 3/4FORB (HG) 4 548-004S HG PAIR - YELLO MORB-FORB Includes items 1-3 5 811-394C CP 3/4FORB MALE QD POPPET TYPE 6 811-063C EL 3/4MJIC 3/4MORB...
  • Page 24 Implement Command System, Terra Max Terra Max ICS Hydraulic System 30 & 35 TP-69768 Great Plains | 589-930M...
  • Page 25 Operation Terra Max ICS Hydraulic System Parts List 30 & 35 TP-69768 Image No. 1 811-918C HG HANDLE - YELLOW RET 2 811-917C HG HANDLE - YELLOW EXT 3 811-919C AD 3/4MORB 3/4FORB (HG) 4 548-004S HG PAIR - YELLO MORB-FORB Includes items 1-3 5 811-394C CP 3/4FORB MALE QD POPPET TYPE 6 811-063C EL 3/4MJIC 3/4MORB...
  • Page 26 Implement Command System, Terra Max Terra Max ICS Hydraulic System 40 TP-69770 Great Plains | 589-930M...
  • Page 27 Operation Terra Max ICS Hydraulic System Parts List 40 TP-69770 Image No. 1 811-918C HG HANDLE - YELLOW RET 2 811-917C HG HANDLE - YELLOW EXT 3 811-919C AD 3/4MORB 3/4FORB (HG) 4 548-004S HG PAIR - YELLO MORB-FORB Includes items 1-3 5 811-394C CP 3/4FORB MALE QD POPPET TYPE 6 811-063C EL 3/4MJIC 3/4MORB 7 811-690C EL 45 3/4MORB 3/4MJIC...
  • Page 28 Implement Command System, Terra Max Implement Command Hitch/Gang Hydraulic Layout TP-69742 Great Plains | 589-930M...
  • Page 29 Operation Implement Command Hydraulic Finisher Layout TP-69741 12/22/2020...
  • Page 30 Implement Command System, Terra Max Implement Command Hydraulic Fold Layout HT1100-20 & 25 TP-69740 Great Plains | 589-930M...
  • Page 31 Operation Implement Command Hydraulic Fold Layout HT1100-30 & 35 TP-69769 12/22/2020...
  • Page 32 Implement Command System, Terra Max Implement Command Hydraulic Fold Layout HT1100-40 TP-69778 Great Plains | 589-930M...
  • Page 33 Operation Wiring Connections Layout 20-35 TP-69738 12/22/2020...
  • Page 34 Implement Command System, Terra Max Wiring Connections Layout 40 TP-69749 Great Plains | 589-930M...
  • Page 36 Great Plains, Mfg. 1525 E. North St. P.O. Box 5060 Salina, KS 67402...
