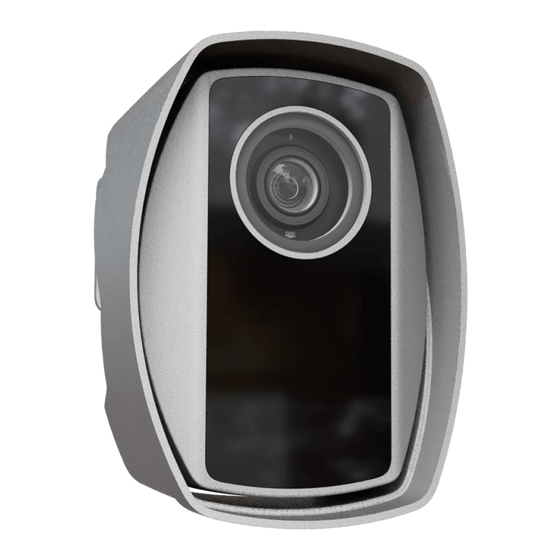

- Page 1 Einar Installation guide This guide contains an overview of the hardware and required components, suggested scenarios and step-by-step guide for installation, and safety and maintenance instructions. © Copyright Adaptive Recognition Inc. 24.04.2023. All rights reserved.
-
Page 2: Table Of Contents
EINAR Installation Guide EINAR Install Guide Document version: 2023.04.12. Table of Contents Hardware overview ............................ 3 Required components ..........................4 Recommended installation scenarios ....................5 Installation steps............................7 4.1. Insert the microSD card ........................7 4.2. Mounting the camera ........................8 4.3. -
Page 3: Hardware Overview
EINAR Installation Guide 1. HARDWARE OVERVIEW Page 3/23 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Hungary Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM... -
Page 4: Required Components
EINAR Installation Guide 2. REQUIRED COMPONENTS In the box: • Einar ANPR/ALPR Camera • Bracket • IP67 Weather Cap for RJ45 Plug • Ground Terminal • 128GB MicroSD Card Optional: • ANPR and MMR license • Engine file • GPIO Cable Kit •... -
Page 5: Recommended Installation Scenarios
How to Install an ANPR camera video on Adaptive Recognition channel. Also check Einar User Manual on page Einar ANPR Camera for Access Control & Parking - Adaptive Recognition's documents where additional installation tips can be found. Page 5/23 REQUESTINFO@ADAPTIVERECOGNITION.COM... - Page 6 EINAR Installation Guide Please note the following when mounting your camera: 1. Please make sure that the camera does not roll neither to the left nor right. 2. Water may enter into the camera inside through not properly sealed connectors. To maintain the camera’s watertightness please make sure that connected cables are tightened properly...
-
Page 7: Installation Steps
EINAR Installation Guide 4. INSTALLATION STEPS 4.1. INSERT THE MICROSD CARD You can insert a microSD card into the device by removing the service port cover as shown in the attached figure. The use of the card is described in the user manual. -
Page 8: Mounting The Camera
EINAR Installation Guide 4.2. MOUNTING THE CAMERA The camera can be mounted using 3 mounting holes with a diameter of 6 mm on the console. When mounting, take into consideration the weight of the camera (1540g), with the appropriate fittings. -
Page 9: Ground The Camera
EINAR Installation Guide 4.3. GROUND THE CAMERA Grounding should be done at the ground point on the camera with the bearing provided as it is shown on the picture. Make sure that the metallic contact is secured at the ground point (e.g. a metal pole) and that the ground point itself is properly led to the ground. -
Page 10: Adjust The View Direction Of The Camera
EINAR Installation Guide 4.4. ADJUST THE VIEW DIRECTION OF THE CAMERA Loosen the screws marked 2, 3 (tilt) and 4 (turn) by using a 4 mm Allen key, while holding the camera so that it does not “knock down”, then set it to the desired position. The horizontal direction can be adjusted by loosening screw 1. -
Page 11: Assemble The Waterproof Cover Of The Rj45 Connector
EINAR Installation Guide 4.5. ASSEMBLE THE WATERPROOF COVER OF THE RJ45 CONNECTOR The enclosed IP67 shielded RJ45 connector housing must be assembled as shown. Before damaging the RJ45 insert, the components of the connector housing must be pulled onto the cable in the order shown! The crimped RJ45 insert is placed in the housing A. -
Page 12: Gpio Cableconnection
EINAR Installation Guide 4.6. GPIO CABLECONNECTION Steps to connect the GPIO cable: 1. unscrew the fixing screws of the cover plate using the TX10 screwdriver 2. install the sealing plate in the package 3. plug the connector into the port 4. -
Page 13: Accessing The Web Interface
You can find the camera on the network using the DeviceTool. Double-click on the selected camera, and the Einar camera web interface will open in the default browser. While running, the program continuously looks for detectible cameras on the network and displays them in a list with their current IP addresses. -
Page 14: Safety
EINAR Installation Guide 5. SAFETY All screws should be hand- tightened! Do not overtighten the screws. Failures due to inappropriate installation void the warranty. The camera must only be installed on a stable surface! For cabling use quality, outdoor-certified cables! Improper cabling causes warranty to void! Water may enter into the camera inside through not properly sealed connectors. -
Page 15: Maintenance
EINAR Installation Guide 5. MAINTENANCE The cameras are designed for 24/7/365 work for every weather condition and they do not need special maintenance. Please keep clean the camera front. During the cleaning process, avoid scratching the front cover. Do not use the camera without its sun-shield in hot environment, because it was specially designed to provide proper air-cooling. -
Page 16: Appendix
EINAR Installation Guide 6. APPENDIX ETHERNET CONNECTION Pin# Data (802.3at/af) 10/100BaseTX 1000BaseT TP1+ TP1- TP2+ TP3+ TP3- TP2- TP4+ TP4- Connector allocation standard: EIA / TIA-568B (straight cable pinout) Due to the POE power supply, all 4 pairs of wires must be connected even with a 10 /... - Page 17 EINAR Installation Guide Page 17/23 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Hungary Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM...
-
Page 18: Io Connection
EINAR Installation Guide IO CONNECTION EINAR IO waterproof connector and cable pin layout: PIN4: IO_I_N (black) PIN5: IO_I_P (brown) PIN6: IO_O_A (white) PIN7: IO_O_B (blue) Page 18/23 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Hungary Adaptive Recognition Singapore... - Page 19 EINAR Installation Guide Einar camera connection diagram with IO cable and ParkIT junction box: Camera GPIO cables: • Blue: 3. Opto_out_G (-) • White: 4. Opto_out_S (+) • Brown: 4. Opto_in_S (+) • Black: 6. Opto_in_G (-) User side cables: •...
-
Page 20: Adding Alternate Ip Address
EINAR Installation Guide ADDING ALTERNATE IP ADDRESS Windows Vista/Windows 7/Windows 10 1. Click Start and select Control Panel. 2. Open Network and Sharing Center. 3. Click Manage Network Connections on the left side of Network and Sharing Center. 7. Click on the network connection you want to add an IP address for (to which the camera has been connected) and select Properties. -
Page 21: Restore Factory Defaults
EINAR Installation Guide RESTORE FACTORY DEFAULTS If you experience some malfunctions or critical errors in the camera, and the software-based reset does not help, you have an option to physically reset it. In this case, press and hold the reset button (1) until the status LED (2) lights up continuously (approx. -
Page 22: Position Of The Sticker
EINAR Installation Guide POSITION OF THE STICKER The device data sticker is located at the bottom of the product and contains the following information: • Product type • MAC Address • Power data • Serial Number Page 22/23 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America... -
Page 23: Contact Information
Web: adaptiverecognition.com/support/ Adaptive Recognition Hungary Technical Support System (ATSS) is designed to provide you the fastest and most proficient assistance, so you can quickly get back to business. Information regarding your hardware, latest software updates and manuals are easily accessible for customers via our Documents Site (www.adaptiverecognition.com/doc...
