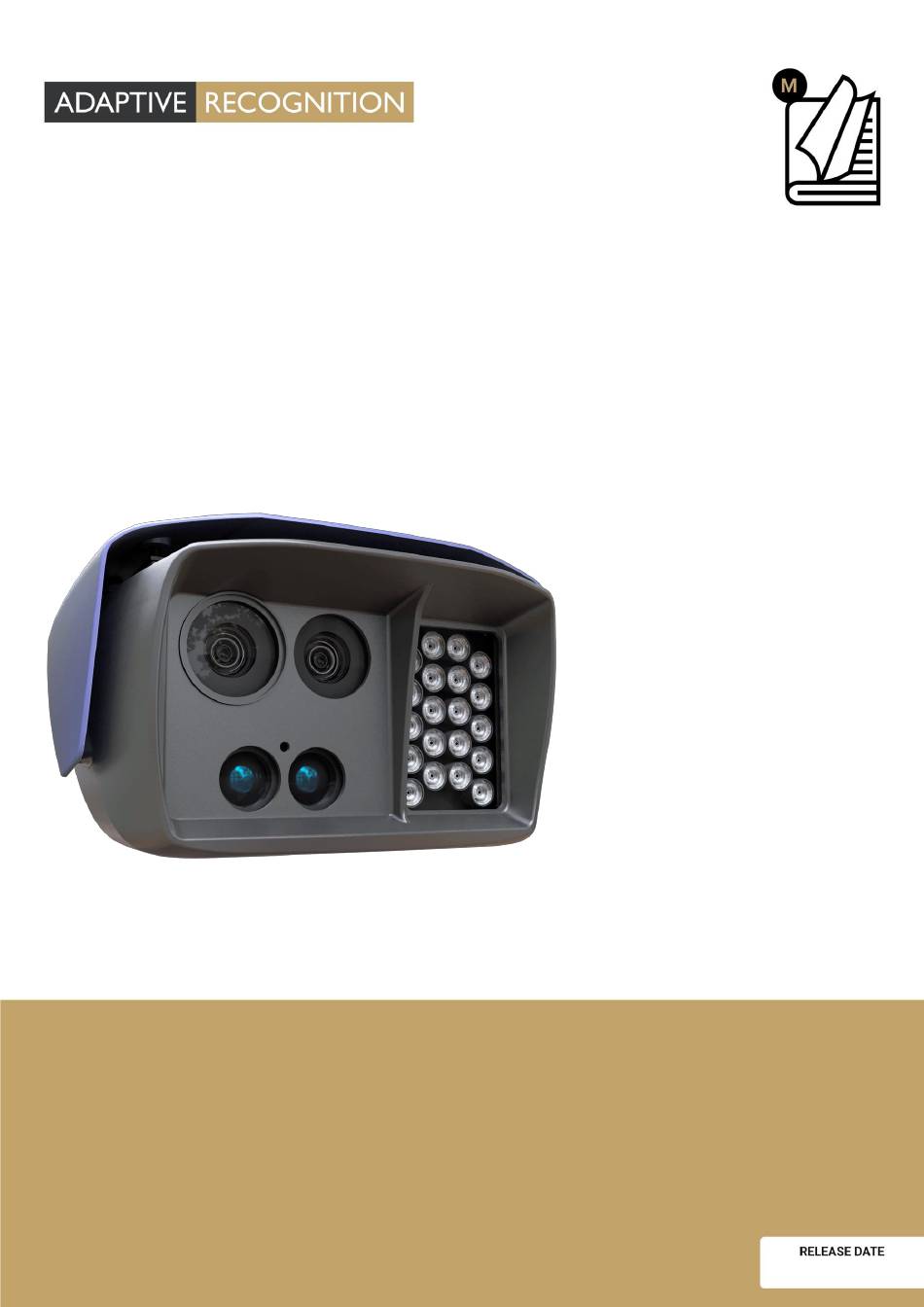

- Page 1 User Manual This manual contains instructions on accessing the web interface, system settings and setup guidelines, and usage and maintenance. © Copyright Adaptive Recognition Inc. 20.04.2023. All rights reserved.
-
Page 2: Table Of Contents
S1 User Manual USER MANUAL Document version: 2.00.02 Table of Contents S1 ....................................2 Introduction ..............................3 SETUP ARH CAM S1 ..........................4 login ................................5 Setup enforcement ............................ 6 Stop enforcement ............................ 13 Introduction to the Main screen ......................14 6.1. -
Page 3: Introduction
S1 User Manual INTRODUCTION S1 is a mobile no-staff speed and traffic enforcement camera with on-board ANPR. It is capable of spotting a violator from 1200 meters (4000 feet) away and to return certified speed measurement result from 600 meters (2000 feet) away. The unique high-precision built-in laser technology reaches as far as no other speed monitoring camera on the market. -
Page 4: Setup Arh Cam S1
S1 User Manual SETUP ARH CAM S1 1. Connect external battery to ARH CAM S1. Power cable plug has a red straight sign to show the proper direction of connect to the camera. It must be on the top. 2. Turn on power on external battery. -
Page 5: Login
S1 User Manual LOGIN After the start-up process, Login screen will appear. On the Login screen, select “Data Center” icon, type in Username and Password (click in to the empty field, touch-screen keyboard will pop-up, enter necessary characters, then press “Next” button), press OK, “Main”... -
Page 6: Setup Enforcement
S1 User Manual SETUP ENFORCEMENT Position camera properly so as to the white or green circle with cross must be in the level of the number plates. Hereinafter we call it marker. On the “Main” screen, click on “Enforcement” floating menu, located on the upper left side of the screen. - Page 7 S1 User Manual “Description” can be given to the measurement, after it is done, press “Next” icon. In the “Define measuring limits” window, set measurement limits, then tap “Next” icon. Page 7/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM...
- Page 8 S1 User Manual Enforcement” floating menu will appear, where “Enforcement parameters” can be chosen, click on that icon to go further. In the “Enforcement parameters”, optional control function can be chosen (selected functions appear green highlight), clicking on “Next” button to step on “Speed limits”. Description of each functions will be discussed later.
- Page 9 S1 User Manual Actual speed limit values can be given with virtual keyboard by click into the numeric field or tapping the up and down button next to numeric field, when it is done, press “Next”. 3 options are available to choose from: use one of the 2 sensors in the camera separately or using 2 sensors at the same time.
- Page 10 S1 User Manual In case of 2 sensors enforcement, it needs to setup 1. and 2. sensor individually. Zoom and Focus can be easily adjusted for the proper setting. “Locking camera” will appear to remind tighten tilt lock knob and tap “Next”.
- Page 11 S1 User Manual After finished setting of all measurement function and parameters, it will change to “Main” screen again with the “Enforcement” floating menu, “Start enforcement” icon is become active. By click on “Start enforcement” icon, screen will guide you to the “Check of location parameters” to verify all values, if It is correct, press “Accept”...
- Page 12 S1 User Manual S1 device is started measurement. Fist, split window will appear with the live view on the left side and 3 small windows with the last 3 detected events. By tap on the left live view image, it will guide you back to the main window.
-
Page 13: Stop Enforcement
S1 User Manual STOP ENFORCEMENT If you have finished the measurement, click on “Stop enforcement” icon, then “Log out” icon and finally tap “Power off” icon on the Login window to switch off the device. Page 13/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America... -
Page 14: Introduction To The Main Screen
S1 User Manual INTRODUCTION TO THE MAIN SCREEN After login, the Main screen will appear. The live view is situated in the center of the screen with the information bar. • Marker in the middle of live view show: a. Red cross - no reflected signal or targeted object is outside of the adjusted parameters. -
Page 15: Enforcement Menu
S1 User Manual 6.1. ENFORCEMENT MENU Select, add and edit all measurement function which is crucial for the enforcement. • New enforcement: start adding new measurement parameters after a finished enforcement • Select location and method: enter related location and task data to the measurement method •... -
Page 16: Information Menu
S1 User Manual 6.2. INFORMATION MENU • Enforcement information: Parameters and settings of the actual measurement can be seen 6.3. EVENTS MENU • Current events: All event data displayed from the actual enforcement • Previous reports: Select from each previous enforcement data in this menu Page 16/31 REQUESTINFO@ADAPTIVERECOGNITION.COM... -
Page 17: Devices
S1 User Manual 6.4. DEVICES • ARH CAM S1: camera data is displayed • INFO: status of the device is displayed 6.5. OPTIONS • Image on display can be adjusted according to the environment light conditions. During night measurement, reduce brightness of display is advisable to not be disturbing. -
Page 18: Camera
S1 User Manual 6.6. CAMERA • Focus: set focus to the required sharpness with automatic focus button, or with the manual focus setting, and the vehicles license plate seen on the livestream should be readable • Focus fine tuning: adjust focus with finer scale. Tap on “Set focus”, to see live stream in a full... -
Page 19: Bottom Information Bar
S1 User Manual BOTTOM INFORMATION BAR In the bottom information bar, you can see the vehicle’s data which got to laser beam: speed, direction, distance. In case of infringement presumption, the device gives audio-visual signal: if the vehicle exceeded the speed limit, the number showing the speed limit will turn red in the bottom information bar of the screen. - Page 20 S1 User Manual The date and the current time can be seen on the upper edge of the screen: * The software version, containing the test and educational profiles, are developed in case of occasional usage! Signal strength of the data connection (signal strength): weak, good, excellent...
-
Page 21: Detailed Description Of The Speed Measurement
S1 User Manual DETAILED DESCRIPTION OF THE SPEED MEASUREMENT There are two measurement versions: • Automatic speed measurement: there is no need for the operator during the measurement • Manual speed measurement: the help of the operator is needed •... - Page 22 S1 User Manual • Vehicle counting: counting all passing vehicle. It can only use together with “Vehicle monitoring” function. • ADR: recognize trucks which transport of hazardous materials • Prohibited entry: monitoring vehicles driving in a restricted area. Controlled traffic direction and vehicle class have to be chosen during the setup of the function.
- Page 23 S1 User Manual • Prohibited overtaking: monitoring prohibited barrage lane crossing. To set controlled lane, move crosshair to the “A” point as it shown on the figure and press button next to “A” point to measure distance. Move camera to the “B” point and press button next „B” point.
- Page 24 S1 User Manual • Bus lane: Same method as “Motorway service lane”. Page 24/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary...
-
Page 25: Control Functions Pairing
S1 User Manual 10. CONTROL FUNCTIONS PAIRING 1. Top line „Automatic speed control”+”Vehicle monitoring”+”Vehicle counting”+”ADR” “Manual speed control”+”Vehicle monitoring”+”ADR” 2. Bottom line „Automatic speed control”+one function from middle line Page 25/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM... -
Page 26: Usage Of Tripod
Clicking sound confirm right position of camera on the rail. 10. Ran fixing screw of the camera You can position ARH CAM S1 vertically and horizontally by release level handle under the rail of tripod. - Page 27 S1 User Manual Page 27/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary...
- Page 28 S1 User Manual Page 28/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary...
-
Page 29: Fold Up Of Tripod
S1 User Manual 12. FOLD UP OF TRIPOD 1. Release knob of the camera. 2. Pull off camera from rail by pressing the auto lock safety pin on the left side. 3. Release screw on horizontal spreader (3 pcs). 4. Fold up legs. - Page 30 S1 User Manual Page 30/31 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary...
-
Page 31: Contact Information
Web: adaptiverecognition.com/support/ Adaptive Recognition Hungary Technical Support System (ATSS) is designed to provide you the fastest and most proficient assistance, so you can quickly get back to business. Information regarding your hardware, latest software updates and manuals are easily accessible for customers via our Documents Site (www.adaptiverecognition.com/doc...
