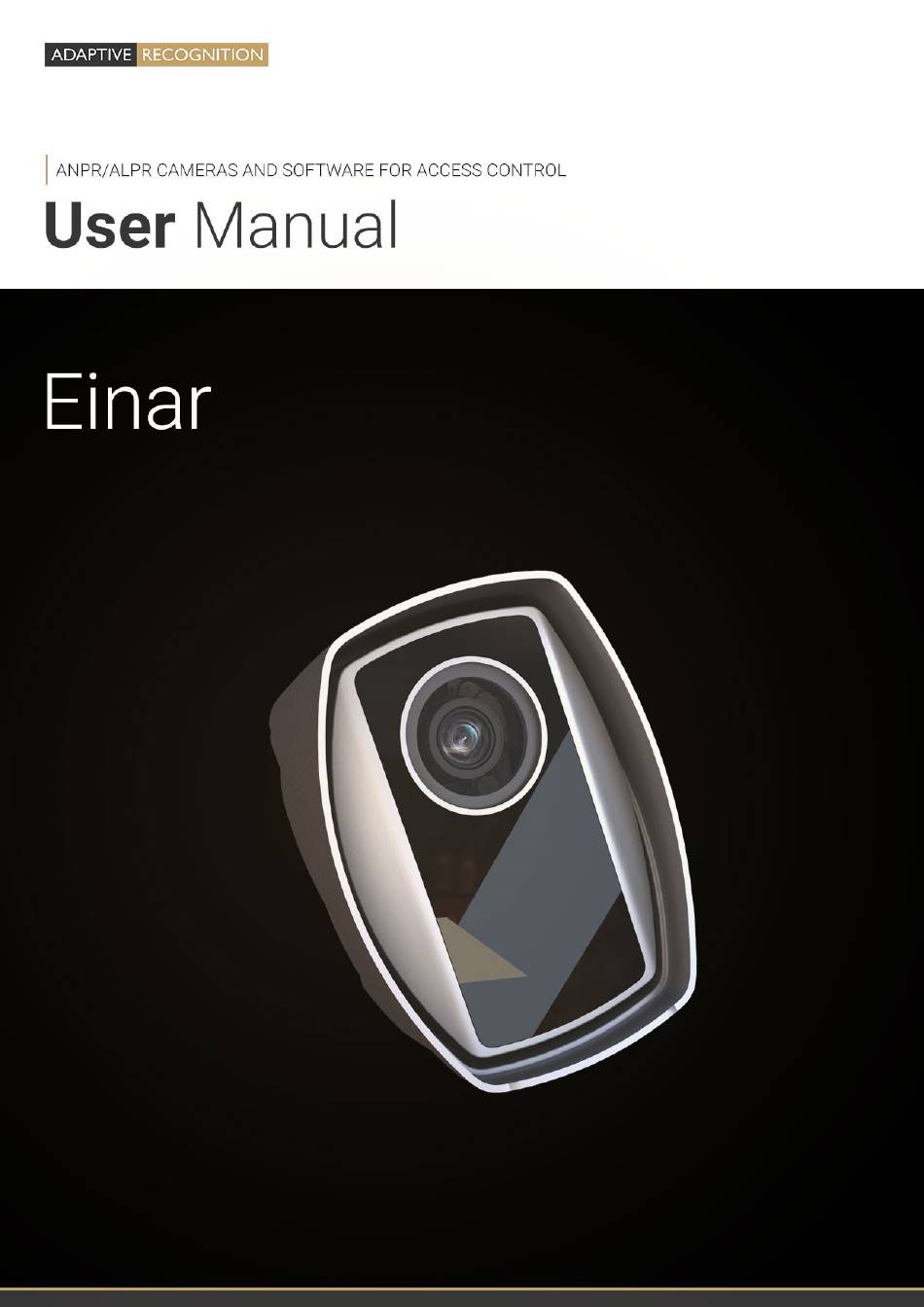

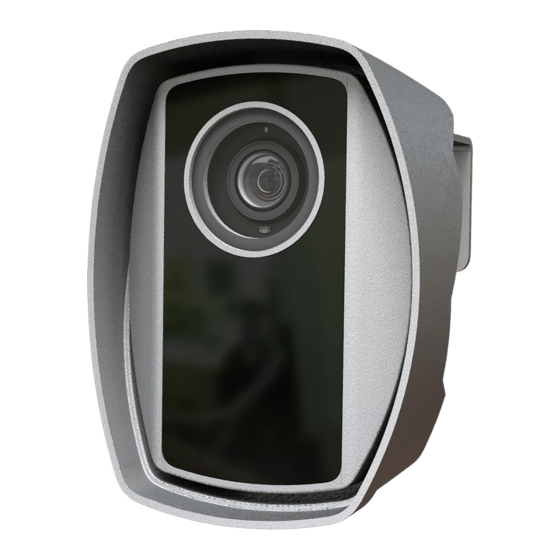

    EINAR USER MANUAL EINAR USER MANUAL with Installation Checklist and other practical tips Document version: 2021-11-11 Firmware version: 1.8.3 Table of Contents Overview ..............................4 1.1. Default IP Address ..........................5 1.2. Link-Local IP Address ........................5 1.3. Finding Cameras ..........................5 AR Device Tool ............................
  • Page 3 Media / Lens ..........................37 7.11. Analytics / Settings ........................38 7.12. Analytics / Detectors ........................38 How to use the Einar camera ........................ 46 8.1. Camera Installation ......................... 46 8.2. Using Einar Camera ........................48 CONTACT INFORMATION ..........................51 Page 3/51 SENDINFO@ADAPTIVERECOGNITION.COM...

  • Page 4: Overview

    EINAR USER MANUAL 1. OVERVIEW The Einar camera has its own web interface through which you can access the camera settings, the LIVE, the PLAYBACK, the EVENTS and the SETTINGS interfaces. It is recommended to use an up-to-date web browser to access the web interface.

  • Page 5: Default Ip Address

    You can find the camera on the network using the DeviceTool. Double-click on the selected camera, and the Einar camera web interface will open in the default browser. While running, the program continuously looks for detectible cameras on the network and displays them in a list with their current IP addresses.

  • Page 6: Ar Device Tool

    EINAR USER MANUAL 2. AR DEVICE TOOL With the AR DeviceTool, you can discover Einar cameras on the local network and upload Firmware, License and Engine files to them. Download the program here: DeviceTool. It runs on Windows operating system.

  • Page 7: Firmware, License And Engine Upload

    EINAR USER MANUAL 2.2. FIRMWARE, LICENSE, AND ENGINE UPLOAD In addition to the camera’s own web interface, you can also use the AR DeviceTool to upload Firmware, License or even Engine for the selected single camera or a group of cameras using Ctrl/Shift.
  • Page 8 EINAR USER MANUAL Previously created user profiles can be edited or deleted using the buttons next to the “+" button. Page 8/51 SENDINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary Adaptive Recognition Singapore...

  • Page 9: Overview Of The Web Interface

    EINAR USER MANUAL 3. OVERVIEW OF THE WEB INTERFACE The following menu items are available on the web interface: 1. LIVE Shows a live view of the camera streams. 2. PLAYBACK Browse recordings on the configured storage device. 3. EVENTS Browse the recorded events on the configured storage device.

  • Page 10: Live

    EINAR USER MANUAL 4. LIVE After login, the interface navigates to the LIVE tab that shows a live feed of the camera streams. 4.1. FULL-SCREEN MODE The camera’s live stream can be displayed on full screen by clicking on the icon located in the image’s bottom-right corner.

  • Page 11: Saving Image

    EINAR USER MANUAL 4.2. SAVING IMAGE Next to the full-screen icon is the Save image icon. By clicking on it, you can save an image of the current live stream with previously selected OSD information. The CTRL + S keyboard shortcut can be used as well.

  • Page 12: Overlay

    EINAR USER MANUAL 4.5. OVERLAY In the middle, at the bottom of the window, is the Overlay button. With it, you can turn on/off the OSD, and you can view the masks of the applied detectors, image information, motion data, etc.

  • Page 13: Playback

    EINAR USER MANUAL 5. PLAYBACK You can access the PLAYBACK interface is accessible if the storage is turned on. By clicking on this tab, the recordings stored on the storage device will be listed. You can then navigate them by clicking on the timeline below the video feed.

  • Page 14: Navigate Among The Recordings

    EINAR USER MANUAL 5.1. NAVIGATE AMONG THE RECORDINGS navigate among recordings using timeline calendar. The timeline is the black bar under the camera image. The gold bands indicate those time intervals where recordings exist. Under this section, the currently selected detectors are located.

  • Page 15: Filtering The Detectors

    EINAR USER MANUAL 5.2. FILTERING THE DETECTORS You can find a list of the configured detectors and events related to them on the right side of the PLAYBACK interface. The events and timeline of each detector can be turned on/off by clicking on the appropriate detector button.

  • Page 16: Exporting The Recordings

    EINAR USER MANUAL 5.3. EXPORTING THE RECORDINGS Video clips can be saved as mp4 files and can be viewed in most modern video player applications. The "Export" button is located in the bottom-right corner of the PLAYBACK interface. By clicking on this button, a dialog box pops up, and two gold arrows appear on the timeline.

  • Page 17: Events

    EINAR USER MANUAL 6. EVENTS You can access the EVENTS interface provided that the storage is turned on. By clicking on this tab, all events recorded by the camera will be listed. You can navigate between the recorded events in the event browser by scrolling through them with your mouse’s wheel.
  • Page 18 EINAR USER MANUAL Hovering the cursor over an event, the detector related to the event is highlighted in the list on the right. Simultaneously, a video clip of the event will be loaded and played automatically. Clicking on an event brings up a detailed view of that event, including a video clip and any related image.
  • Page 19 EINAR USER MANUAL The configured detectors are displayed on the right. By moving the cursor over the detector, the events related to the detector will be highlighted in the event browser. By clicking on the detector, the display of its events can be turned on/off.

  • Page 20: Settings

    EINAR USER MANUAL 7. SETTINGS The SETTINGS page contains all customizable parameters of the camera. 7.1. SYSTEM / STATUS On this interface, you can find a summary of the important data of the camera, the installed detectors, the operating time and the ANPR licenses.

  • Page 21: System / Device

    EINAR USER MANUAL 7.2. SYSTEM / DEVICE On the Device interface, you can do the following: • Modify the name, description and location of the device • Reboot the device remotely • Perform a factory reset (after clicking on the button, the original manufacturer settings are restored except for the network settings) •...
  • Page 22 EINAR USER MANUAL Firmware, ANPR, License update Click [Browse files…] on the field to be modified, then select the Firmware (.ifw), ANPR (.iep) or License (.ukeys) files to be uploaded. Finally, click on the corresponding upload button. The update process can be interrupted by clicking on the [Cancel] button located on the panel showing the upload status.

  • Page 23: System / Network

    EINAR USER MANUAL 7.3. SYSTEM / NETWORK The Network menu item hides the network settings. The IP address assigned to the camera can be static or dynamic. Default DNS: 8.8.8.8 Fallback to static If the device is set to DHCP, the "Fallback to static" option will be accessible. The device will use the configure fallback address when obtaining a new address from a DHCP server fails.

  • Page 24: System / Security

    EINAR USER MANUAL Monitoring The Monitoring tab shows statistics of active media connections (e.g., live feeds, event stream) and lists all in- and outgoing traffic by network adapter. 7.4. SYSTEM / SECURITY In the Users database, you can perform the maintenance of the user data, like: •...
  • Page 25 EINAR USER MANUAL 3. Operator: The operator has the same privileges as a user but can operate the camera zoom and focus (if available). Sessions At Lockout policy, the maximum number of failed login attempts can be adjusted. After reaching the specified number, the device blocks that session.

  • Page 26: System / Storage

    EINAR USER MANUAL 7.5. SYSTEM / STORAGE The settings related to the storage can be performed at Storage. After enabling the storage function, select a device under Storage device where the images, video streams and events are saved. Operation mode Under Operation mode, the storage trigger can be selected.
  • Page 27 EINAR USER MANUAL Recordings before and after activation (seconds) The recording time (in seconds) before and after the events can be regulated with the help of the sliders. Selected detectors It may not be necessary to record at every detector signaling. Thus, the user can select which detector signals should trigger the recording.
  • Page 28 EINAR USER MANUAL Setting the GDS upload Enable the upload to the GDS at "Target", then enter the required data to set the GDS server. The following fields should be defined: • Server: Address (IPv4) of the GDS server •...
  • Page 29 EINAR USER MANUAL Setting the HTTP(S) upload Enable the upload to the HTTP POST at “Target”, then enter the Host URL to set the HTTP event re- ceiver. You can set which data should be uploaded in addition to the event data:...

  • Page 30: System / Io

    EINAR USER MANUAL 7.6. SYSTEM / IO The I/O ports allow communication between the information processing system (in this case, the ca- mera) and the outside world (e.g., a person, computers, alarms, barriers, etc.). The conditions related to the information coming from the outside world to the camera and arriving through the input ports (input signals) can be adjusted by clicking the [Edit] button at the Inputs tab.

  • Page 31: System / Service

    EINAR USER MANUAL 7.7. SYSTEM / SERVICE Webserver • Service port: The service port of the Webserver can be specified by filling in the field. RTSP • Service port: The service port of the RTSP can be specified by filling in the field.

  • Page 32: Media / Image

    EINAR USER MANUAL 7.8. MEDIA / IMAGE On this configuration interface, you can optimize the image quality. Here, the following elements can be fine-tuned: • Brightness: It sets the image brightness. • Brightness control speed: It sets the speed of adaptation to the changing lighting conditions (e.g., how quickly the camera can adapt to the new lighting condition if the light is switched on...
  • Page 33 EINAR USER MANUAL • Max gain: The digital gain cannot be greater than the specified value. • WDR mode: With the Wide Dynamic Range function, you can achieve better image quality if the camera image contains both heavily burned and dark spots. The WDR function can be turned on/off or set to automatic.
  • Page 34 EINAR USER MANUAL Page 34/51 SENDINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic WWW.ADAPTIVERECOGNITION.COM Adaptive Recognition Hungary Adaptive Recognition Singapore...
  • Page 35 EINAR USER MANUAL Presets You can select preset values which are calibrated to different situations. These elements are not ne- cessarily ideal settings for all cases; they are to be considered as guidelines. They generally show acceptable image settings for certain scenarios.

  • Page 36: Media / Video

    EINAR USER MANUAL 7.9. MEDIA / VIDEO When clicking on the Video menu item, the functions related to the video encoders are displayed. Above these, the live stream of the camera remains visible. On this interface, the settings (name, resolution, frame rate, etc.) of Stream 1 and Stream 2 can be performed separately.

  • Page 37: Media / Lens

    EINAR USER MANUAL Encoders You can adjust the H.264 and the MJPEG versions of the streams separately, alongside defining the quality of the thumbnail images. • Target bitrate (kbps): The bandwidth size can be adjusted. • I-frame interval (GOP): The density of the I frames can be specified.

  • Page 38: Analytics / Settings

    EINAR USER MANUAL 7.11. ANALYTICS / SETTINGS Settings You can use the Settings tab to set the resolution and quality of the images – specified in Stream1 or Stream2 {MEDIA / Video} – to be assigned to events when uploading via API, GDS or HTTP.
  • Page 39 EINAR USER MANUAL 7.12.1. Motion engine and general use of masks The Motion engine is a fundamental engine that regulates motion-based storage. It cannot be deleted. The Motion engine does not induce events; it is responsible for the setting of the motion-based recordings.
  • Page 40 EINAR USER MANUAL The mask can be deleted by clicking on the [Delete selection] button located under the live stream: Sensitivity: It sets the sensitivity of the motion engine. Trigger threshold: You can use it to define the sufficient level of motion in the image to trigger the motion engine.
  • Page 41 EINAR USER MANUAL ANPR detector and ANPR engine The ANPR detector and the ANPR engine jointly perform the reading of license plates. Both the detector and the engine must be present on the camera to operate the system. They are only available for cameras designed to read license plates.
  • Page 42 EINAR USER MANUAL In the case of Carmen Cloud, the license plate recognition is not processed in the camera. Instead, images with license plates are selected in the camera and sent to the engine in the cloud for license plate recognition. A stable internet connection and a Carmen Cloud subscription are required for the license plate recognition to work in the cloud.
  • Page 43 EINAR USER MANUAL 7.12.4. ANPR detector The ANPR detector is responsible for transmitting the events. A factory-set and non-erasable detector, the Built-in ANPR detector, is always present in the camera and generates the events of the license plate numbers detected by the ANPR Engine as soon as the camera is switched on.
  • Page 44 EINAR USER MANUAL 7.12.5. IO detector The IO detector detects a signal at the camera contact input and, thus, an event is generated when the input is activated. Note that no license plate recognition is performed when the input is activated.
  • Page 45 EINAR USER MANUAL 7.12.7. Stolen Object detector This detector can be used to trigger an event when an object to be monitored moves. In addition to the settings below, you also need to mask the object in the image. The mask should surround the object to be monitored in such a way it slightly overlaps it.

  • Page 46: How To Use The Einar Camera

    EINAR USER MANUAL 8. HOW TO USE THE EINAR CAMERA This chapter gives you a quick overview of using Einar and what to look out for when installing and operating the camera. 8.1. CAMERA INSTALLATION 1. Mount the camera as follows (Please refer to the...
  • Page 47 EINAR USER MANUAL the characters on Italian license plates are smaller than those of countries geographi- cally further north. The easiest way to check the character size of a license plate is to display the "ANPR Status" OSD layer in Live View and look at the "Avg. char height:" to see the character size {Overlay}.

  • Page 48: Using Einar Camera

    The camera itself manages an access point. It activates its output when it recognizes the license plates registered in the camera to give an opening command, e.g., to a barrier. Einar stores events, which can be retrieved, downloaded and exported via the camera's own web interface. In addition to local storage on an SD card, it is also possible to configure an optional HTTP or GDS server for event upload.
  • Page 49 The camera itself manages an access point. It activates its output when it recognizes the number plates registered in the camera to give an opening command, e.g., to a barrier. Einar stores events, which can be retrieved, downloaded and exported via the camera's own web interface. In addition to local storage on an SD card, it is also possible to configure an optional HTTP or GDS server for event upload.
  • Page 50 The necessary devices and the most important, specific settings are as follows: GPIO cable kit (if necessary) Einar camera without ANPR License & Engine Einar FW at least v1.8.2 ParkIT System software and License, Carmen NNC, License, Engine and server PC Page 50/51 SENDINFO@ADAPTIVERECOGNITION.COM...

  • Page 51: Contact Information

    EINAR USER MANUAL Contact Information Headquarters: Service Address: Adaptive Recognition, Hungary Inc. Adaptive Recognition, Hungary Inc. Alkotás utca 41. Ipari Park HRSZ1113/1 HU-1123 Budapest, Hungary HU-2074 Perbál, Hungary Phone: +36 1 201 9650 Phone: +36 1 2019650 Fax: +36 1 201 9651 E-mail: rmarequest@adaptiverecognition.com...
