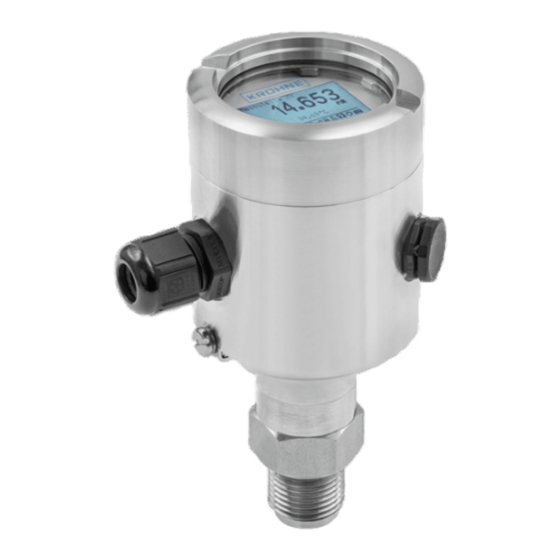

OPTIBAR PM 3050
Compact Pressure Transmitter
Installation, assembly, start-up and maintenance may only be performed by appropriately
trained personnel.
For use in hazardous areas, special codes and regulations are applicable which are supplied in
a separate document that describes all hazardous area relevant information.
The responsibility as to the suitability, intended use and corrosion resistance of the used
materials against the measured fluid of this device rests solely with the operator.
For complete documentation (manuals, supplementary manuals, data sheets and certificates)
please refer to www.krohne.com/Downloads.
1 Installation
WARNING!
Install the device only when depressurized and without power!
Gas
02/2019 - 4007291201 - QS OPTIBAR PM 3050 R01 en
Liquid
Connections acc. to EN 837
For initial set up, we strongly recommend the use of the relevant manuals in addition!
Steam vertical
LEVEL
Process connections
NPT connections
hex 27
G1/2": ~50 Nm
1/2" NPT: ~70 Nm
Steam horizontal
NPT-F connections
hex 27
hex 27
1/2" NPT-F: ~70 Nm
