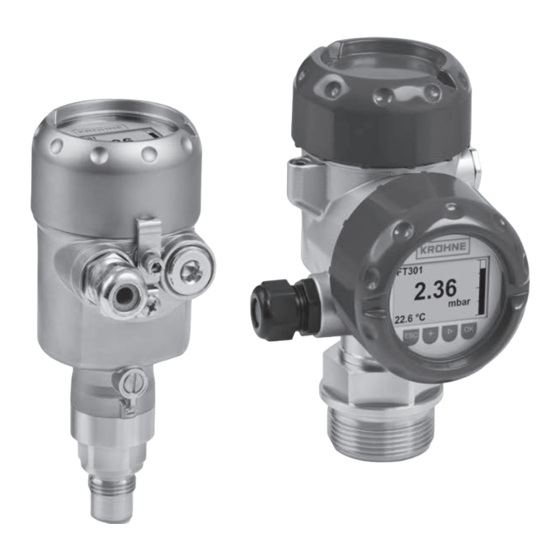

Page 1 ATEX: II 1/2G, 2G Ex db ia IIC T6…T1 Ga/Gb, Gb IECEx: Ex db ia IIC T6...T1 Ga/Gb, Gb Housing Aluminium: single chamber, double chamber Stainless steel (precision casting): single chamber, double chamber © KROHNE 11/2020 - 4004172603 - AD OPTIBAR5060 Exdbia R04 en...
Page 2: Table Of Contents
CONTENTS OPTIBAR 5060 1 Safety instructions 1.1 General notes ........................3 1.2 EU conformity ........................3 1.3 Approval according to the IECEx scheme ................ 4 1.4 Safety instructions......................4 2 Device description 2.1 Description of device ......................5 2.2 Marking..........................5 2.2.1 Marking for ATEX ........................
Page 3: Safety Instructions
SAFETY INSTRUCTIONS OPTIBAR 5060 1.1 General notes These safety instructions are valid for the pressure transmitter OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with integrated electronics Z (4…20 mA), H (4…20 mA/HART), A ® (4…20 mA/HART with SIL qualification), P (Profibus PA), F (Foundation Fieldbus), S, T (electronic differential pressure measurement) without additional electronics (X) and OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with integrated electronics H (4…20 mA/HART) or A (4…20...
Page 4: Approval According To The Iecex Scheme
SAFETY INSTRUCTIONS OPTIBAR 5060 1.3 Approval according to the IECEx scheme Conformity with IECEx standards was tested in accordance with the "IECEx Certification Scheme for Explosive Atmospheres" according to IEC 60079-0, IEC 60079-1, IEC 60079-11 and IEC 60079-26. The number of the IEC certificate is: IECEx TUN 18.0007 X...
Page 5: Device Description
DEVICE DESCRIPTION OPTIBAR 5060 2.1 Description of device The pressure transmitter of the OPTIBAR 5060 series is designed to measure the pressure of vaporous, gaseous and liquid media. 2.2 Marking 2.2.1 Marking for ATEX The marking of the entire device is on the housing, where the following identification plate can be found.
Page 6: Iecex Marking
9,6...35VDC 2022 IECEx TUN 18.0007 X Ex db ia IIC T6...T1 Ga/Gb, Gb Figure 2-2: Example for an IECEx nameplate for an OPTIBAR 5060 1 Observe the instructions 2 Hardware version 3 Product name and type code 4 Permissible temperature range...
Page 7: Protection Types
DEVICE DESCRIPTION OPTIBAR 5060 Category 2G equipment (EPL-Ga equipment) The devices are installed in hazardous areas requiring equipment category 2G. 2.5 Protection types The pressure transmitter is designed in protection type flameproof enclosure with internal intrinsically safe circuits "db ia" according to EN 60079-1/EN 60079-11 and IEC 60079-1 / IEC 60079-11, however the device does NOT require an intrinsically safe supply.
Page 8: Ambient Temperature / Temperature Classes
DEVICE DESCRIPTION OPTIBAR 5060 2.6 Ambient temperature / temperature classes OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with integrated electronics Z (4…20 mA), ® H (4…20 mA/HART) or A (4…20 mA/HART with SIL qualification), P (Profibus PA), F (Foundation Fieldbus), S, T (electronic differential pressure measurement).
Page 9 DEVICE DESCRIPTION OPTIBAR 5060 Category 2G (EPL Gb) equipment OPTIBAR PM 5060 with piezoresistive or strain gauge measuring cell without cooling fins Temperature class Ambient temperature range at the electronics (zone Media temperature range at the sensor (sensor; zone 0)
Page 10: Temperature Derating
DEVICE DESCRIPTION OPTIBAR 5060 2.6.1 Temperature derating INFORMATION! Valid for use as equipment of category 2G or zone 1. OPTIBAR PC 5060 (130°C / 266°F) Figure 2-3: Temperature derating 1 Ambient temperature of housing 2 Process temperature OPTIBAR PC 5060 (150°C / 302°F)
Page 11 DEVICE DESCRIPTION OPTIBAR 5060 OPTIBAR PM 5060 Figure 2-5: Temperature derating 1 Ambient temperature housing 2 Process temperature 3 Metallic-ceramic measuring cell, process temperature max. 150°C / 302°F 4 Metallic-ceramic measuring cell, process temperature max. 180°C / 356°F 5 Metallic-ceramic measuring cell, process temperature max. 200°C / 393°F 6 Piezoresistive or strain gauge measuring cell, process temperature without cooling fins max.
Page 12: Electrical Data
DEVICE DESCRIPTION OPTIBAR 5060 2.7 Electrical data ® ® 2.7.1 With electronics Z (4…20 mA), H (4…20 mA/HART ), A (4…20 mA/HART with SIL qualification) ® OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with electronics Z (4…20 mA), H (4…20 mA/HART ®...
Page 13: With Electronics P (Profibus Pa), F (Foundation Fieldbus)
DEVICE DESCRIPTION OPTIBAR 5060 2.7.2 With electronics P (Profibus PA), F (Foundation Fieldbus) OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with electronics P (Profibus PA), F (Foundation Fieldbus), version with single chamber housing A, V • Supply and signal circuit: = 9...32 VDC (Terminals 1[+], 2[-] in electronics •...
Page 14: With Electronics H (4
DEVICE DESCRIPTION OPTIBAR 5060 ® ® 2.7.4 With electronics H (4…20 mA/HART ) or A (4…20 mA/HART with SIL qualification and additional electronics Z (second current output) ® OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with electronics H (4…20 mA/HART ® A (4…20 mA/HART...
Page 15: Installation
INSTALLATION OPTIBAR 5060 3.1 Installation CAUTION! The manufacturer is not liable for any damage resulting from improper use or use other than the intended purpose. This applies in particular to hazards due to insufficient corrosion resistance and suitability of the materials in contact with product.
Page 16: Special Conditions
SPECIAL CONDITIONS OPTIBAR 5060 4.1 Protection against static electricity The OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 in versions with electrostatically chargeable plastic parts, such as e.g. metal housing with inspection window, with plastic-coated sensors, suspension cable or suspension hose, distance tube or connection cable with the remote version, a caution label points out the safety measures that must be taken with regard to electrostatic charges during operation.
Page 17: Mounting / Setup
SPECIAL CONDITIONS OPTIBAR 5060 4.6 Mounting / setup The OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 must be mounted such that the sensor is effectively secured against touching the tank wall, under consideration of other tank installations and flow conditions in the tank. This applies especially to suspension pressure transmitters and versions with distance tube lengths over 3 m.
Page 18 SPECIAL CONDITIONS OPTIBAR 5060 Unused openings must be sealed according to EN 60079-1 or IEC 60079-1 section 11.9. The cover of the "Ex-db" electronics compartment has the warning label "Do not open when an explosive gas atmosphere is present". Single chamber housing with "Ex-db" electronics compartment Figure 4-2: Single chamber housing with "Ex-db"...
Page 19: Mounting Of The Optibar * 5060 Vgk5/6/D*A/W/V E/Z/6/7 With Remote Housing
SPECIAL CONDITIONS OPTIBAR 5060 4.8 Mounting of the OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 with remote housing With the version with remote housing of the pressure transmitter OPTIBAR * 5060 VGK5/6/D*A/W/V E/Z/6/7 the equipotential bonding must be provided in the complete mounting area of the connection cable between electronics housing and probe housing.
