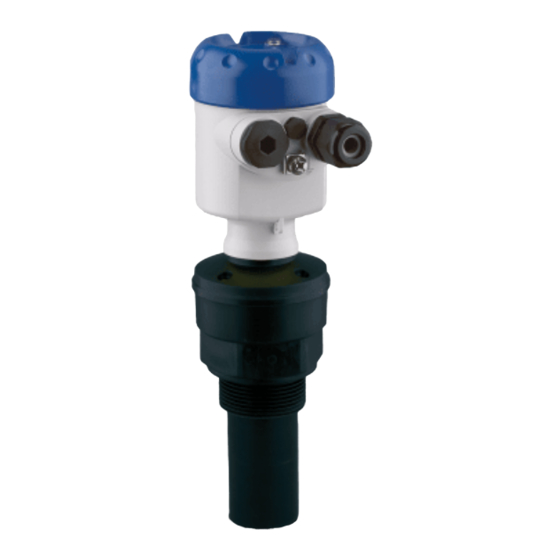

OPTISOUND 3020 C
Handbook
Ultrasonic Level Transmitter
Profibus PA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISOUND 3020 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KROHNE OPTISOUND 3020 C

Summary of Contents for KROHNE OPTISOUND 3020 C

  • Page 1 OPTISOUND 3020 C Handbook Ultrasonic Level Transmitter Profibus PA...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................41 Dismount..........................42 Dismounting steps......................42 Disposal ......................... 42 Supplement ..........................43 Technical data ........................ 43 Device communication Profibus PA ................46 Dimensions ........................50 Trademark ........................51 OPTISOUND 3020 C • Profibus PA...
  • Page 3 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2019-03-12 OPTISOUND 3020 C • Profibus PA...

  • Page 4: About This Document

    The dot set in front indicates a list with no implied sequence. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. OPTISOUND 3020 C • Profibus PA...

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use OPTISOUND 3020 C is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter " Product description".

  • Page 6: Eu Conformity

    English language. Installations in the US shall comply with the relevant requirements of the National Electrical Code (ANSI/NFPA 70). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code. OPTISOUND 3020 C • Profibus PA...

  • Page 7: Product Description

    • Housing lid with integrated display and adjustment module (optional) The components are available in different versions. Fig. 1: OPTISOUND 3020 C, version with plastic housing Housing lid with integrated display and adjustment module (optional) Housing with electronics 3 Process fitting with transducer...

  • Page 8: Principle Of Operation

    Principle of operation Application area OPTISOUND 3020 C is an ultrasonic sensor for continuous level measurement. It is suitable for liquids and solids in virtually all indus- tries, particularly in the water and waste water industry.
  • Page 9 Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. OPTISOUND 3020 C • Profibus PA...

  • Page 10: Mounting

    The reference plane for the measuring range is the lower edge of the Reference plane for measuring range transducer. Make sure that a minimum distance from the reference plane - the so-called dead zone, in which measurement is not possible - is OPTISOUND 3020 C • Profibus PA...
  • Page 11 C. Low pressure or vacuum does, however, damp the ultrasonic pulses. This influences the measuring result, particularly if the level is very low. With pressures under -0.2 bar (-20 kPa) you should use a different measuring principle, e.g. radar or guided radar (TDR). OPTISOUND 3020 C • Profibus PA...

  • Page 12: Mounting Instructions

    4 Mounting Mounting instructions Screwing in Screw OPTISOUND 3020 C into the mounting socket with an ap- propriate spanner applied to the hexagon of the process fitting. Max. torque see chapter "Technical data". Warning: The housing must not be used to screw the instrument in! Applying tightening force can damage internal parts of the housing.
  • Page 13 Fig. 7: Recommended socket mounting If the reflective properties of the medium are good, you can mount OPTISOUND 3020 C on sockets which are higher than the length of the transducer. You will find recommended values for socket heights in the following illustration.
  • Page 14 Make sure when planning your measuring site that the ultrasonic signals have a "clear view" to the measured product. In case of existing vessel installations, a false signal suppression should be carried out during setup. OPTISOUND 3020 C • Profibus PA...
  • Page 15 Fig. 12: Agitators Do not mount the instruments in or above the filling stream. Make sure Inflowing medium that you detect the product surface, not the inflowing product. OPTISOUND 3020 C • Profibus PA...
  • Page 16 If there are strong air currents in the vessel, e.g. due to strong winds in outdoor installations or air turbulence, e.g. by cyclone extraction you should mount OPTISOUND 3020 C in a standpipe or use a differ- ent measuring principle, e.g. radar or guided radar (TDR).
  • Page 17 Fig. 14: Standpipe in the tank Vent hole: ø 5 … 10 mm (0.197 … 0.394 in) OPTISOUND 3020 C can be used from tube diameters of 50 mm (1.969 in). Avoid large gaps and thick welding joints when connecting the tubes.
  • Page 18 Installation of the sensor at the inlet side • Installation in the centre of the flume and vertical to the liquid surface • Distance to the Venturi flume • Min. distance of the sensor to max. storage level OPTISOUND 3020 C • Profibus PA...

  • Page 19: Connecting To Power Supply

    In the connection box or T-distributor, the screen of the short stub to the sensor must not be connected to ground potential or to another cable screen. The cable screens to the power supply unit and to the OPTISOUND 3020 C • Profibus PA...

  • Page 20: Connection Procedure

    6. Lift the opening levers of the terminals with a screwdriver (see following illustration) 7. Insert the wire ends into the open terminals according to the wir- ing plan Fig. 17: Connection steps 6 and 7 OPTISOUND 3020 C • Profibus PA...

  • Page 21: Wiring Plan, Single Chamber Housing

    Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-ia version. Housing overview Fig. 18: Material versions, single chamber housing Plastic Aluminium Stainless steel Filter element for air pressure compensation OPTISOUND 3020 C • Profibus PA...

  • Page 22: Wiring Plan, Double Chamber Housing

    I 2 C Fig. 19: Wiring plan - single chamber housing Voltage supply, signal output Wiring plan, double chamber housing The following illustrations apply to the non-Ex as well as to the Ex-ia version. OPTISOUND 3020 C • Profibus PA...
  • Page 23 I 2 C 5 6 7 8 Fig. 21: Electronics compartment, double chamber housing Internal connection cable to the connection compartment Spring loaded terminals for display and adjustment module Plug connector for service interface OPTISOUND 3020 C • Profibus PA...

  • Page 24: Switch-On Phase

    Fig. 23: Wiring plan - double chamber housing Voltage supply, signal output Switch-on phase Switch-on phase After OPTISOUND 3020 C is connected to voltage supply or after voltage recurrence, the instrument carries out a self-check for approx. 30 seconds. The following steps are carried out: •...

  • Page 25: Set Up With The Display And Adjustment Module

    Fig. 24: Insert display and adjustment module in the single chamber housing Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. OPTISOUND 3020 C • Profibus PA...

  • Page 26: Adjustment System

    [OK] will not be saved. Setup steps Address setting Before starting the real parameter adjustment of a Profibus PA sen- sors, first of all the address setting must be carried out. A detailed OPTISOUND 3020 C • Profibus PA...
  • Page 27 These settings can be made ahead of time without the instrument having to be installed. Basic adjustment - Min. Proceed as follows: adjustment 1. Move from the measured value display to the main menu by pushing [OK]. OPTISOUND 3020 C • Profibus PA...
  • Page 28 (with solids). To adapt the sensor to these different conditions, you should first select "Liquid" or "Solid". Medium Liquid With solids, you can also choose between "Powder/Dust", "Granular/ Pellets" or "Ballast/Pebbels". OPTISOUND 3020 C • Profibus PA...
  • Page 29 " Display". Linearisation curve Linear Enter the requested parameters via the appropriate keys, save your settings and jump to the next menu item with the [->] key. OPTISOUND 3020 C • Profibus PA...
  • Page 30 PV (Primary Value): Linearised percentage value • PA-Out (value after passing the function block): PA output • Temperature In the menu item "Display" you can define which value should be indicated on the display. OPTISOUND 3020 C • Profibus PA...
  • Page 31 Measurement reliability Sensor status Diagnosis - Curve selec- With ultrasonic sensors, the "Echo curve" represents the signal tion strength of the echoes over the measuring range. The unit of signal OPTISOUND 3020 C • Profibus PA...
  • Page 32 A false echo storage detects and marks these false echoes, so that they are no longer taken into account for the level measurement. A false echo memory OPTISOUND 3020 C • Profibus PA...
  • Page 33 Service - Extended set- The menu item "Extended setting" offers the possibility to optimise ting OPTISOUND 3020 C for applications in which the level changes very quickly. To do this, select the function "Quick level change > 1 m/min.". Extended setting quick level change >...
  • Page 34 3. Set the requested numerical value with [+] and [->]. 4. Push [OK] The simulation is now running, with 4 … 20 mA/HART a current is output and with Profibus PA or Foundation Fieldbus a digital value. OPTISOUND 3020 C • Profibus PA...
  • Page 35 English • Français • Espanõl • Pycckuu • Italiano Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware. Temperature only with pressure transmitters and ultrasonic sensors. OPTISOUND 3020 C • Profibus PA...
  • Page 36 The instrument is delivered with the PIN set to 0000. Activate permanently? Only the following functions are permitted with activated PIN: • Select menu items and show data • Read data from the sensor into the display and adjustment module OPTISOUND 3020 C • Profibus PA...

  • Page 37: Menu Schematic

    Sensor details, e.g. approval, process fitting, seal, measuring cell, measuring range, electronics, housing, cable entry, plug, cable length etc. Sensor characteristics Display now? Menu schematic Information: Depending on the version and application, the highlighted menu windows may not always be available. OPTISOUND 3020 C • Profibus PA...
  • Page 38 Peak value indicator Measurement reliability Curve selection Echo curve Distance min.: 0.580 m(d) 36 dB Dist. max.: 16.785 m(d) Device status Echo curve Presentation of the echo curve T-min.: 30.6 °C T-min.: 4.5 °C OPTISOUND 3020 C • Profibus PA...

  • Page 39: Saving The Parameterisation Data

    The data remain permanently stored there even if the sensor supply fails. The proce- dure is described in menu item " Copy sensor data". OPTISOUND 3020 C • Profibus PA...

  • Page 40: Maintenance And Fault Rectification

    Measured value on the The menu item "Display - Check values and correct, if necessary display and adjustment Display value" is not set to module does not corre- "PA-Out" spond to the value in the OPTISOUND 3020 C • Profibus PA...

  • Page 41: Exchanging The Electronics Module

    If there is no electronics module available on site, one can be ordered from the Krohne agency serving you. How to proceed if a repair is necessary If it is necessary to repair the instrument, please contact the responsi- ble Krohne agency. OPTISOUND 3020 C • Profibus PA...

  • Page 42: Dismount

    Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. OPTISOUND 3020 C • Profibus PA...

  • Page 43: Supplement

    1 s (dependent on the parameter setting) Sensor address 126 (default setting) Current value 10 mA, ±0.5 mA Damping (63 % of the input variable) 0 … 999 s, adjustable Glass (with Aluminium and stainless steel precision casting housing) OPTISOUND 3020 C • Profibus PA...
  • Page 44 (26.247 ft) (3.28 ft) (6.562 ft) -10 mm (-0.394 in) -16 mm (-0.63 in) Fig. 27: Deviation OPTISOUND 3020 C Reference conditions to measurement accuracy (according to DIN EN 60770-1) Reference conditions according to DIN EN 61298-1 Ʋ Temperature +18 … +30 °C (+64 … +86 °F) Ʋ Relative humidity 45 …...
  • Page 45 9 … 32 V DC Operating voltage U with lighting 12 … 32 V DC switched on Power supply by DP/PA segment coupler Max. number of sensors Tested according to the guidelines of German Lloyd, GL directive 2. OPTISOUND 3020 C • Profibus PA...

  • Page 46: Device Communication Profibus Pa

    GSD file, PNO provides also a general so-called profile-specific GSD file. For OPTISOUND 3020 C you have to use the general GSD file "PA139701.GSD". If the general GSD file is used, the sensor must be set to the profile-specific ident number via the DTM software. By default, the sensor operates with the manufacturer-specific ID number.
  • Page 47 PA-Out Select additional cyclic value Fig. 28: OPTISOUND 3020 C: Block diagram with AI (PA-OUT) value and additional cyclical value TB Transducer Block FB Function Block Module of the PA sensors For the cyclic data traffic, OPTISOUND 3020 C provides the following modules: •...
  • Page 48 The status "Measured value OK" is coded as 80 (hex) (Bit7 = 1, Bit6 … 0 = 0). The measured value is transferred as a 32 bit floating point number in the IEEE-754 format. OPTISOUND 3020 C • Profibus PA...
  • Page 49 Hi-Alarm visory alarm - high limited 0 x 8d good (non-cascade) - active crit- Lo-Lo-Alarm ical alarm - low limited 0 x 8e good (non-cascade) - active crit- Hi-Hi-Alarm ical alarm - high limited OPTISOUND 3020 C • Profibus PA...

  • Page 50: Dimensions

    ø 50mm ") ø 74mm ") Fig. 32: OPTISOUND 3020 C Dead zone: 0.4 m (1.312 ft) Measuring range: with liquids up to 8 m (26.25 ft), with solids up to 3.5 m (11.48 ft) OPTISOUND 3020 C • Profibus PA...

  • Page 51: Trademark

    9 Supplement Trademark All the brands as well as trade and company names used are property of their lawful proprietor/ originator. OPTISOUND 3020 C • Profibus PA...
  • Page 52 • Engineering, commissioning, calibration, maintenance and train- ing services Head Office KROHNE Messtechnick GmbH Ludwig-Krohne-Straße 5 47058 Duisburg (Germany) Tel.: +49 (0) 203 301 0 Tel.: +49 (0) 203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
