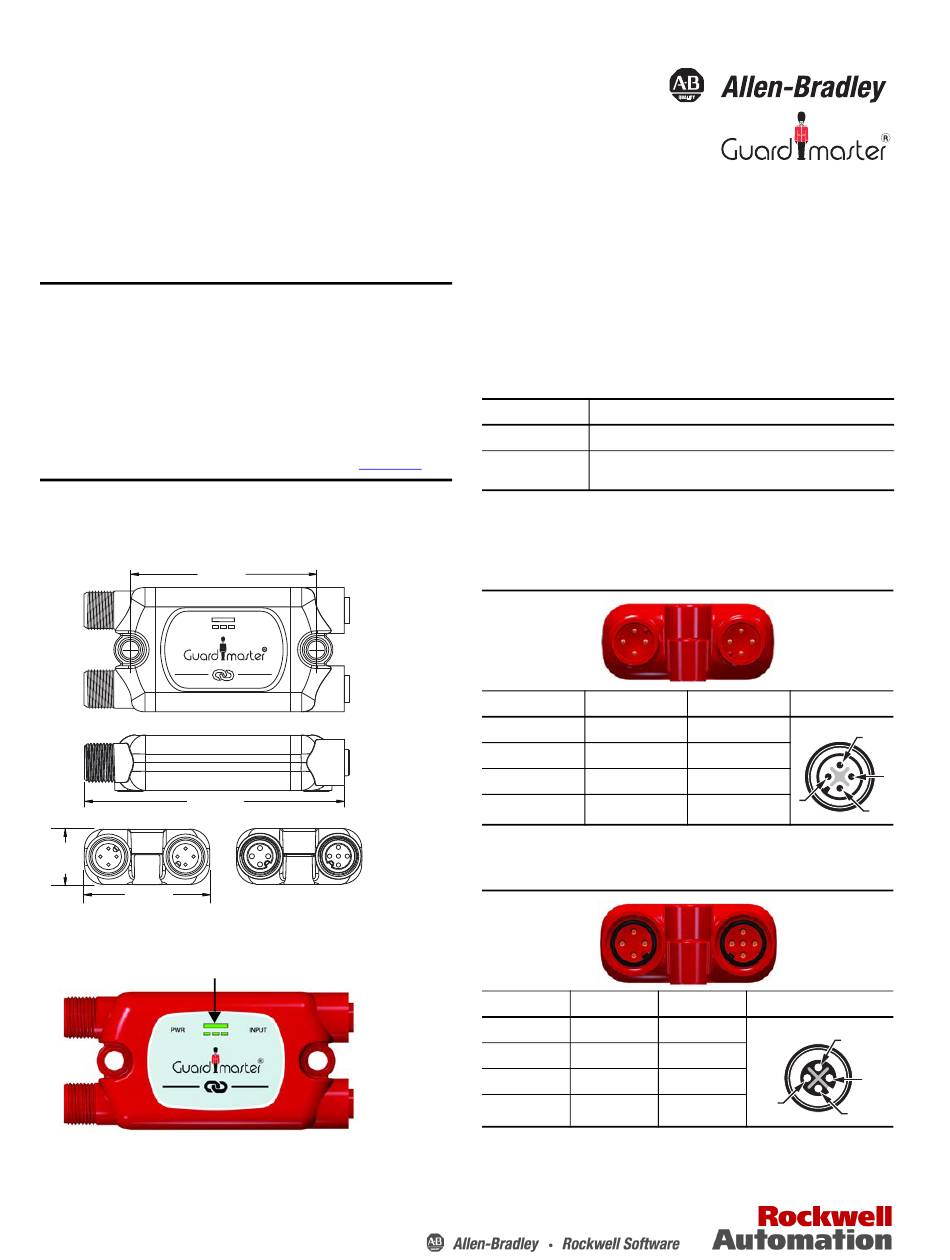

Rockwell Automation Allen-Bradley Guardmaster GuardLink 440S-PF5D4 Installation Instructions

Installation Instructions
Original Instructions

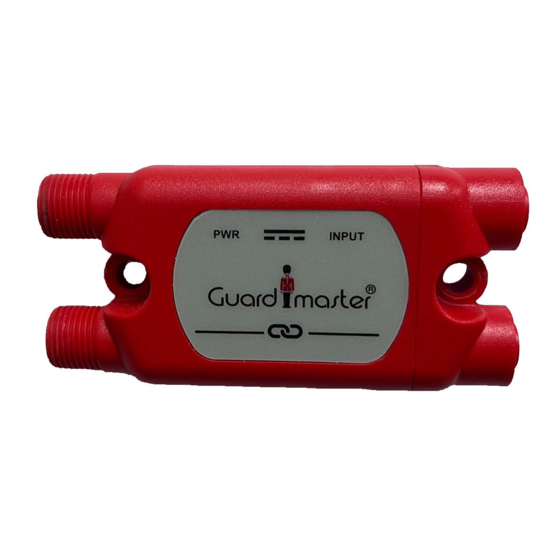

GuardLink Passive Power Tap
Catalog Number 440S-PF5D4
IMPORTANT • Device input port (J3) must either have a GuardLink® device or a
Cat. No. 898D-41KU-DM2 shorting plug attached.
• Do not use more than seven Passive Power Taps on a link to avoid
exposure to potentially harmful voltage.
• Product is fused to avoid damage from miswiring. We
recommend using Allen-Bradley® patchcords to connect devices.
• Connect only one power supply to earth ground. You must
choose the first power supply in the link.
• Do not install tap while system is powered.
• For voltage drop calculation, see publication 440R-UM015.

Approximate Dimensions

Figure 1 - [mm (in.)]
57 (2.24)
PWR
79.64 (3.13)
17
(0.67)
38.5 (1.51)
Figure 2 - Front View
Power Status
Indicator
Power In
J4
J1
Link In
INPUT
To GuardLink
Enabled Device
J3
J2
Link Out

Mounting Information

Do not over torque the mounting hardware. M5 fasteners are
recommended.
Table 1 - Torque Specifications
Attribute 440S-PF5D4
Mounting hardware 2.20 N•m (19.95 in•lb)
Finger tighten the cordset connections and then tighten an
Connector
additional 1/4...1/2 turn using pliers.

Device Connection

Table 2 - J1 — 4-pin Micro M12 Male (Link In)
Pin No. Wire Color
1 Brown
2 White
3 Blue
4 Black
Table 3 - J2 — 4-pin Micro M12 Female (Link Out)
J2
Pin No. Wire Color
1 Brown
2 White
3 Blue
4 Black
J1
Function Pinouts
24V DC
GuardLink Safety
GND
1
GuardLink CLU
Function Pinouts
24V DC
4
GuardLink Safety
GND
3
GuardLink CLU
4
3
2
1
2
