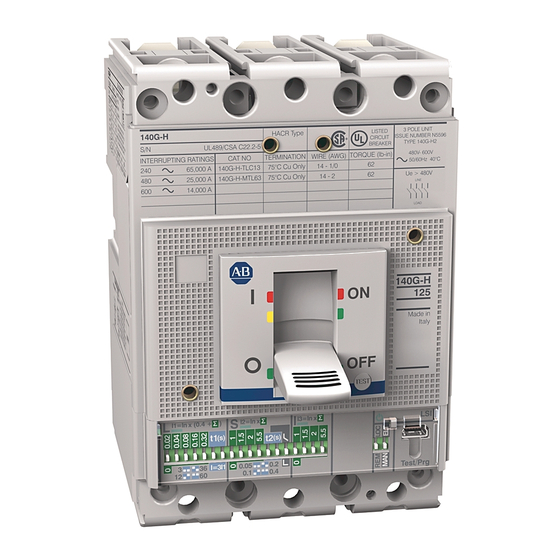

Rockwell Automation Allen-Bradley 140G Installation Instruction

Rockwell Automation Allen-Bradley 140G Installation Instruction

Flange cable operator
Hide thumbs Also See for Allen-Bradley 140G:

Advertisement

Quick Links

140G-G-F____B, 140G-H-F____B, 140G-I-F____B, 140G-J-F____B, 140G-K-F____B
Installation instruction for Flange Cable Operator for 140G-G through K
Istruzioni di installazione
Installationsanleitung
Instructions pour l'installation
Instrucciones de instalación
Installation - Installazione - Instalación
Instalação -
WARNING:
To prevent electrical shock, disconnect from power source before
installing or servicing. Install in suitable enclosure. Keep free from contaminants.
(Follow NFPA70E requirements).
AVVERTENZA: Per prevenire infortuni, togliere tensione prima dell'installazione o
manutenzione. Installare in custodia idonea. Tenere lontano da contaminanti.
WARNUNG:
Vor Installations- oder Servicearbeiten Stromversorgung zur
Vermeidung von elektrischen Unfällen trennen. Die Geräte müssen in einem
passenden Gehäuse eingebaut und gegen Verschmutzung geschützt werden.
AVERTISSEMENT:
Avant le montage et la mise en service, couper l'alimentation
secteur pour éviter toute décharge. Prévoir une mise en coffret ou armoire appropriée.
Protéger le produit contre les environnements agressifs.
ADVERTENCIA: Desconéctese de la corriente eléctrica, antes de la instalación o
del servicio, a fin de impedir sacudidas eléctricas. Instálelo en una caja apropiada.
Manténgalo libre de contaminantes.
ATENÇÃO: Para evitar choques, desconectar da corrente elétrica antes de fazer a
instalação ou a manutenção. Instalar em caixa apropriada. Manter livre de
contaminantes.

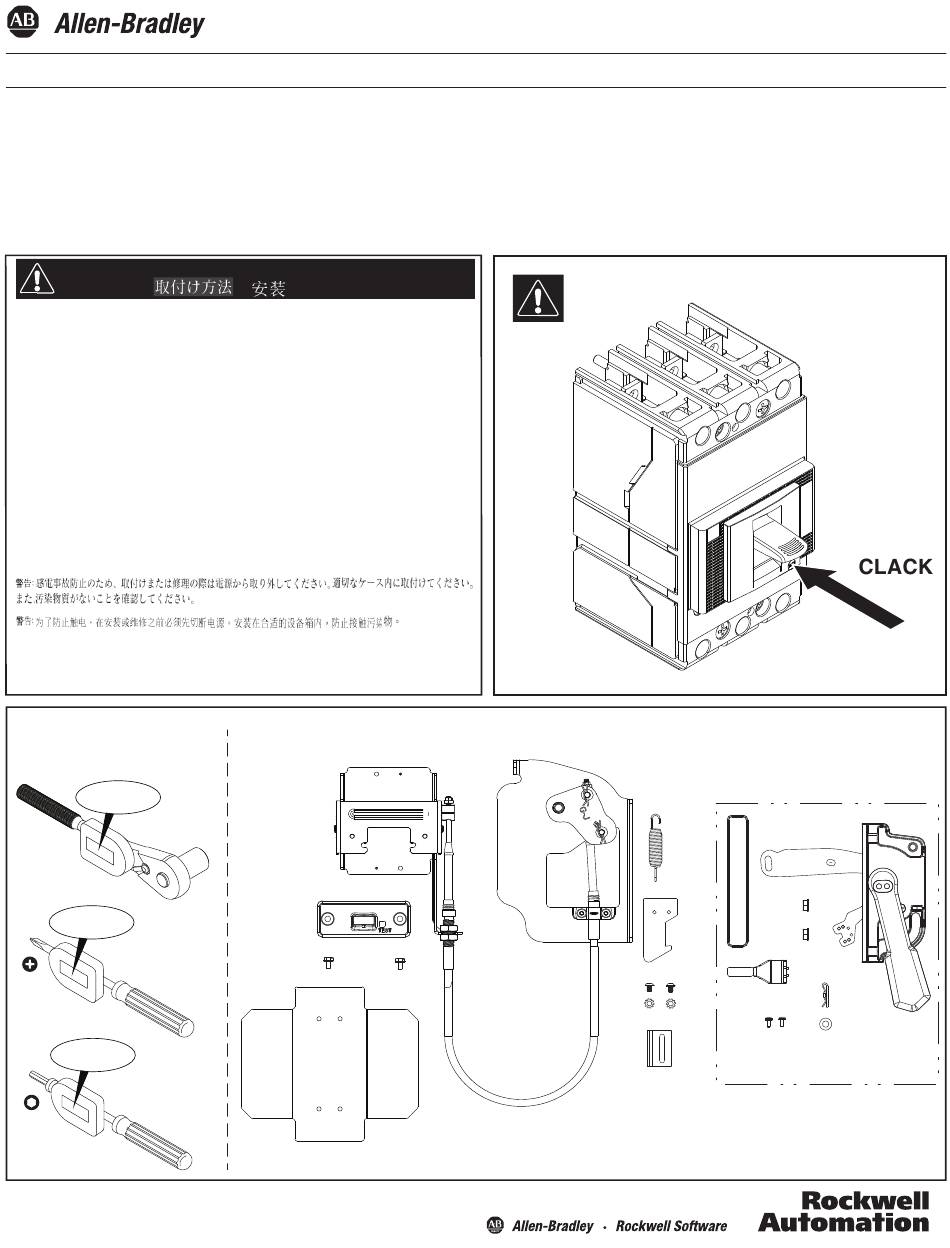

Tools
Needed:
xx lb-in
xx Nm
5/16" & 7/16"
xx lb-in
xx Nm
#2 Phillips
xx lb-in
xx Nm
1/8" Allen
PN-504043
DIR 10003537493 (Version 03)
-
Bul. 140G/140MG

Advertisement

loading
Need help?

Need help?

Do you have a question about the Allen-Bradley 140G and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockwell Automation Allen-Bradley 140G

  • Page 1 Bul. 140G/140MG 140G-G-F____B, 140G-H-F____B, 140G-I-F____B, 140G-J-F____B, 140G-K-F____B Installation instruction for Flange Cable Operator for 140G-G through K Istruzioni di installazione Installationsanleitung Instructions pour l’installation Instrucciones de instalación Installation - Installazione - Instalación Instalação - WARNING: To prevent electrical shock, disconnect from power source before installing or servicing.
  • Page 2 140G-G Shown 3" Min. Bend Radius U >0V > 1.0" (25 mm) 6" Min. Bend Dia. PN-504043 DIR 10003537493 (Version 03)
  • Page 3 Insulator Installation Press PN-504043 DIR 10003537493 (Version 03)
  • Page 4 140G-G, 140G-H, 140G-I, 140G-J Correct Assembly Orientation 1.378 in 0.984 in (35.0 mm) (25.0 mm) 4.213 in 4.803 in (107.0 mm) (122.0 mm) 1.378 in 1.181 in (35.0 mm) (30.0 mm) 10 - 15 lb-in 4.370 in (1.2 - 1.7 Nm) 5.472 in (111.0 mm) (139.0 mm)
  • Page 5 Install Gasket Position Lever Handle Install Bellcrank and Handle Hand tighten PN-504043 DIR 10003537493 (Version 03)
  • Page 6: Tighten Nuts

    Install Pin in Slot Assemble Washer and Hitch Pin Tighten Nuts Install Defeater Lever 30 - 40 lb-in (3.4 - 4.5 Nm) 7 - 11 lb-in (0.8 - 1.2 Nm) 7/16” DEFEATER LEVER #2 PHILLIPS PN-504043 DIR 10003537493 (Version 03)
  • Page 7 Install Toggle Plate 140G-G Shown 10 - 15 lb-in (1.2 - 1.7 Nm) 5/16" Install Spring PN-504043 DIR 10003537493 (Version 03)
  • Page 8 Base Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Product certificates are located in the Rockwell Automation Literature Library: http://www.rockwellautomation.com/global/literature-library/overview.page. Publication No.: 140G-CT009. Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
