Installation Instructions
Original Instructions
Kinetix 5700 DC-bus Link Kits
Catalog Numbers 2198-BARCON-55DC200, 2198-BARCON-85DC200, 2198-BARCON-100DC200,
2198-BARCON-165DC200, 2198-BARCON-220DC200, 2198-BARCON-275DC200, 2198-BARCON-440DC200,
2198-KITCON-ENDCAP200

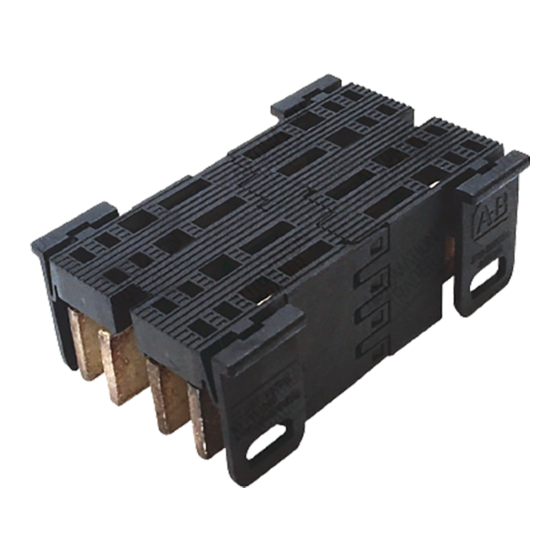

The Kinetix® 5700 DC-bus link kits are used to extend DC-bus power from drive-to-drive in
DC-bus multi-axis configurations. DC-bus links are rated for 208 A, maximum bus-bar current.
Summary of Changes
Topic
• Added 2198-D -ERS4 and 2198-S -ERS4 servo drive catalog numbers. However, when the Kinetix 5700 inverter catalog
number ends in -ERS , for example 2198-D057-ERS , the variable (x) indicates that the inverter catalog number (by using this
example) can be 2198-D057-ERS3 or 2198-D057-ERS4.
• Updated the DC-bus link maximum bus-bar current.
Added DC-bus link kit catalog numbers to the table in support of the Kinetix 5700 regenerative bus supply.
Added the iTRAK® power supply catalog number (2198-W25K-ER) to the table.
Corrected the DC-bus end cap catalog number.
DC-bus Link Kit Applications
DC-bus Link Kit
Cat. No.
2198-BARCON-55DC200
(1)
2198-BARCON-85DC200
2198-BARCON-100DC200
2198-BARCON-165DC200
2198-BARCON-275DC200
2198-BARCON-440DC200
2198-BARCON-220DC200
2198-KITCON-ENDCAP200
(1) When two or three 2198-P208 DC-bus supplies are connected in parallel, one 85 mm DC-bus link is required for each additional power supply.
See the Kinetix 5700 Servo Drives User Manual, publication 2198-UM002, for detailed
information on wiring, applying power, troubleshooting, and integration with Logix 5000™
controllers.
Kinetix 5700 Drive
Module Type
Dual-axis inverter
Dual-axis inverter
Single-axis inverter
Single-axis inverter
iTRAK power supply
Regenerative Bus Supply
Single-axis inverter
DC-bus supply
Kinetix 5700 Drive Module
Cat. No.
• 2198-D006-ERS • 2198-D020-ERS
• 2198-D012-ERS • 2198-D032-ERS
2198-D057-ERS
• 2198-S086-ERS
• 2198-S130-ERS
2198-S160-ERS
2198-W25K-ER
2198-RP088
2198-RP200
• 2198-RP263
• 2198-RP312
• 2198-S263-ERS
• 2198-S312-ERS
• 2198-P031 • 2198-RP088
• 2198-P070 • 2198-RP200
• 2198-P141 • 2198-RP263
• 2198-P208 • 2198-RP312
Page
Throughout
1
Description
DC-bus link, 55 mm, 208 A
DC-bus link, 85 mm, 208 A
DC-bus link, 100 mm, 208 A
DC-bus link, 165 mm, 208 A
DC-bus link, 275 mm, 208 A
DC-bus link, 440 mm, 208 A
DC-bus link, 220 mm, 208 A
DC-bus end caps, 208 A
