Soundoff Signal PMP2BKUMB2 Series Installation Instructions

PMP2BKUMB2-(x) - Ford F-150 2015-2020 Under Mirror Mount Bracket Kit
For 3" mpower Stud or Quick Mount
®
2
3
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
1
PMP2BKUMB2-P IS SHOWN*
PMP2BKUMB2-P
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com//tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .

INTRODUCTION:

mpower® Fascia Light Features:
• 3" Stud Mount and Quick Mount Options available for this bracket design
PMP2BKUMB2-D
• Collaboration with Dow Corning® to develop ClearDuty™ optical design
• Greater resistance to gravel pitting, scratching, or cracking
• Improved sealing to prevent water from entering light
• Higher UV and thermal stability to prevent lens from yellowing over time
PART#
1
PMP2BKUMB2-(D) 2015-2020 Ford F-150 3" mpower
PMP2BKUMB2-(P) 2015-2020 Ford F-150 3" mpower
ITEM# QTY
1
2
3
*Installation instructions are for the passenger side bracket
3 (PMP2BKUMB2-P). Installation for the driver side is the same.
NOTICE:
Improper use or installation may void warranty coverage.
YEAR, MAKE,
*COMPATIBLE WITH...
AND MODEL
, Stud or Quick Mount, Driver Side
®
, Stud or Quick Mount, Passenger Side
®

CONTENTS

COMPONENT
2 1" X 3" VHB TAPE
2

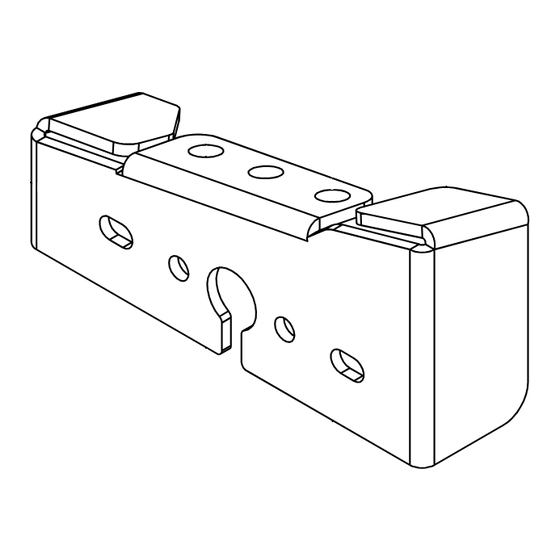

1 UNDERMIRROR 90 DEGREE BRACKET
2 #8 X .50 SM TRUSSHEAD PHILLIPS SCREW
1 SURFACE PREP WIPE
1 PRODUCT WARNING CARD
1 INSTRUCTION SHEET
PMP2BKUMB2-x 1020
