Soundoff Signal PNFSLDGSB-TH Manual

TAHOE FRONT NFORCE
®
PNFSLDGSB-TH (for 2015-2020 model years)
Note: It is recommended that the front bumper cover assembly
be removed for access to front beam. For complete explanation of
disassembly contact a local GM service center.
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com

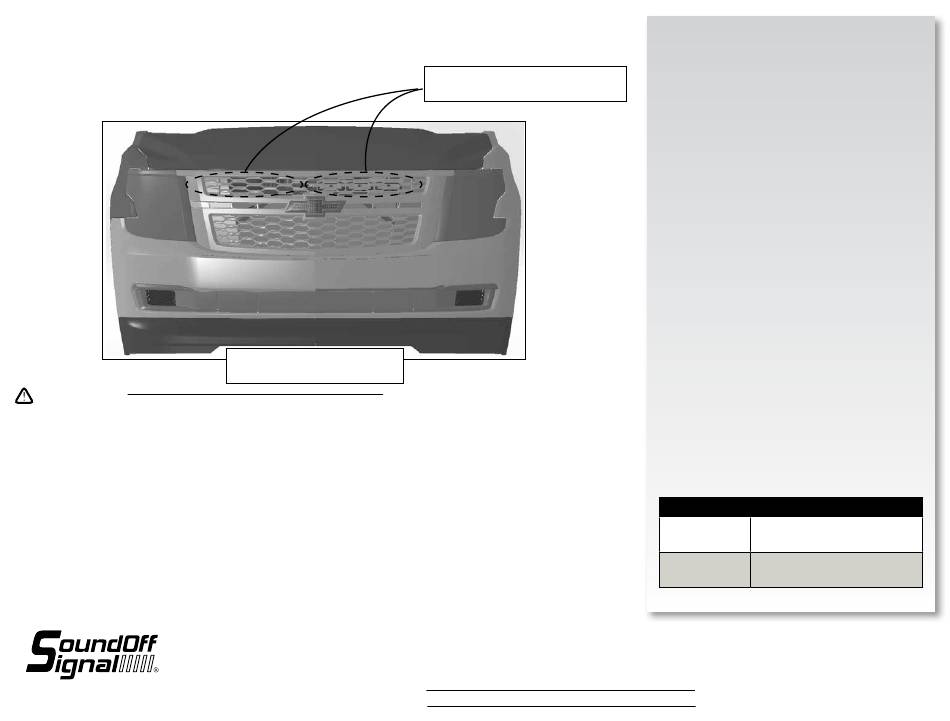

/ GHOST GRILLE BRACKETS
®
FRONT END ASSEMBLY
-BRACKETS LOCATED BEHIND GRILLE-
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
NFORCE/ GHOST LIGHT ASSEMBLY
-DRIVER OR PASSENGER SIDE-
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N

INSTALLATION:

1) Front bumper cover assembly must be removed to
install front nForce/ Ghost light bracket assemblies.
Assembly of bumper should be removed as one
piece and not individually. Consult a local GM
service center for best disassembly method. Keep
all hardware.
2) Mount the brackets for the light assemblies using
the exciting hole locations with the supplied
hardware kit. See figure 1.
3) Insert the supplied 1/4-20 clip nuts. Bolt on bracket
in 3 locations with the 1/4-20 bolts. As shown as
figure 2.
4) Assemble Ghost or nForce lights to brackets with
the supplied hardware. As shown on figure 3.
5) Make electrical connections. Refer to the
instruction sheet supplied with the light.

TECHNICAL SPECIFICATIONS

Material: Steel with powder coated black
finish
Dimensions 3.22"H x 19.25"W x 0.07"D
(bracket only):
Pg. 1 PNFSLDGSB-TH 0120
