UM3073
Sample application description

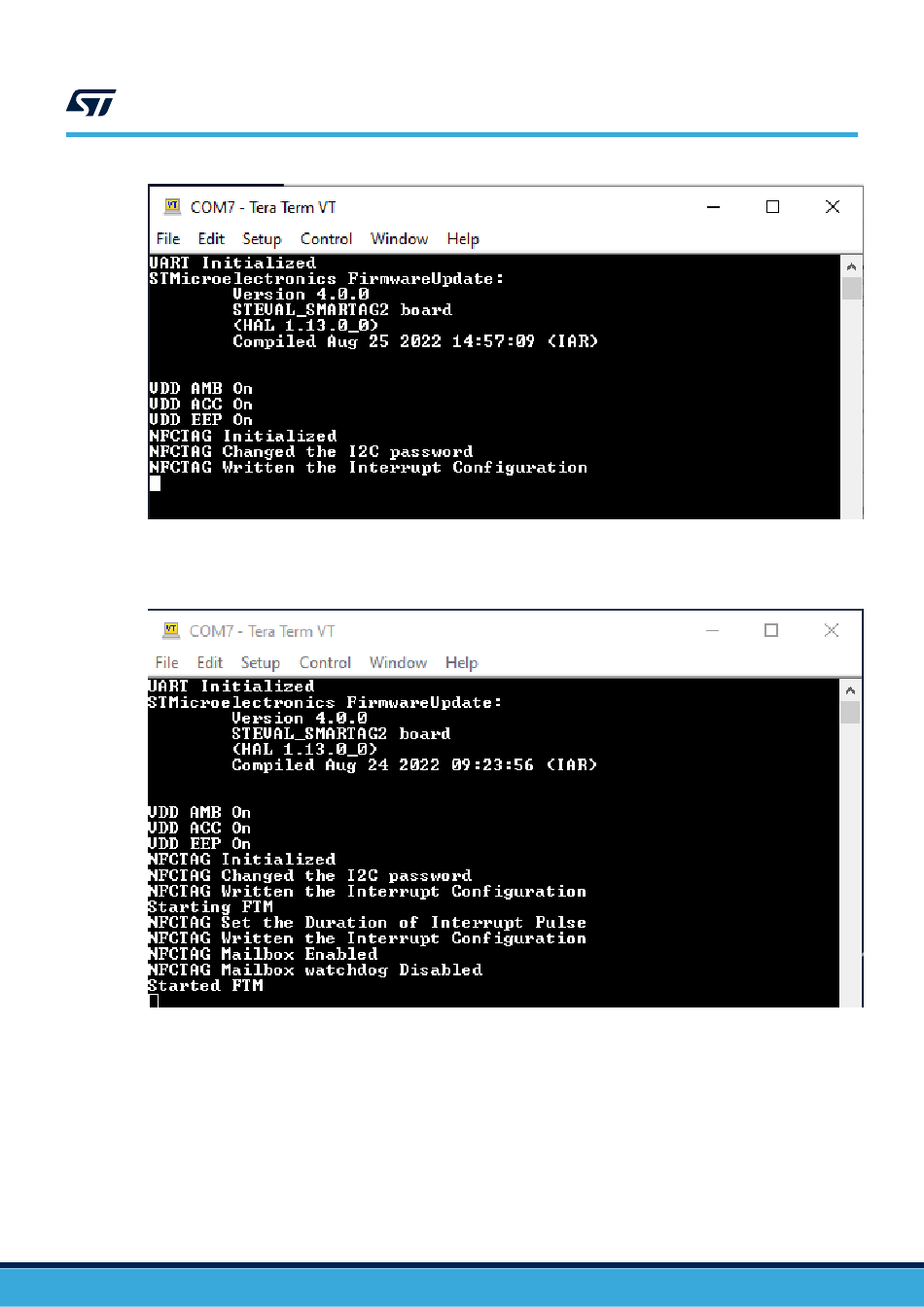

Figure 20.
FP-SNS-SMARTAG2 UART output initialization
After pressing the user button, the fast transfer mode (FTM) starts.
Figure 21.
FP-SNS-SMARTAG2 - FTM
After the firmware update, the board restarts. For further details on how to execute the firmware update, see
Section 1.5.2.5 FirmwareUpdate: Android and iOS sample client
application.
UM3073 - Rev 1
page 21/42
