3
How to use the STEVAL-IPFC02V1 evaluation board
To perform functional and efficiency testing, you need the following equipment:
•
Programmable AC source with power > 2 kW
•
DC electronic load or load resistor > 2 kW
•
Power analyzer
•
Digital oscilloscope
The STEVAL-IPFC02V1 board can be tested up to 2 kW at 230 V
range between 47 and 63 Hz.
Note:
Any load or passive oscilloscope probe must be isolated from the input source of the PFC.
3.1
How to connect and start the STEVAL-IPFC02P1 power board
Step 1.
Insert the STEVAL-IPFC02C1 control board in connector J100 on the STEVAL-IPFC02P1 power board.
UM2674 - Rev 3

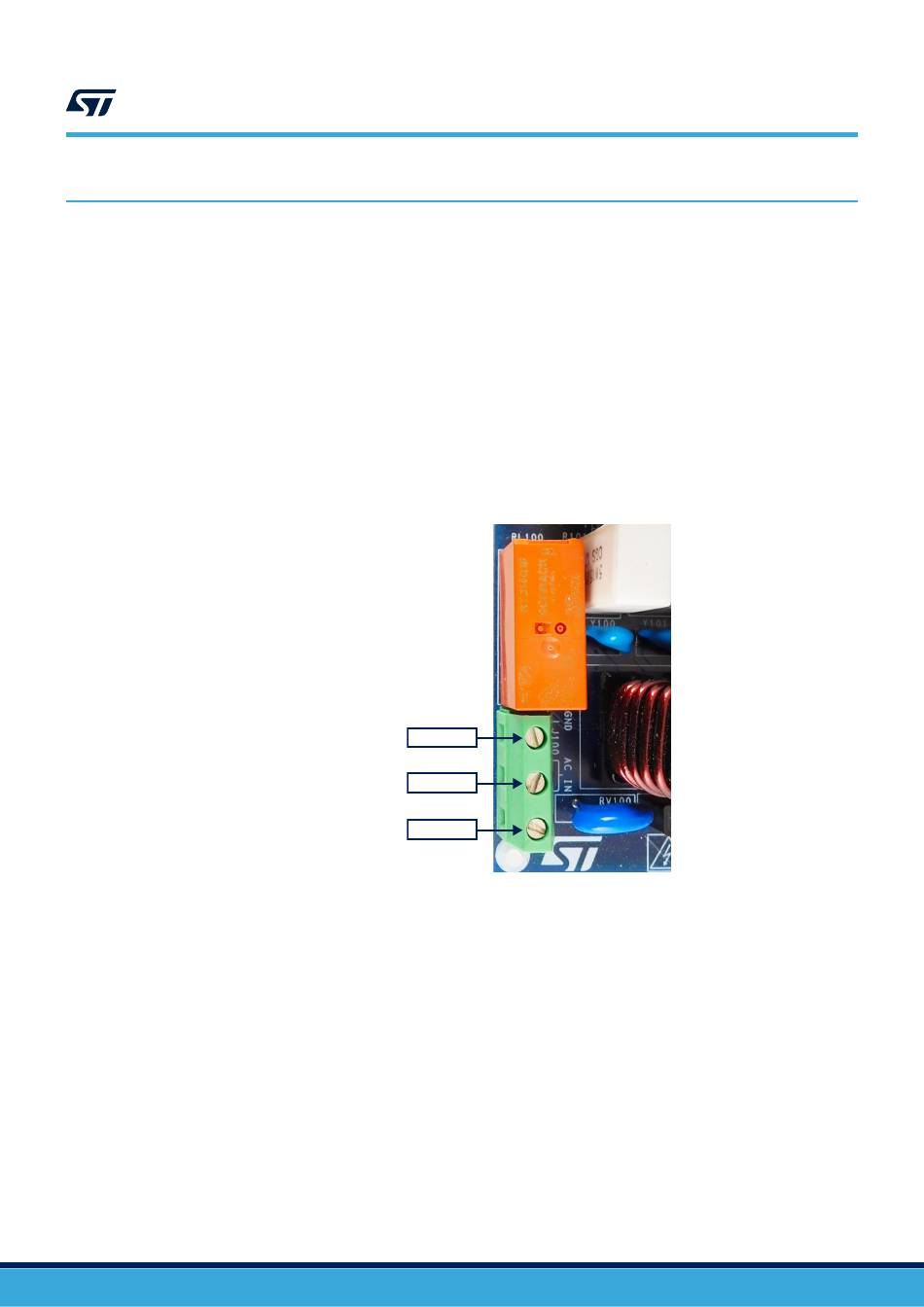

Figure 3.
STEVAL-IPFC02P1 AC supply connection
EARTH
AC LINE
AC LINE
How to use the STEVAL-IPFC02V1 evaluation board
and 1 kW at 115 V
, in a frequency
RMS
RMS
UM2674
page 5/28
