Introduction
The power board STEVAL-ISF001V1 is a 3 kW PFC designed for industrial and domestic
applications. The board must be used for demonstration purposes in order to evaluate the
potential of the FOT (fixed-off-time control, patented by ST) to implement a high-power PFC
with performance comparable to a standard continuous-mode PFC, but using a simpler
controller chip originally designed for TM (transition-mode) PFC operating conditions. This
demonstration board works directly from the AC mains supply in the single range voltage
(185 Vrms - 265 Vrms) and provides a 400 V stable and regulated DC bus output capable of
a maximum of 7.5 A.
The low voltage necessary to supply the driver is generated by an auxiliary winding on the
main inductor, so an external power supply is not needed to start the operation of the board.
The design is:
quick to set up and install
re-usable (the Gerber files are available for free)
ready for downsizing if required.
Note:
Please read

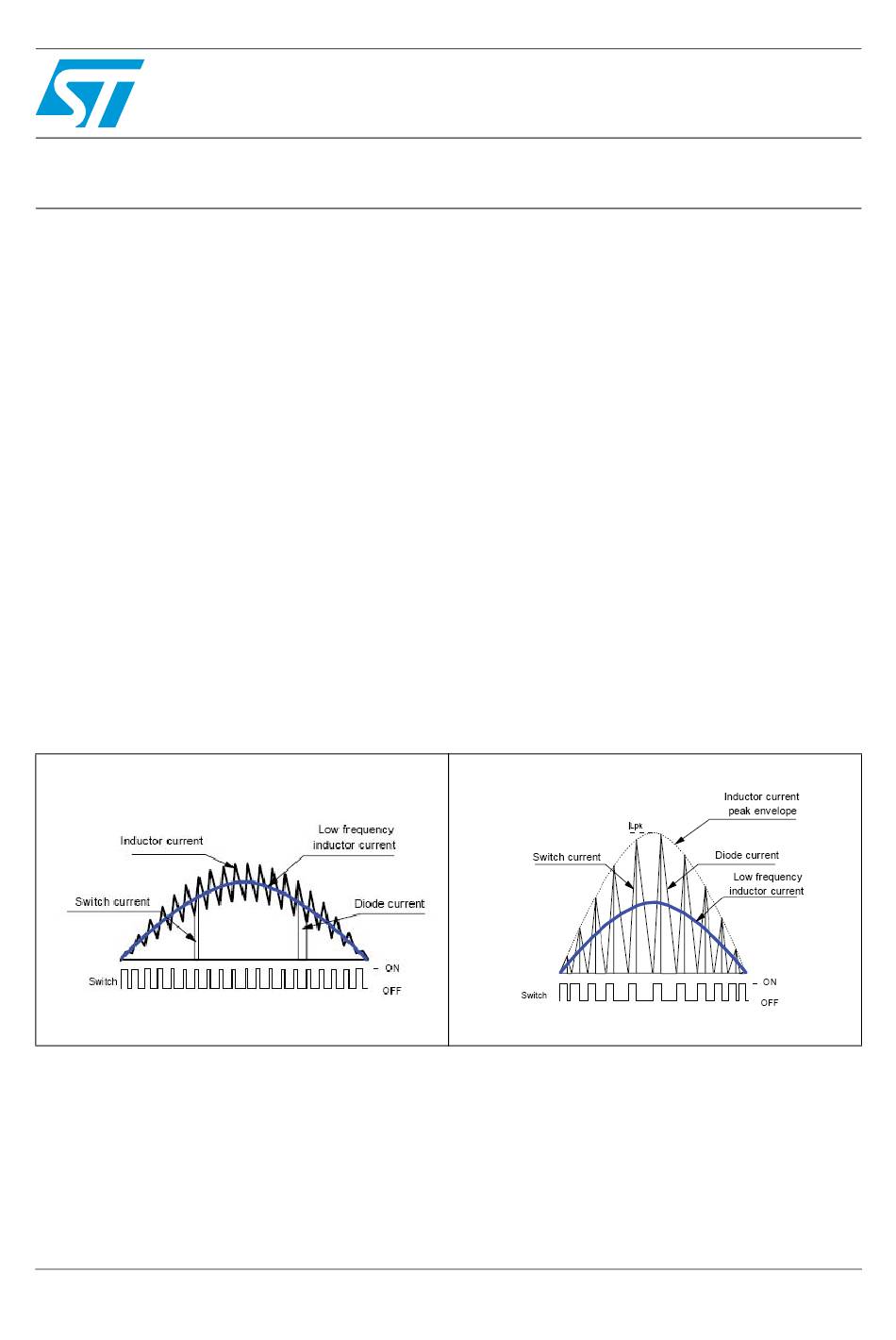

Figure 1.
Line, inductor, switch and diode
current in FF-CCM PFC
September 2009
STEVAL-ISF001V1, 3 kW FOT PFC board
Section 2
of this manual before attempting any operation.
AM01972v1
Doc ID 15337 Rev 1
based on the L6563
Figure 2.
Line, inductor, switch and diode
current in TM PFC
UM0673
User manual
AM01980v1
www.st.com
1/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-ISF001V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST STEVAL-ISF001V1

  • Page 1: Figure 1. Line, Inductor, Switch And Diode Current In Ff-Ccm Pfc

    L6563 Introduction The power board STEVAL-ISF001V1 is a 3 kW PFC designed for industrial and domestic applications. The board must be used for demonstration purposes in order to evaluate the potential of the FOT (fixed-off-time control, patented by ST) to implement a high-power PFC with performance comparable to a standard continuous-mode PFC, but using a simpler controller chip originally designed for TM (transition-mode) PFC operating conditions.
  • Page 2: Table Of Contents

    PFC board connection ........8 STEVAL-ISF001V1 description ....... . . 8 STEVAL-ISF001V1 circuit description .
  • Page 3 Schematic of the STEVAL-ISF001V1 board ........
  • Page 4: Board Description

    Board description UM0673 Board description The STEVAL-ISF001V1 can be used for several kinds of applications: ● Inverter for motor control ● Air conditioning system ● Welding machine DC power supply section. This demonstration board offers customization options as well, making it an excellent choice as an original platform for a more complete and dedicated system.
  • Page 5: Safety And Operating Instructions

    UM0673 Safety and operating instructions Safety and operating instructions General During assembly and operation the 3 kW FOT PFC board poses several inherent hazards including bare wires and hot surfaces. If the board or its components are improperly used or installed incorrectly, there is danger of serious personal injury and damage to property.
  • Page 6: Electronic Connection

    Hardware layout Figure 4. Power board 3 kW FOT PFC STEVAL-ISF001V1 (top view) The mains input connector is present on the right side of the board. Connect a sinusoidal supply voltage with amplitude in the range of 185 Vrms to 265 Vrms. The power source has to be able to supply the power required by the system, according to the output load the user intends to connect on the output port.
  • Page 7: Environmental Considerations

    It is preferable to test the kit in ambient temperature not higher than 45 degrees Celsius. Environmental considerations The STEVAL-ISF001V1 must only be used in a power laboratory. The high voltage involved in the system presents a serious shock hazard. If the board is to be used to measure or capture waveforms or any other interaction between the board and laboratory equipment, an AC-isolated power supply has to be used.
  • Page 8: Pfc Board Connection

    STEVAL-ISF001V1 description The demonstration board STEVAL-ISF001V1 developed by STMicroelectronics provides a compact, and ready-to-use solution for the implementation of a simple PFC system able to supply load with power close to the maximum delivered in most typical domestic installations.
  • Page 9: Steval-Isf001V1 Circuit Description

    ● Driver with inductor saturation detection ● Optimized EMC input filter. STEVAL-ISF001V1 circuit description Figure 5 shows the entire electronic schematic. Starting from the input section, a common-mode EMC filter is fitted in order to be compliant with the EMC regulations concerning industrial and domestic applications. (EN55014 and EN55022).
  • Page 10 PFC board connection UM0673 The chosen switching devices are two Power MOSFETs, MDmesh™ II family, STW55NM60N. These two Power MOSFETs placed in parallel assure a low R , limiting DS(on) the conduction power losses. Good efficiency and good thermal behavior of the system can be reached. In order to properly drive the two Power MOSFETs and to minimize switching losses, during the on and off transient, a small push-pull driver was interposed between the driver and the two gates.
  • Page 11: Bom And Schematics

    UM0673 BOM and schematics BOM and schematics Table 1. Bill of material Item Reference Part 0.22 µF 300Vac X2 C2,C4 10 nF Y2 2.2 µF 300Vac X2 220 nF 630 V C6,C8 330 µF 450 V 18 nF 1µF 100 nF 470 nF 50 V 47 µF 50 V 680 pF...
  • Page 12 BOM and schematics UM0673 Table 1. Bill of material (continued) Item Reference Part BC557 NTC 1 Ω 26 mm (ex. SIEMENS S464) 470 kΩ 1/2 W 22 Ω 1 W R3,R4 560 kΩ 120 kΩ 10 kΩ R7,R13,R26 150 kΩ 47 kΩ...
  • Page 13: Figure 5. Schematic Of The Steval-Isf001V1 Board

    UM0673 BOM and schematics Figure 5. Schematic of the STEVAL-ISF001V1 board AM01975v1 Doc ID 15337 Rev 1 13/20...
  • Page 14: Experimental Measurements

    Experimental measurements UM0673 Experimental measurements Table below shows the performance of the PFC board during lab testing. Table 2. Lab preliminary electrical measurements 185 Vac 230 Vac 265 Vac Vout Iout 0.75 0.75 0.75 Pout Low-power range Efficiency (%) 96.5% 96.2% 0.971 0.964...
  • Page 15: Figure 6. Common-Mode Inductor L1 (Magnetica 1745.0005) Technical Sheet

    UM0673 Experimental measurements Figure 6. Common-mode inductor L1 (MAGNETICA 1745.0005) technical sheet 1745.0005 STP 03 Product Technical Specification Code: Product: Common Mode Inductor 2x2mH 18A STMicroelectronics Customer: Customer Code: YPICAL APPLICATION ECHNICAL DATA AC/DC ISTURB SUPPRESSION ON POWER LINE OF (1-4=2-3) NDUCTANCE 270V...
  • Page 16: Figure 7. Common-Mode Inductor L2 (Magnetica 1951.0001) Technical Sheet

    Experimental measurements UM0673 Figure 7. Common-mode inductor L2 (MAGNETICA 1951.0001) technical sheet 1951.0001 STP 03 Product Technical Specification Code: Product: Common Mode Inductor 2x220uH/18A ST Microelectronics Customer: Customer Code: TYPICAL APPLICATION TECHNICAL DATA AC/DC 270V SUPPRESSION ON POWER LINE OF...
  • Page 17: Figure 8. Common-Mode Inductor L3 (Magnetica 1929.0001) Technical Sheet

    UM0673 Experimental measurements Figure 8. Common-mode inductor L3 (MAGNETICA 1929.0001) technical sheet 1929.0001 STP 03 Product Technical Specification Code: Product: Common Mode Inductor 2x30uH/8A STMicroelectronics Customer: Customer Code: YPICAL APPLICATION ECHNICAL DATA AC/DC ISTURB SUPPRESSION ON POWER LINE OF (1-4=2-3) NDUCTANCE 400V 20°...
  • Page 18: Figure 9

    Experimental measurements UM0673 Figure 9. Boost inductor with auxiliary winding, T1 (MAGNETICA 1922.0001) technical sheet 1922.0001 STP 04 Product Technical Specification Code : Product: PFC Inductor 1.5mH 13A STMicroelectronics Customer Code: Customer: YPICAL PPLICATION ECHNICAL NDUCTOR FOR OOST AND OOST DC NDUCTANCE CONVERTER SUITABLE ALSO IN HALF...
  • Page 19: Revision History

    UM0673 Revision history Revision history Table 3. Document revision history Date Revision Changes 24-Sep-2009 Initial release. Doc ID 15337 Rev 1 19/20...
  • Page 20 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
