How to use the 2 kw two-channel interleaved pfc based on the stnrgpf02 digital controller
Table of Contents

Advertisement

2

STEVAL-IPFC02V1 evaluation kit overview

1.
I/O measurement signals
2.
Analog circuitry
3.
Power stages
4.
Digital control section
The STEVAL-IPFC02V1 implements mixed signal (analog/digital) control, combining the flexibility of a
programmable high end digital solution with the responsiveness and accuracy of analog componentry. The
inner current loop consists of an analog proportional-integral (PI) compensator that ensures the highest possible
bandwidth and cycle-by-cycle regulation. The outer voltage loop is performed by a digital PI controller with fast
dynamic response.
2.1

Board features

The 2 kW interleaved PFC evaluation kit features:
A modular design with the following separate boards:
STEVAL-IPFC02P1 power board
STEVAL-IPFC02C1 control board
STEVAL-IPFC01A1 adapter board
2-channel interleaved PFC
Input voltage range: 90 to 265 V
Maximum output power: 2 kW at 230 V
Output voltage: 400 V
Fixed frequency average current mode control and CCM operation
Mixed-signal, semi-digital approach
Programmable phase shedding
Cooling System management
Programmable fast overcurrent and thermal protection
Digital inrush current limiter function performed with relay
Soft startup and burst mode management
Load current and input voltage feed forward
Channel current balance function
UM2674 - Rev 3
Figure 2.

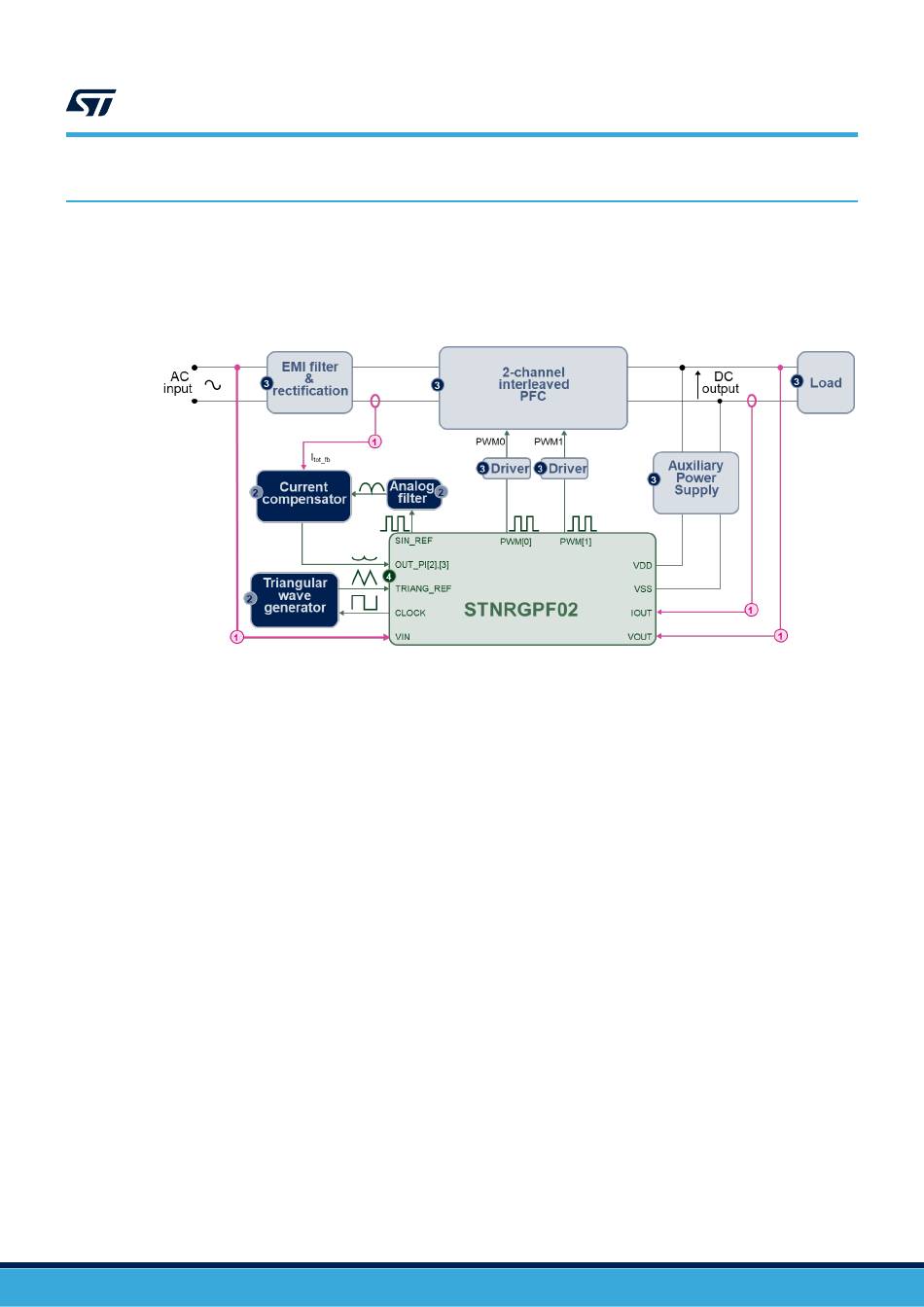

STEVAL-IPFC02V1 block diagram
