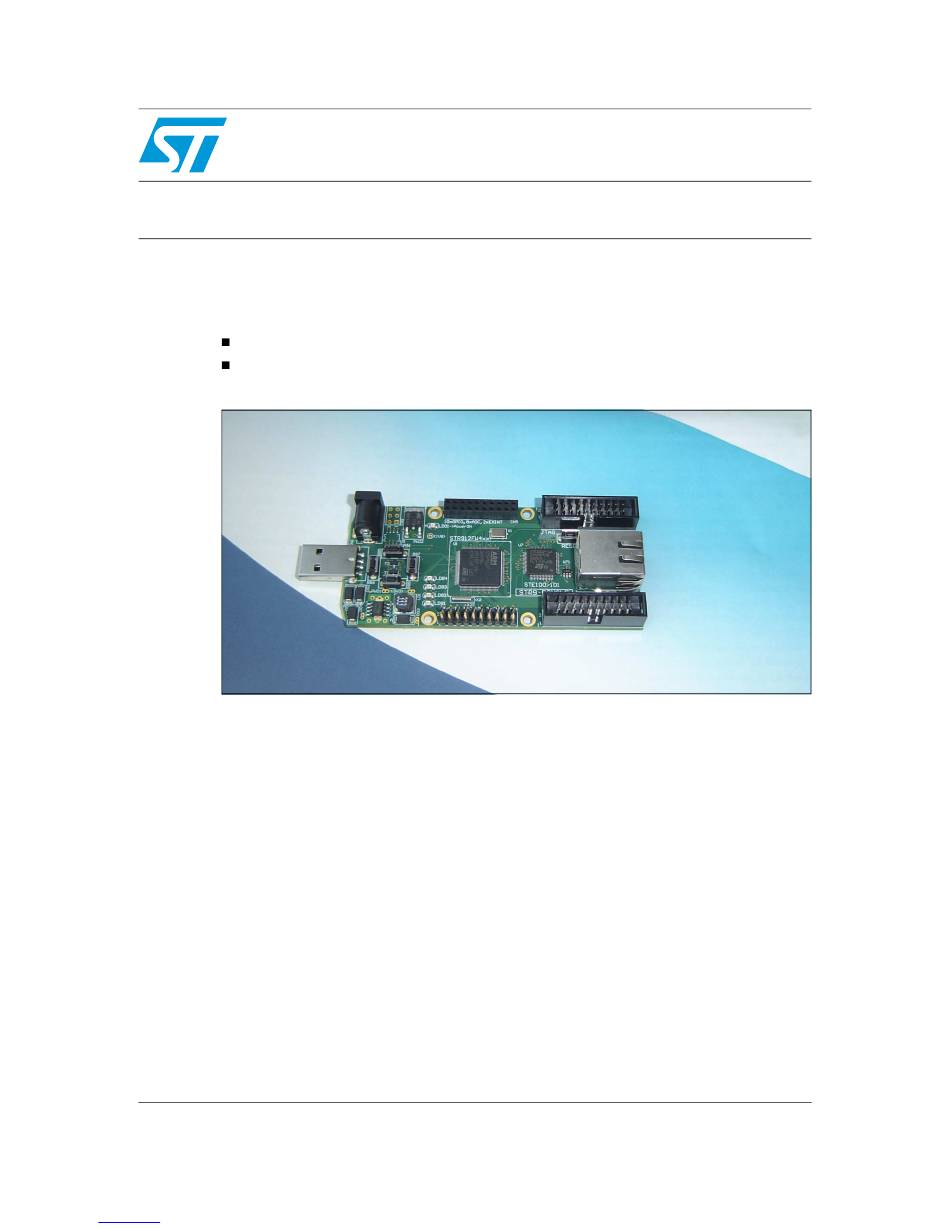

UM0282 User manual STR9 Dongle hardware description Introduction This user manual provides a hardware description of both versions of the STR9 Dongle: STEVAL-IFD001V1 (full version) STEVAL-IFD001V2 (lite version) Figure 1. STR9 DONGLE (STEVAL-IFD001V2) This document contains all the necessary assembly information to designers interested in using STR9 Dongle including the block diagram, board schematics, footprints and PCB layouts as well as the bill of materials and any additional assembly instructions.
This board is based on an microcontroller STR912FAW34, STR912FAW42 or STR912FAW44 which provides calculation power up to 90MIPS. STR912FAW34, STR912FAW42 and STR912FAW44 are referred to STR912FAWxx throughout the document. Figure 2. STR9 Dongle block diagram 3.3V ANALOG_CONNECTOR Power 10 × GPIO 1.8V 8 × A JTAG 2 ×...
STR9 Dongle UM0282 Schematics Figure 3. Schematics 1 of 4 4/19 Downloaded from Elcodis.com electronic components distributor...
Page 5
UM0282 STR9 Dongle Figure 4. Schematics 2 of 4 5/19 Downloaded from Elcodis.com electronic components distributor...
Page 6
STR9 Dongle UM0282 Figure 5. Schematics 3 of 4 Note: Refer to Section 1.2.1 on page 8 for pin connections of CN3, CN4 and CN5 connectors. 6/19 Downloaded from Elcodis.com electronic components distributor...
Page 7
UM0282 STR9 Dongle Figure 6. Schematics 4 of 4 7/19 Downloaded from Elcodis.com electronic components distributor...
STR9 Dongle UM0282 1.2.1 Pin connections The following tables show the pin connections for the three connectors ANALOG_CON (CN5), DIGITAL_CON (CN4) and EXTENDED_CON (CN3). These are shown in Figure 5 on page Table 1. Analog connector, ANALOG_CON (CN5) GPIO UART...
STR9 Dongle UM0282 Assembling instructions Table 14. JTAG with IAR Part Assembled Configuration / Comment Position 1-2 R24, R25 Position 2-3 R27, R28 Table 15. Configuration with STE101P Part Assembled Configuration / Comment R710 R707. R708 R709 R721-R725 Position 1-2...
UM0282 STR9 Dongle Assembling instructions for lite version CAN transceiver U9 – not assembled Connectors CN3, CN4, CN5, CN9 – not assembled Crystal X2 – use this one GM: 131-082 (Q32.768KHZM) Application hints 1.9.1 Ethernet interface Clock input The clock is provided directly by the STR912FAWxx device. It is mandatory to enable this feature on pin P52 before starting.
Date Revision Changes 19-Jan-2007 Initial release. 24-May-2007 Section 1.9: Application hints added. Figure 1: STR9 DONGLE (STEVAL-IFD001V2) updated. Root part numbers changed from STR912FW42xx and 19-June-2007 STR912FW44x to STR912FAW34, STR912FAW42 and STR912FAW44 throughout the document. Table 4: Chips updated. 18/19 Downloaded from Elcodis.com...
