ST STEVAL-IFP044V1 User Manual

Getting started with the STEVAL-IFP044V1 industrial digital output expansion
Introduction
The STEVAL-IFP044V1 is an industrial digital output expansion board. It provides a powerful and flexible environment for the
evaluation of the driving and diagnostic capabilities of the
digital output module connected to 5.7 A (max.) industrial loads.
The STEVAL-IFP044V1 can interface with the microcontroller on the
Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
The expansion board can be connected to either a
It is also possible to evaluate a system composed by up to four stacked
As an example, a system with four
module with 5.7 A (max.) capability each.
UM3050 - Rev 1 - August 2022
For further information contact your local STMicroelectronics sales office.
IPS2050HQ-32
NUCLEO-F401RE
STEVAL-IFP044V1 expansion boards allows you to evaluate an eight-channel digital output

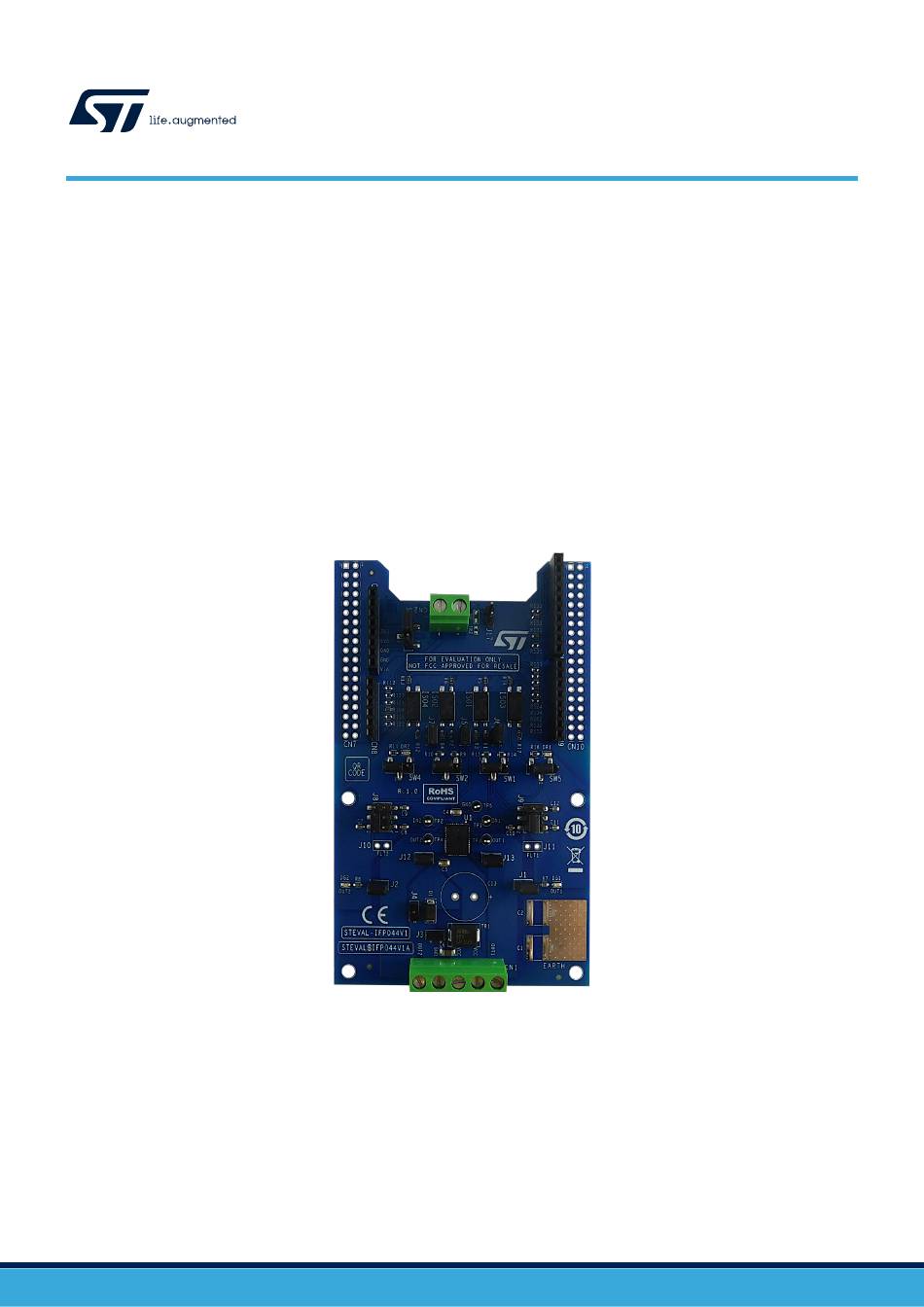

Figure 1. STEVAL-IFP044V1 expansion board
(dual high-side smart power solid state relay) in a
STM32 Nucleo via 5 kV optocouplers driven by GPIO pins,
or NUCLEO-G431RB development board.
STEVAL-IFP044V1 expansion boards.
UM3050
User manual
board
www.st.com
