Step 5: Install the seat post and front & rear reflectors
1. Loosen the screws on the rear reflector bracket then attach the rear reflector to the
seat post.
2. The rear reflector needs to be aligned straight anda facing towards the rear of the
bicycle. Ensure there is at least 7.6cm of clearance between the top of the seat
and the top of the rear reflector.
3. Open the quick release seat clamp and insert the seat post into the frame. Set the
desired height of the seat enusring the minimum insertion mark (Figure 5) on the
seat post is below the clamp and not visible.
4. Use your palm to close the quick release clamp (Figure 6). Ensure the seat is tight
enough so that it cannot twist.
5. To adjust the height further, open the seat clamp and slide the seat up or down.
WARNING:
Be sure the minimum insertion marks do not go past the top of the seat
clamp and are not visible.
14
Seat post out too far
The minimum insertion point on the
seat post must be inserted into the
seat tube.

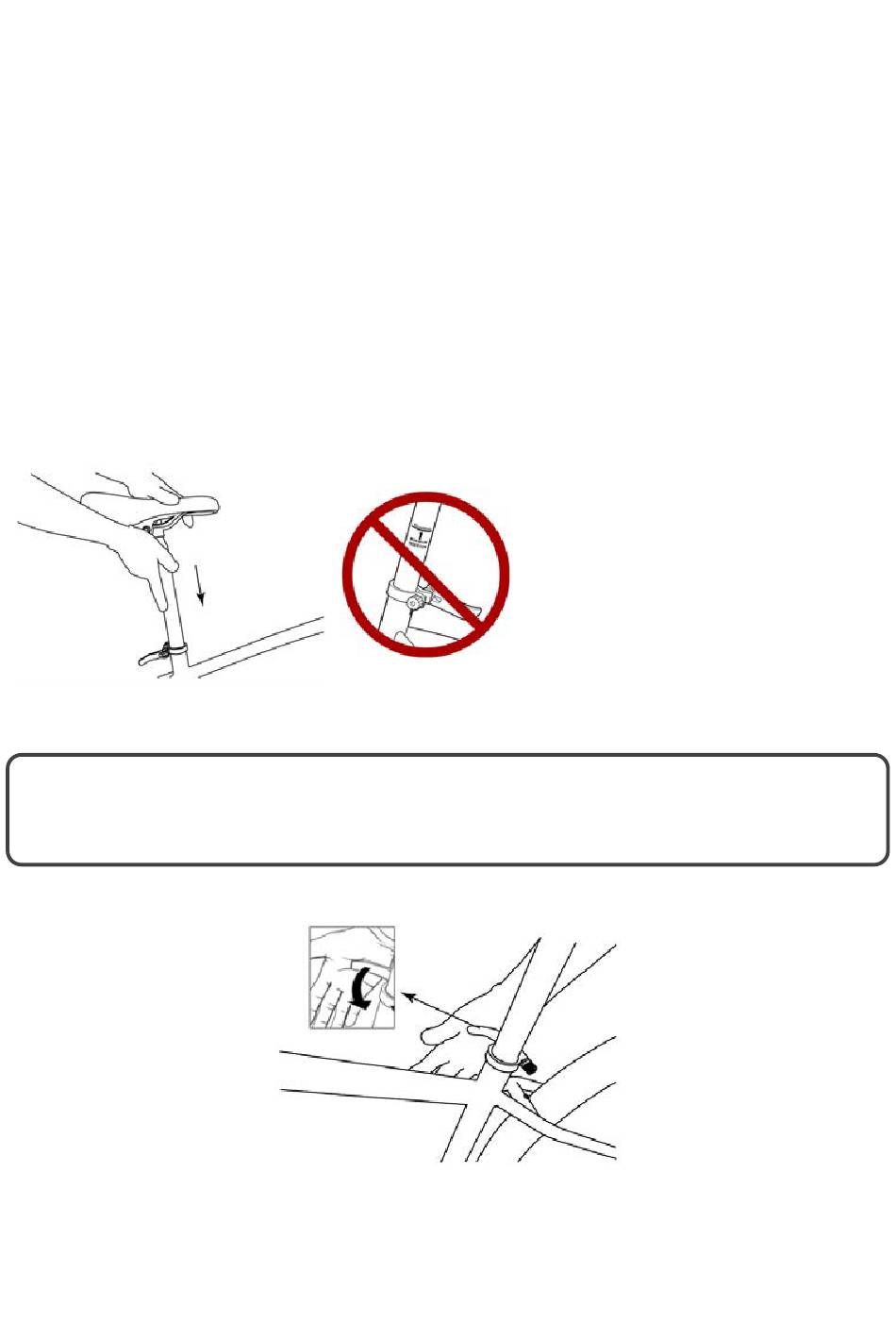

Figure 5
Figure 6
