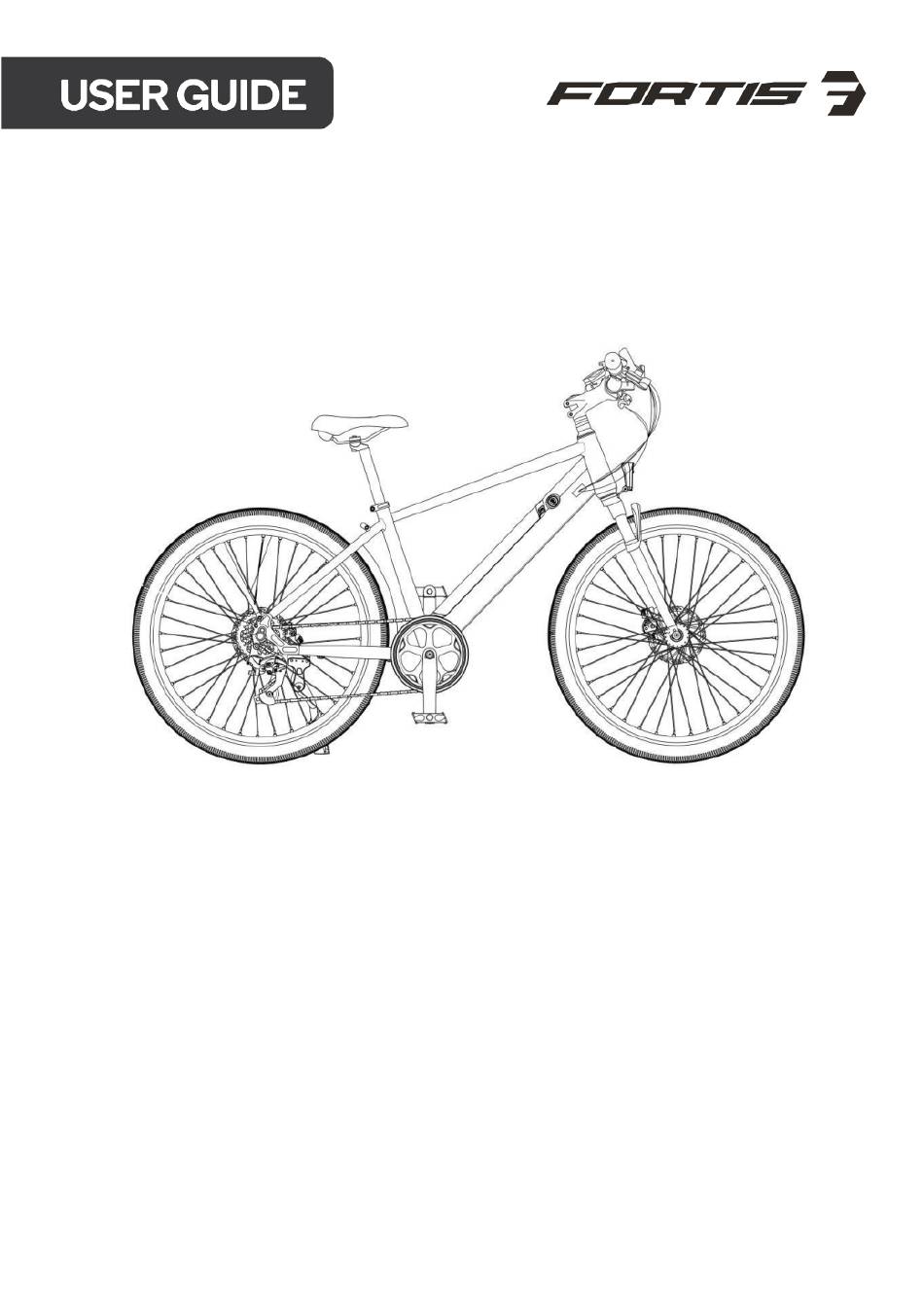

- Page 1 27.5" HYBRID PRO COMMUTER ELECTRIC MOUNTAIN BIKE 36V 10AH FS27HCMEBKC...
-
Page 2: Table Of Contents
Safety & Warnings Components List Overview Assembly Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Warning • Failing to follow the directions below may result in injury, damage, or failure of the bike or system. All other losses or damages to yourself, others, and any property arising because of using the bike are also your responsibility. •... - Page 4 Legality Local and state regulations vary. It is your responsibility to ensure your bike is legal in your area before riding it on public roads. If you’re unsure, ask your bike shop for more information about local laws and regulations. General Safety •...
- Page 5 Battery Maintenance and Safety Review the following instructions and guidelines carefully to ensure safe battery use and maintenance. • Charge your battery in a temperature-controlled, dry, safe location ideally at room temperature, 10°C to 25°C (50°F to 77°F). • Always charge between 0°C to 45°C (32°F to 113°F), as charging outside of this range may damage the battery.
- Page 6 • Avoid subjecting the battery to high temperatures, such as directly under the sun, for prolonged periods of time. • Recharge the battery before it becomes completely discharged. Completely discharging will reduce the number of recharging cycles during the battery's life and limit its capacity.
- Page 7 • Look ahead and be ready to avoid: Vehicles slowing or turning, entering the road or your lane ahead of you or coming up behind you. Pedestrians stepping out. Children or pets playing near the road. Potholes, sewer grating, railroad tracks, expansion joints, road or sidewalk construction, debris and other obstructions that could cause you to swerve into traffic, catch your wheel or cause you to have an accident.
- Page 8 Stand Over Height Minimum 7.5cm clearance. Warning • The minimum insertion point on the seat post must be inserted into the seat tube. • Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. Open the quick release lever, Use your palm to close the quick- insert the seat post, ensure the...
- Page 9 Headlights should be pointing slightly downwards to not blind others. Safe Use of Your Electric Components • Warning: At no time should you make any modifications to your bike’s electrical systems. • Motor: E-bikes are equipped with a high-torque geared hub motor. The motor sits in the middle of the rear wheel.
-
Page 10: Components List
COMPONENTS • Electric mountain bike • Front wheel • Charger • Battery keys • Handlebar • User guide • Box Bell Front reflector Pedals (x2) Quick release Tools Note: All bolts, washers, nuts and bolts are on the bike. Remove and reinstall them after each component has been installed. -
Page 11: Overview
OVERVIEW 2 3 4 5 Shifter Pedal Bell Quick Release Rear Brake Front Reflector Spoke Chain Stem Key Port Rear Derailleur Display Charger Port Freewheel Headset Battery Rear Motor Head Light Down Tube Rear Wheel Reflector Front Fork Controller Saddle Front Wheel Reflector Crank Set Seat Clamp... -
Page 12: Assembly
ASSEMBLY WARNING: Incorrect assembly, maintenance or use of this bike can cause component or performance failure, loss of control, serious injury or death. Even if you’re an experienced bike rider, you must read and understand the entire user guide and any documentation provided for subcomponents or accessories before riding. - Page 13 In case of a conflict between the instructions in this user guide and information provided by a local bike shop, contact help.Kogan.com for support. Do not ride your bike until you are comfortable and have verified the information. Component IN-LB Tool Handlebar Area Stem clamp bolts...
- Page 14 Unpack the Bike Remove the outside carton after cutting the nylon bands. Remove all the inside cardboard protection and bubble wrap. Carefully remove the bike from the carton. Ensure the following pieces are included in the package: Electric bike. Front wheel. Little carton (for user guide, tools, pedals (left and right), bell, rear reflector etc.) Charger.
- Page 15 Install the Front Wheel Note: Charge the battery before assembling the bike. It will take approximately 4-6 hours to fully charge. Warning Do not touch the brake rotor, which has sharp edges and can cause serious injury. Touching the brake rotor or brake pads with bare skin can also transfer natural oils to either component, which can decrease braking performance.
- Page 16 Hold the quick-release lever in line with the axle and tighten the thumb nut until the lever can stay parallel to the floor without being held. Use the palm of your hand to close the lever fully, without touching the brake rotor. The quick-release lever secures the front wheel to the bike, so it’s important that the thumb nut is tight enough to ensure the closed lever has adequate clamping force to keep the axle and wheel firmly in place.
- Page 17 Install the Handlebar Rotate the stem until the top cap bolt can be reached with the 5mm Allen key. Check and align the stem with the front wheel. Orient the handlebar so the brake levers face forwards and the shifter is on the rider’s right side.
- Page 18 Install the Pedals Attach the pedals using a multi-function wrench. The pedals are marked ‘L’ for Left and ‘R’ for Right. The left pedal is attached by turning it counterclockwise, and the right pedal is tightened by turning it clockwise. Make sure the pedals are tightened to the crank arms to prevent stripping (see picture below).
- Page 19 Install the Rear Reflector and Seat Post Put the seat post-mounted rear reflector in the correct position by loosening the screws of the rear reflector bracket. Ensure the rear reflector is vertical and points straight toward the rear of the bike. There should be at least 7.6cm of clearance between the top of the seat and the top of the red rear reflector.
- Page 20 Install the Bell and Headlight Loosen the screw of the bell, adjust the bell angle, and then lock the screw. Install the bell on the left side of the handlebars. Adjust the headlight angle using a 5mm Allen key and an 8mm spanner on the locknut to loosen the headlight angle adjustment bolt.
-
Page 21: Operation
OPERATION How the Electrical System Works Your bike is equipped with a Pedal Assist System (PAS) and a motor to propel the bike forward. How the Pedal Assist System Works Pedal assist uses a cadence sensor built into the drive train of the bike. The cadence sensor detects when the rider revolves the pedals and signals the electric motor to provide the level of pedal assistance (0-5) that the rider has selected. -
Page 22: Battery Button
Battery Button Press the ‘Battery’ button to turn the battery on/off. Battery Indicator Battery Indicator Battery Indicator Battery % Below 20% Green 20-80% Blue Battery Status Status Flash Red Red Light (R) Green Light (G) Blue Light (B) Conditions U≤33.5V 33.5V≤U<36V 36V≤U<38V U≥38V... - Page 23 Battery Charging • Your bike comes with a charging system. This charger can be plugged into any AC100V- 240V electrical outlet. • When the battery is charging, the battery indicator will illuminate red. • When the battery is fully charged, the battery indicator will illuminate green. Charging Port Key Port Safety Guidelines for Charging...
-
Page 24: Battery Installation
Battery Installation and Removal • Warning: As with all electric appliances, the battery system must be operated with care. Do not store your charger or battery in any place where they could get wet or be subject to high heat. The storage area should be well ventilated. •... - Page 25 Display Screen Gear Unit of Distance Max Speed Minus Button Headlight On Indicator Plus Button Controller Failure Power Button Motor Fault VOL Current Voltage) Battery Under Voltage TI (Operation Hours) Battery Volume ODO (Total Mileage) Current Speed TRIP (Single Mileage) Unit of Speed Current Gear Level Unit of Voltage...
-
Page 26: Headlight On/Off
Power On/Off • Press the ‘Power’ button for 2 seconds. The display will show the model number before the system turns on. • With the display on, hold the ‘Power’ button for 1 second to turn off the electric system. Pedal Assist System (PAS) Level •... - Page 27 Battery Status When the battery is only 5%, you should charge the battery as soon as possible. 100% Set Up Parameters • With the display on, press the ‘Plus’ and ‘Minus’ buttons at the same time to enter the parameter setting interface. •...
- Page 28 Brake • This bike is equipped with disc brakes for maximum reliability. Applying hand pressure to the brake levers will engage the wheel brake to cause friction against the brake disc, slowing the wheel. The more hand pressure applied to the brake lever, the faster the bike will come to a stop.
- Page 29 Shifting Gears • This bike comes with a geared motor. First gear is for easier and uphill pedalling and the last gear is for maximum speed on level or downhill terrain. • Only press the lever in the direction indicated with the arrow to increase one gear at a time.
- Page 30 Tyre Inflation and Deflation • Never inflate a tyre beyond the maximum pressure marked on the tyre’s sidewall. Exceeding the recommended pressure may blow the tyre off the rim which could cause damage to the bike and serious or fatal injury to the rider and injury to bystanders. •...
-
Page 31: Cleaning & Care
CLEANING & CARE Service This bike needs to be checked and serviced by a qualified bike mechanic after every 161km of riding. This is standard best practice for any new bike, as cables will stretch, and components will ‘bed in’. The service must include spoke tensioning for both front and rear wheels. - Page 32 to your local bike shop about the best lubricants and the recommended lubrication frequency for your area. • Squeeze the front brake and rock the bike forward and back. Ensure everything feels solid. If you feel a clunk with any forward or backward movement of the bike, you probably have a loose headset.
- Page 33 Maintenance Schedule Each ride Weekly Monthly 6 Monthly Yearly Tyre pressure & condition √ Visual inspection √ Brake lever pressure √ Quick releases √ Handlebar alignment √ Saddle alignment √ Battery pack locked √ Inspect frame condition √ (include welds for fissures) Clean and lubricate chain √...
-
Page 34: Specifications
SPECIFICATIONS Maximum user weight 100kg/220lb Frame Aluminium alloy Front fork Steel rigid front fork Gear SHIMANO 7 speed Brakes Mechanical disc brake Electrical system Pedal assist Maximum speed 32km/h Input: 100Vdc/240Vdc Charger Output: 42Vdc/2A Charging time 4-6 hours Battery type Lithium-ion battery Battery capacity (wattage hours) 10.4AH... -
Page 35: Troubleshooting
TROUBLESHOOTING Display Error In case of failure, the display will prompt the user in the form of a code and graphic: Error Code Meaning Troubleshooting Symbol • Check whether the connector of the motor’s waterproof cable is loose. Reconnect or replace. - Page 36 Battery Error Problem Solution Charger does not illuminate • Ensure your electrical outlet is working. when plugged in. • Check the connectors for dirt or damage. • If the charger still does not work, it may need to be repaired or replaced. Do not attempt to open the charger case.
-
Page 37: Notes
NOTES... - Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
