ASSEMBLY INSTRUCTIONS FOR THE MC-55
RIGHT END FRAME
MIDDLE LEG
NOTE: During assembly of the furniture please match joints with the corresponding letters
or numbers stamped on the wood.
KINGSLEY–BATE
Fine Garden Furniture
BACKS
STEP-II
Gently lay the END FRAME with the stamps near the
mortise holes on a clean, flat surface and fit the first
BACK tenons into the END FRAME mortise holes, fit
the MIDDLE LEG into the first BACK. If necessary,
gently rock the parts while pushing down on them until
all the joints fit snugly together.
INSERTS
* NOTE
A TENON
B MORTISE HOLE
STEP-I

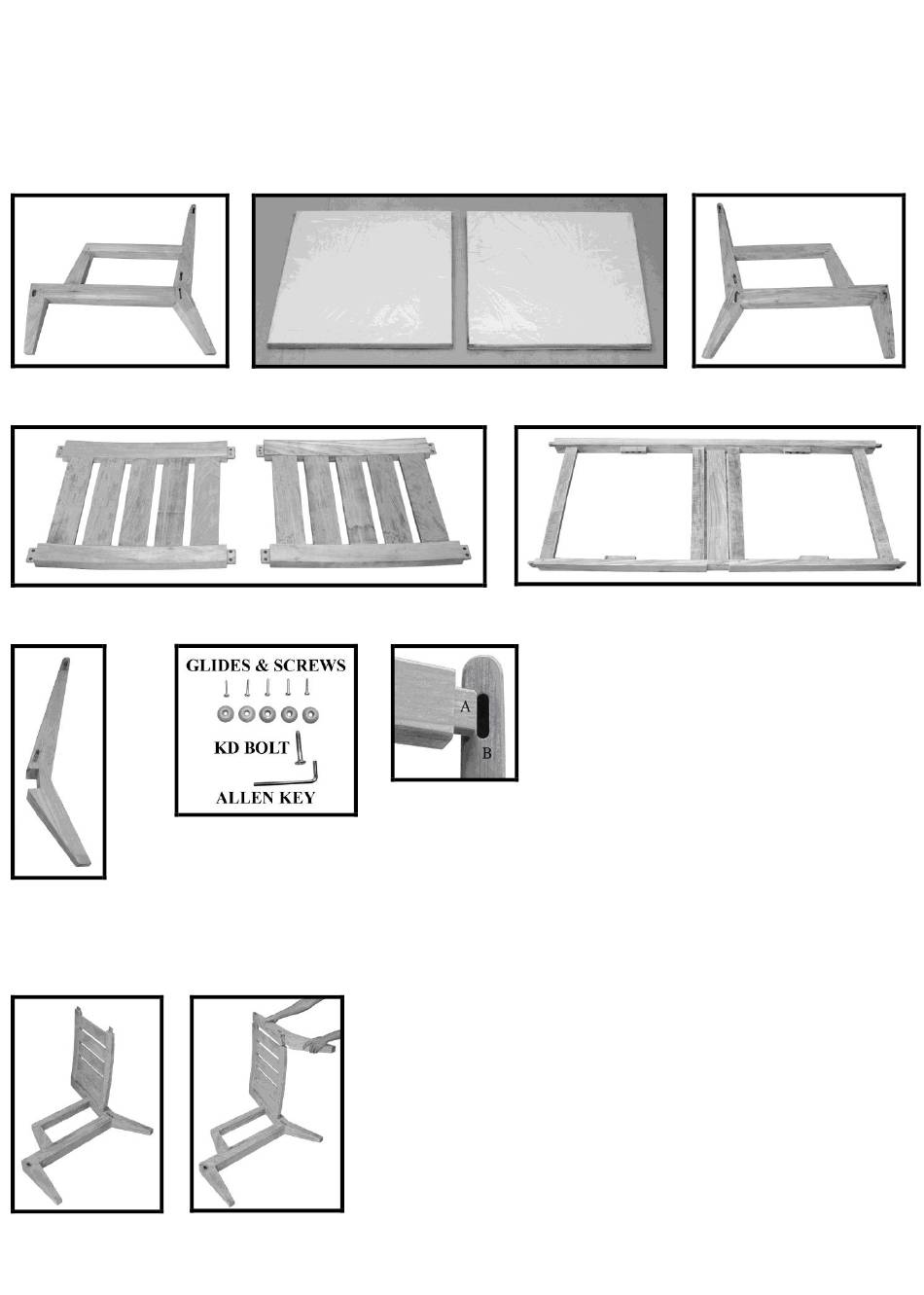

Unpack, inspect and lay the parts on
a clean, flat, soft surface to avoid
marring the wood.
LEFT END FRAME
SEAT FRAME
