H3C LSWM4SP8PM Interface User Manual-6PW105
H3C LSWM4SP8PM 接口模块扩展卡 用户手册-6PW105
Overview 简介

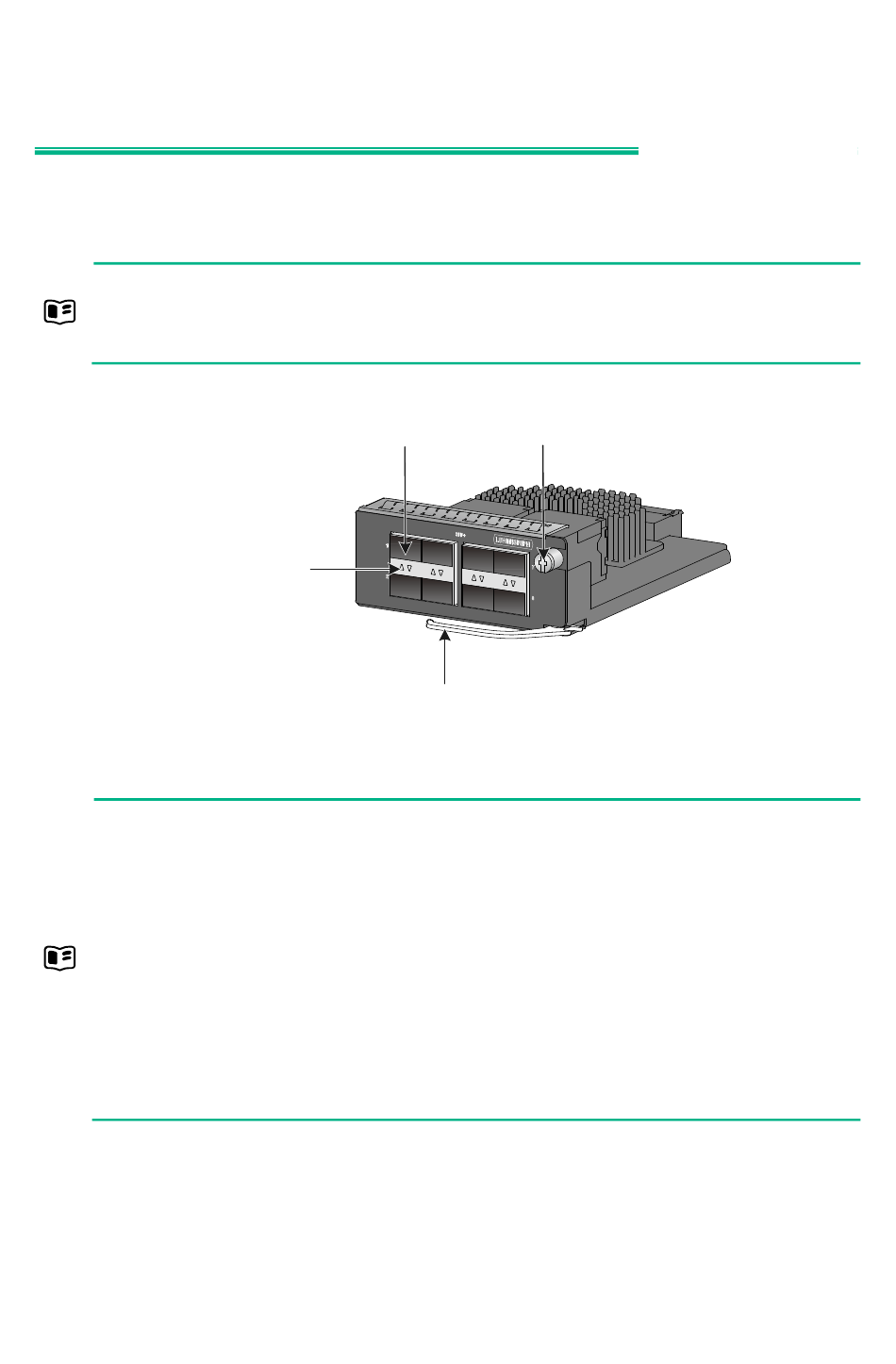

The LSWM4SP8PM interface card provides eight SFP+ ports that support
MACsec.
LSWM4SP8PM 模块扩展卡对外提供 8 个支持 MACsec 功能的 SFP+口。
SFP+ port LED
SFP+口状态指示灯
•
The switch models that the LSWM4SP8PM interface card is applicable
to might change over time. For the most up-to-date list of applicable
switch models, contact H3C Support or marketing staff.
LSWM4SP8PM 接口模块扩展卡适用于 H3C 多款交换机产品，其适用
机型的准确信息随着时间变化有更新的可能性，若您需要更详细的适配
信息，请咨询 H3C 公司市场人员或技术支持人员。
•
The restrictions for using the LSWM4SP8PM vary device model. For
more information, see the installation guide or hardware information
and specifications for the device. LSWM4SP8PM 用于不同交换机产品
可能存在不同的使用限制，具体请参考产品配套安装指导或硬件描述。
Installing and removing the card
接口模块扩展卡的安装和拆卸
SFP+ port
Captive screw
松不脱螺钉
SFP+口
Ejector lever
扳手
1
BOM: 3101A0LN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for H3C LSWM4SP8PM
Summary of Contents for H3C LSWM4SP8PM
- Page 1 H3C LSWM4SP8PM Interface User Manual-6PW105 H3C LSWM4SP8PM 接口模块扩展卡 用户手册-6PW105 BOM: 3101A0LN Overview 简介 The LSWM4SP8PM interface card provides eight SFP+ ports that support MACsec. LSWM4SP8PM 模块扩展卡对外提供 8 个支持 MACsec 功能的 SFP+口。 SFP+ port Captive screw 松不脱螺钉 SFP+口 SFP+ port LED SFP+口状态指示灯...
- Page 2 与拆卸接口模块扩展卡前，您需要准备的工具包括十字螺丝刀、一字螺 丝刀和防静电腕带。 • No installation tools are provided with the device. Prepare these tools yourself. H3C 不随机提供安装工具，您需要提前准备这些安装工具。 1. Safety precautions 安全注意事项 • Before you install or remove the card, wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded. 在安装...
- Page 3 (2) Rotate inward the ejector lever until the card is in close contact with the switch. 将扳手用力向内扣合，确保接口模块扩展卡和交换机紧密接触。 (3) Use the Phillips screwdriver to tighten the captive screw on the card. 使用十字 螺丝刀顺时针方向旋转，拧紧接口模块扩展卡上的松不脱螺钉。 3. Removing the card 接口模块扩展卡的拆卸 • To avoid cable damage, remove the cables from the card before removing the card.
- Page 4 SFP-GE-LX-SM1310-BIDI 与 SFP-GE-LX-SM1490-BIDI 两款模块需要成对使用。 • H3C transceiver modules and cables available for the card are subject to change over time. For the most recent list of H3C transceiver modules and cables available for the card, contact H3C Support or marketing staff.
- Page 5 Modal Connector Central Cable Model bandwidth transmission 接口连接 wavelength specifications 型号 模式带宽 distance 中心波长 接口线缆规格 器 最大传输距离 (MHz*km) 10-GE SFP+ transceiver modules 万兆 SFP+模块 SFP-XG-LX- 10 km (6.21 1310 nm 9/125µm SMF SM1310 miles) SFP-XG-LX- 10 km (6.21 1310 nm 9/125µm SMF SM1310-D miles)
- Page 6 Modal Connector Central Cable Model bandwidth transmission 接口连接 wavelength specifications 型号 模式带宽 distance 中心波长 接口线缆规格 器 最大传输距离 (MHz*km) 10 km (6.21 9/125μm SMF miles) SFP-GE-LX- 50/125μm 550 m (1804.46 1310 nm 500/400 SM1310-A 62.5/125μm 550 m (1804.46 SFP-GE-LX- 10 km (6.21 9/125μm SMF 1310 nm SM1310-D...
- Page 7 No transceiver module is installed in the port, or no link is present on the port. 灯灭 模块没有安装或端口没有Link Up Copyright © 2021, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice. Copyright © 2021 新华三技术有限公司 版权所有，保留一切权利 本文档中的信息如有更改，恕不另行通知...
