H3C LSQM1TGT24QSM0 interface card
▌Introduction
Overview
The LSQM1TGT24QSM0 interface card provides 24 10GBASE-T
ports and two QSFP+ ports.

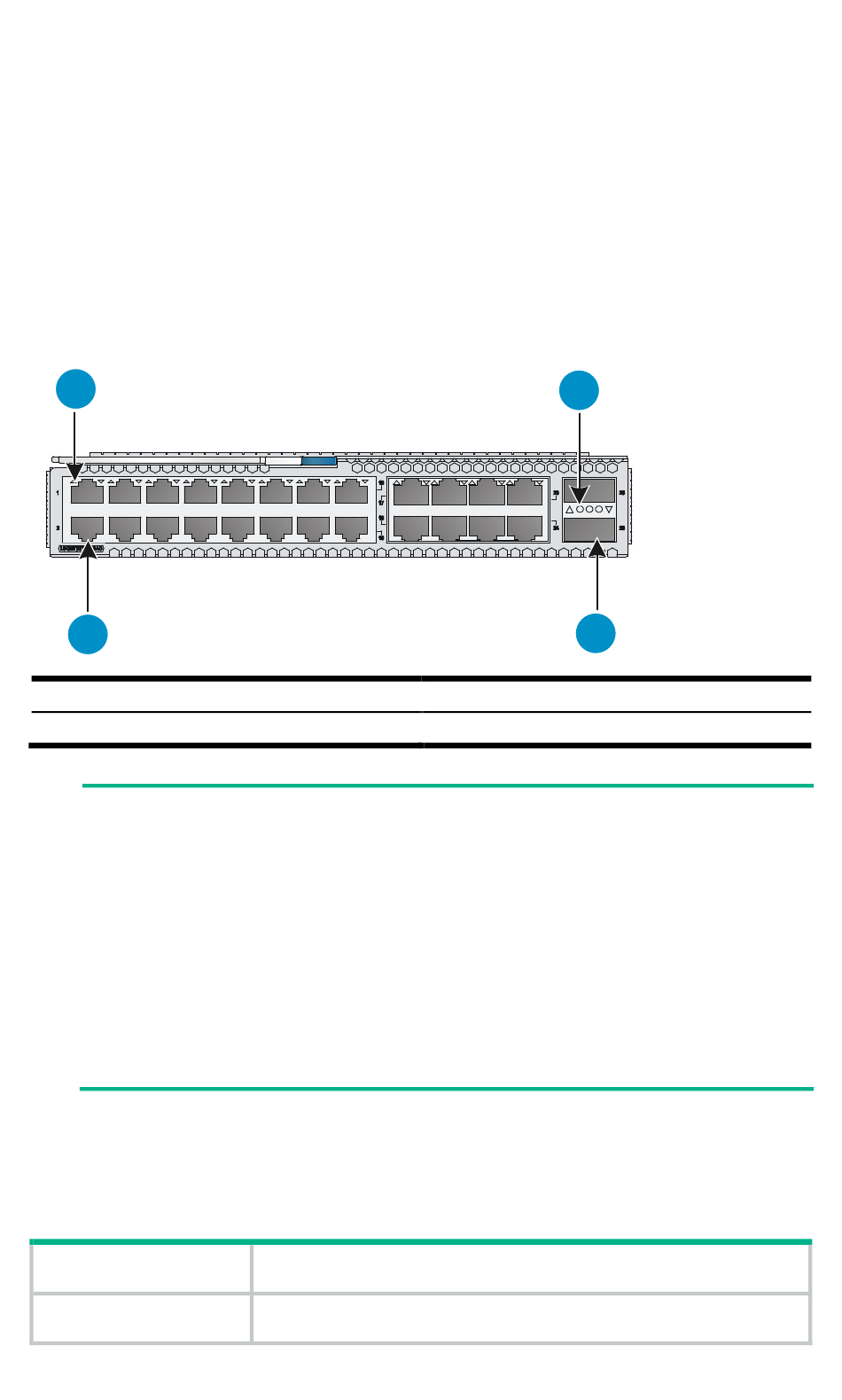

Figure 1 LSQM1TGT24QSM0 interface card front panel
1
4
(1) 10GBASE-T port LED
(3) QSFP+ port
NOTE:
• The LSQM1TGT24QSM0 interface card is currently applicable
only to H3C S7502E-XS and S7504E-XS switches. The
applicable switch models might change over time. For the
most recent list of applicable switch models, contact H3C
Support or marketing staff.
• For more information about transceiver modules and cables
available, see H3C S7500E-XS Switch Series Transceiver
Modules Compatibility Matrixes.
10GBase-T ports
Table 1 10GBase-T port specifications
Item
Connector type
user manual-6PW103
Specification
RJ-45
2
(2) QSFP+ port LED
(4) 10GBASE-T port
1
3
Advertisement
Table of Contents
Related Manuals for H3C LSQM1TGT24QSM0
Summary of Contents for H3C LSQM1TGT24QSM0
- Page 1 (3) QSFP+ port (4) 10GBASE-T port NOTE: • The LSQM1TGT24QSM0 interface card is currently applicable only to H3C S7502E-XS and S7504E-XS switches. The applicable switch models might change over time. For the most recent list of applicable switch models, contact H3C Support or marketing staff.
- Page 2 Item Specification Port standard 1/10 Gbps full duplex, MDI/MDI-X auto-sensing • Category-6 unshielded twisted pair cable: 55 m (180.45 ft) Transmission • medium and max Category-6 shielded twisted pair cable: 100 transmission m (328.08 ft) distance • Category-6A or above twisted pair cable: 100 m (328.08 ft) •...
- Page 3 LED status Description A transceiver module is installed in the port. The Steady yellow port is operating at 10 Gbps, and a link is present on the port. Flashing yellow The port is sending or receiving data at 10 Gbps. No transceiver module is installed in the port, or no link is present on the port.
- Page 4 4. Rotate inward the ejector lever as shown by callout 2 in Figure 3 until the latch locks the ejector lever in place. Figure 3 Installing an LSQM1TGT24QSM0 interface card Removing an interface card CAUTION: • Before you remove an interface card, remove the cable from it to avoid cable damage.
-
Page 5: Verifying The Installation
2 in Figure 5. Place the removed interface card in the anti-static bag. Figure 4 Removing an LSQM1TGT24QSM0 interface card Installing and removing QSFP+ transceiver modules and DAC cables For information about installing and removing QSFP+ transceiver... -
Page 6: Technical Support
▌Technical support New H3C Technologies Co., Ltd. provides customers with comprehensive technical support and service. If you purchase the products from the sales agent of New H3C Technologies Co., Ltd., please contact our sales agent or technical personnel. Website: http://www.h3c.com...
