H3C LSWM2QP2P Interface Card User Manual-6PW103
H3C LSWM2QP2P
Overview
The LSWM2QP2P interface card provides two QSFP+ ports.
LSWM2QP2P接口模块扩展卡对外可提供2个QSFP+口。
The switch models that the LSWM2QP2P interface card is applicable to may change
over time. For the most up-to-date list of applicable switch models, contact H3C Support
or marketing staff. LSWM2QP2P接口模块扩展卡适用于H3C多款交换机产品，其适用机
型的准确信息随着时间变化有更新的可能性，若您需要更详细的适配信息，请咨询H3C公
司市场人员或技术支持人员。
Installing and removing the card
Prepare the following tools before you install or remove the card: Phillips screwdriver,
flat-blade screwdriver, and ESD wrist strap. 在安装与拆卸接口模块扩展卡前，您需要
准备的工具包括十字螺丝刀、一字螺丝刀和防静电腕带。
No installation tools are provided with the device. Prepare these tools yourself. H3C不
随机提供安装工具，您需要提前准备这些安装工具。

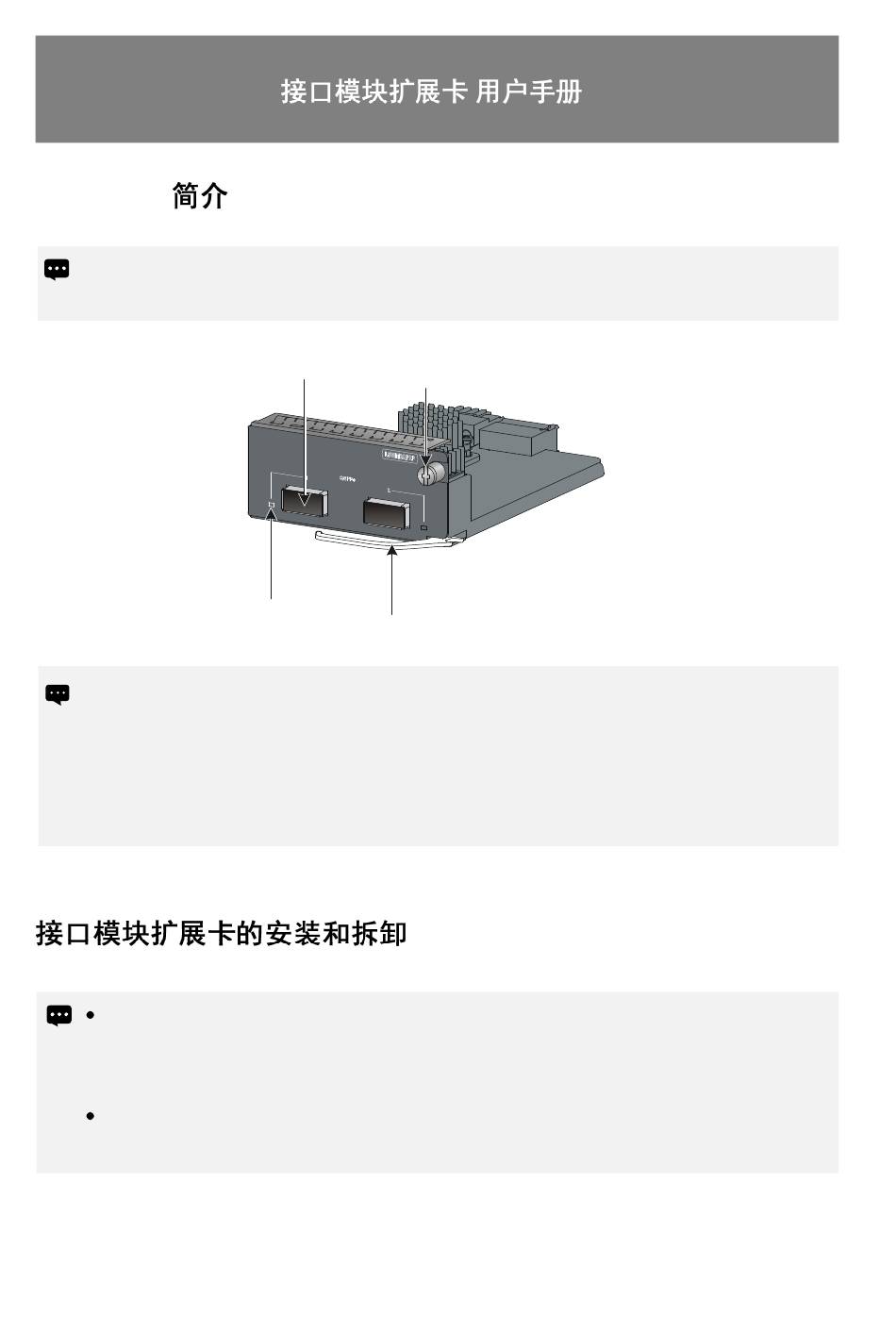

QSFP+ port
QSFP+口
QSFP+ port LED
Ejector lever
QSFP+口状态指示灯
Captive screw
松不脱螺钉
扳手
-6PW103
BOM: 3101A0H6
1
Advertisement
Table of Contents
Related Manuals for H3C LSWM2QP2P
Summary of Contents for H3C LSWM2QP2P
- Page 1 QSFP+ port LED Ejector lever QSFP+口状态指示灯 扳手 The switch models that the LSWM2QP2P interface card is applicable to may change over time. For the most up-to-date list of applicable switch models, contact H3C Support or marketing staff. LSWM2QP2P接口模块扩展卡适用于H3C多款交换机产品，其适用机 型的准确信息随着时间变化有更新的可能性，若您需要更详细的适配信息，请咨询H3C公 司市场人员或技术支持人员。...
- Page 2 Safety precautions 安全注意事项 Before you install or remove the card, wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded. 在安装和拆卸过程中，操作者 需自行准备并佩戴防静电腕带，请确保防静电腕带已经正确接地并与皮肤良好接触。 To avoid device damage, do not use excessive force when you install or remove the card.
- Page 3 ③ Hold the card with both hands and take it out slowly. 用双手水平缓慢地取出接口模块扩展卡。 Installing and removing transceiver modules and cables光模块或线缆的安装与拆卸 For the installation and removal procedures for QSFP+ transceiver modules or cables, see H3C Transceiver Modules and Network Cables Installation Guide at www.h3c.com. 对于QSFP+模块、QSFP+电缆、QSFP+ to SFP+电缆的安装与拆卸，请您参见H3C网站 发布的《H3C光模块及线缆 安装指导》中的相关内容。...
- Page 4 Modal Central Cable Model Connector bandwidth transmission wavelength specifications 型号 接口连接器 模式带宽 distance 中心波长 接口线缆规格 最大传输距离 (MHz*km) QSFP+ transceiver modules QSFP+模块 QSFP-40 2000 100m 50/125µm G-SR4-M 850 nm 4700 150m M850 QSFP-40 2000 300m 50/125µm G-CSR4- 850 nm 4700 400m MM850 Four lanes: QSFP-40...
- Page 5 LED Status 指示灯状态 Description 指示灯含义 A transceiver module is installed in the port. The port is Steady green operating at 40 Gbps, and a link is present on the port. 绿色常亮 模块已安装，端口工作在 40GE 模式下，并且端口 Link Up Flashing green The port is sending or receiving data at 40 Gbps. 绿色闪烁...
