H3C SecPath NSQM2QG2GP40 Manual

Manual version: 6PW103-20190312
H3C SecPath NSQM2QG2GP40 interface module
1 Identifier
The module identifier NSQM2QG2GP40 is in the upper right corner of the front panel.
2 About the module
The NSQM2QG2GP40 interface module provides four 1000BASE-X SFP fiber ports and two
40GBASE-R QSFP+ fiber ports. By using this module with interface switch modules, the device is
capable of providing security for 100G networks.
3 Specifications

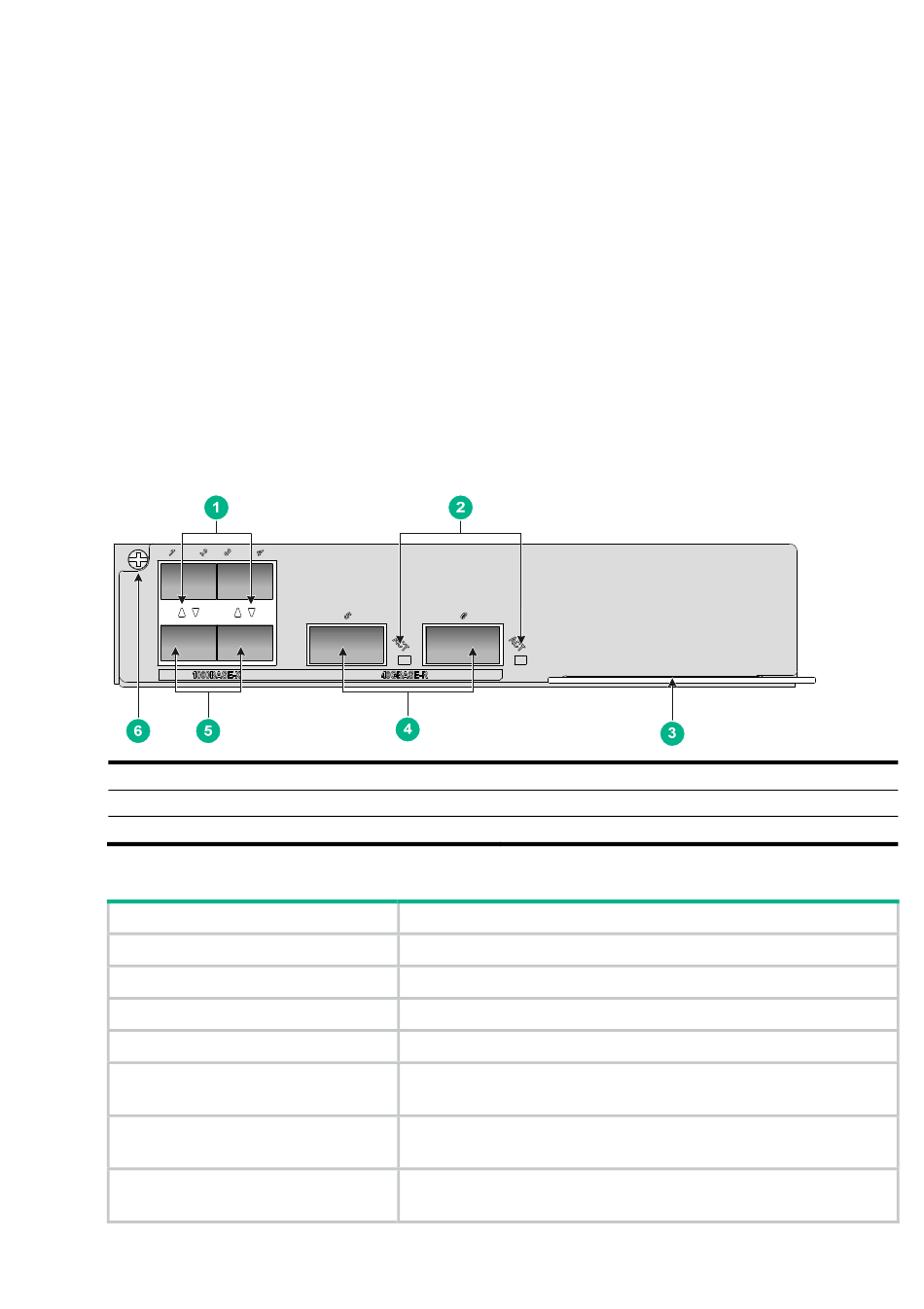

Figure 1 Front panel
(1) 1000BASE-X SFP fiber port LEDs
(3) Ejector lever
(5) 1000BASE-X SFP fiber ports
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Net weight
Hot swapping
Ports
Connector type
Ambient temperature
(2) 40GBASE-R QSFP+ fiber port LEDs
(4) 40GBASE-R QSFP+ fiber ports
(6) Captive screw
Specification
37.4 × 173.5 × 191.9 mm (1.47 × 6.83 × 7.56 in)
2 W to 10 W
0.7 kg (1.54 lb)
Not supported
•
4 × 1000BASE-X SFP fiber ports
•
2 × 40GBASE-R QSFP+ fiber ports
•
LC
•
MPO
•
Operating: 0°C to 45°C (32°F to 113°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
i
BOM: 3123A1N8
