Overview 简介
The

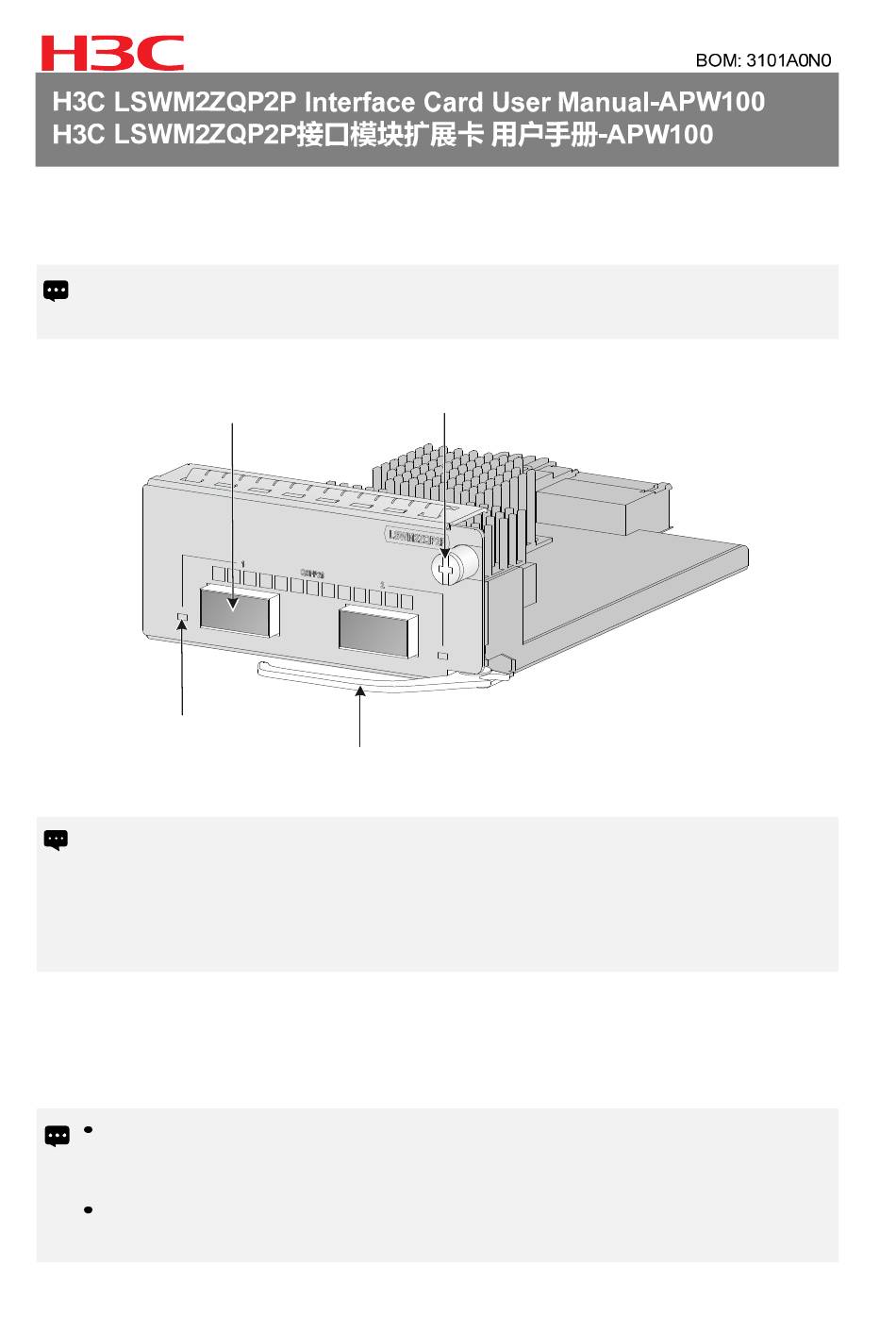

LSWM2ZQP2P interface card provides two QSFP28 ports.
LSWM2ZQP2P接口模块扩展卡对外提供2个QSFP28口
QSFP28 port
QSFP28口
QSFP28 port LED
QSFP28口状态指示灯
The switch models that the
over time. For the most up-to-date list of applicable switch models, contact H3C Support
or marketing staff.
型的准确信息随着时间变化有更新的可能性，若您需要更详细的适配信息，请咨询H3C公
司市场人员或技术支持人员。
Installing and removing the card
接口模块扩展卡的安装和拆卸
Prepare the following tools before you install or remove the card: Phillips screwdriver,
flat-blade screwdriver, and ESD wrist strap. 在安装与拆卸接口模块扩展卡前，您需要
准备的工具包括十字螺丝刀、一字螺丝刀和防静电腕带。
No installation tools are provided with the device. Prepare these tools yourself. H3C
不随机提供安装工具，您需要提前准备这些安装工具。
Captive screw
松不脱螺钉
Ejector lever
扳手
LSWM2ZQP2P
接口模块扩展卡适用于H3C多款交换机产品，其适用机
LSWM2ZQP2P
。
interface cards is applicable to may change
1
Advertisement
Related Manuals for H3C LSWM2ZQP2P
Summary of Contents for H3C LSWM2ZQP2P
- Page 1 QSFP28口状态指示灯 Ejector lever 扳手 The switch models that the interface cards is applicable to may change LSWM2ZQP2P over time. For the most up-to-date list of applicable switch models, contact H3C Support 接口模块扩展卡适用于H3C多款交换机产品，其适用机 or marketing staff. LSWM2ZQP2P 型的准确信息随着时间变化有更新的可能性，若您需要更详细的适配信息，请咨询H3C公 司市场人员或技术支持人员。 Installing and removing the card 接口模块扩展卡的安装和拆卸...
- Page 2 Safety precautions 安全注意事项 Before you install or remove the card, wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded. 在安装和拆卸过程中，操作 者需自行准备并佩戴防静电腕带，请确保防静电腕带已经正确接地并与皮肤良好接触。 To avoid device damage, do not use excessive force when you install or remove the card.
- Page 4 SFP28线缆、QSFP+模块、QSFP+线缆和QSFP+ to SFP+线缆。 H3C transceiver modules and cables available for the card are subject to change over time. For the most recent list of H3C transceiver modules and cables available for the card, contact H3C Support or marketing staff. 接口模块扩展卡支持的光模块和线缆的...
- Page 5 Modal Central Cable Max transmission Model Connector bandwidth wavelength specifications distance 型号 接口连接器 模式带宽 中心波长 接口线缆规格 最大传输距离 (MHz*km) • 1304.5～ 1317.5 • 1324.5～ 1337.5 40-GE QSFP+ transceiver modules 40G QSFP+模块 Four lanes （四条通 道）： QSFP-40G-L • R4-WDM130 1271 9/125µm SMF 10 km (6.21 miles) •...
- Page 6 Model 型号 Cable length 线缆长度 Data rate 传输速率 40-GE QSFP+ copper cables 40G QSFP+电缆 LSWM1QSTK0 1 m (3.28 ft) LSWM1QSTK1 3 m (9.84 ft) 40 Gbps LSWM1QSTK2 5 m (16.40 ft) 40-GE QSFP+ to SFP+ copper cables 40G QSFP+ to SFP+电缆 LSWM1QSTK3 1 m (3.28 ft) LSWM1QSTK4...
