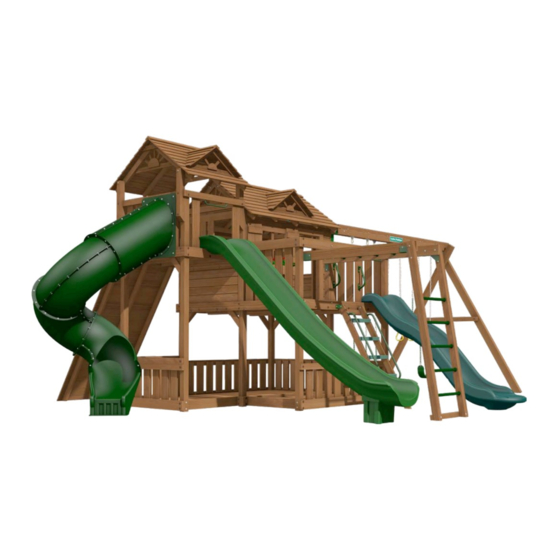

Creative Playthings Yorktown Premium YORK9WPP9 Assembly Instructions

CHILDHOOD STARTS HERE
Cartons for this Play Set:
1 63062-211 Yorktown Gym 1 (Hardware)
1 63062-222 Yorktown Gym 2 (Instructions)
1 63007-421 Lexington Gym 1 (Hardware)
1 63007-422 Lexington Gym 2
1 63062-301 Yorktown Roof (Hardware)
1 SH946-102 Access Ladder 5ft.
2 SM963-402 Dormer Brown (Hdwre & Instr)
2 SM964-402 Gable End Fan (Hdwre & Instr)
1 40456-402 End Panel Assembly (Hdwre & Instr)
1 40459-402 Double Window Panel (Hdwre & Instr)
1 40460-402 Door & Window Panel (Hdwre & Instr)
1 15166-400 10 ft. Super Wave Slide
1 63058-202 4 Position Swing Beam
1 63076-303 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 SC909-800Q Lexington Play Walls (Hdwre & Instr)
1 SC910-800Q Lexington Play Floor (Hdwre & Instr)
1 63064-101 Yorktown Porch Play Walls (Hdwre & Instr)
1 63063-101 Yorktown Porch Play Floor (Hdwre & Instr)
1 63008-221 Skybox 1 (Hdwre & Instr)
1 63008-222 Skybox 2
1 SJ926-810 Skybox Wood Roof (Hdwre & Instr)
1 SC904-800Q Skybox Play Floor (Hdwre & Instr)
1 63066-101 Yorktown Skybox Panel (Hdwre & Instr)
1 SC903-800Q Skybox Play Walls (Hdwre & Instr)
1 63079-102 Monkey Bars (Hdwre & Instr)
1 8400-202 Spiral Slide, Green
1 63033-102 Spiral Slide Skybox Mount (Hdwre & Instr)
1 15140-400 14ft Swoosh Slide, Green
1 50398-700 14ft Swoosh Slide Pack (Hdwre & Instr)
1 SH304-101Q Pinnacle Rock Wall (Hdwre & Instr)
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
1 AG943-400 Slide Handle (Hdwre & Instr)
1 63073-101 Clubhouse Window Pack (Hdwre & Instr)

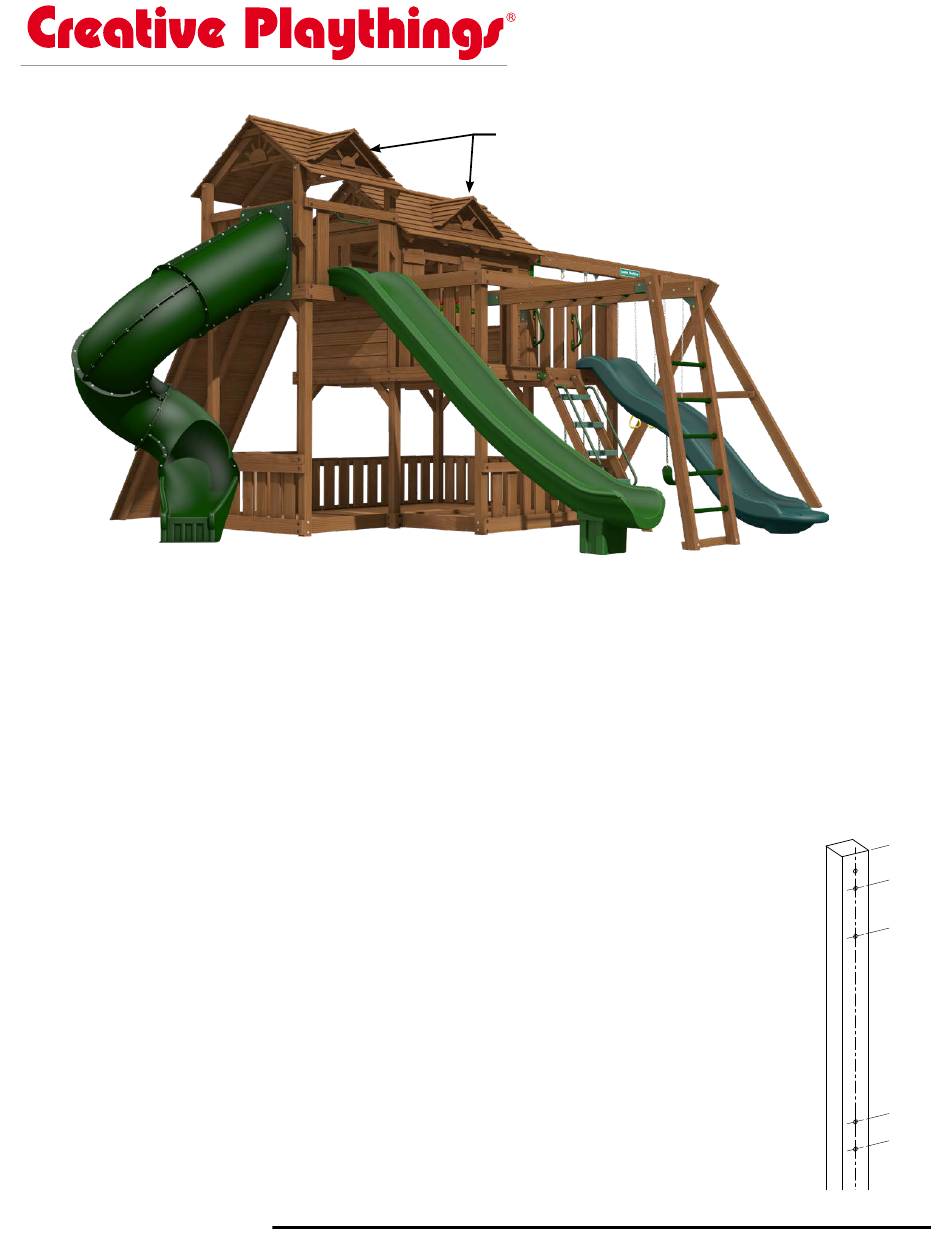

© Copyright 2018, Creative Playthings
YORK9WPP9
Yorktown Premium Pack 9
Dormer
The components of this gym can be combined with
others to create different play sets. This is the best
order of assembly to create this specific set.
Read this sheet and all instructions included with the
different parts before assembly.
See the Instructions and Owner's Manual included in
carton 63062-222 for important safety information.
• Start by assembling the Yorktown tower. Instructions are in carton
63067-222. Other instructions and hardware are in the cartons
noted at left.
• Yorktown step 2. Omit the sandbox end on the end where the
Skybox is to mount. It will be replaced when installing the play
floors. Do not install the Sandbox Center on the
front of the tower. Use the Floor Transition from
the Yorktown Play Floor (63063-101). See page
2 of the Yorktown Play Floor instructions. Secure
the Sandbox backs but wait to install the floors.
• Yorktown step 18. The 9ft Beam will be mounted
in the position pictured above.
• After Yorktown step 22, before installing Panels:
Find the posts adjacent the Skybox. On the outer
face, drill 3/8" diameter holes through each post
at 4", 9-1/2", 30-7/8", and 34" below the top of the
post. Insert 5/16" weld nuts into the inner face of
each hole. The Panels will capture the weld nuts.
• Yorktown step 24. Do not install the end wall pan-
el adjacent to the Skybox tower.
• Yorktown step 28 thru 31. Do not install the panel
frame, panel board, or gable filler adjacent to the
Skybox tower.
Dimensions of assembled package:
27' 9" wide x 21' 3" deep x 12' 9" tall
YORKTOWN PREMIUM PACK 9
YORK9WPP9-100 Rev B (05-20)
0 "
4 "
"
9 - 1 / 2
8 "
3 0 - 7 /
3 4 "
