Creative Playthings Lexington Premium Pack 17 Assembly Instructions

CHILDHOOD STARTS HERE
The components of this gym can be combined with others to
create different play sets. This is the best order of assembly
to create this specific set.
Read this sheet and all instructions included with the
different parts before assembly.
See the Instructions and Owner's Manual included in carton
63007-445 for important safety information.

Cartons for this Play Set:

1 63007-421 Lexington Gym 1 (Hardware)
1 63007-422 Lexington Gym 2
1 63007-423 Lexington Gym 3
1 63007-445 Lexington Roof (Hdwre & Instr)
1 SH946-102 Access Ladder, 5ft
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
1 63058-202 4 Position Swing Beam
1 63060-222 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 15166-400 10 ft. Super Wave Slide
1 SM964-402 Gable Fans (Hdwre & Instr)
1 SM963-402 Dormer (Hdwre & Instr)
1 SH922-800Q Ramp (Hdwre & Instr)
1 AH201-102Q Rock Climbing Wall (Hdwre & Instr)
1 SC909-800Q Lexington Play Walls (Hdwre & Instr)
1 SC910-800Q Lexington Play Floor (Hdwre & Instr)
1 63008-221 Skybox 1 (Hdwre & Instr)
1 63008-222 Skybox 2
1 SJ926-810 Skybox Wood Roof (Hdwre & Instr)
1 SC904-800Q Skybox Play Floor (Hdwre & Instr)
1 15140-400 14ft Swoosh Slide
1 50398-700 Swoosh Skybox Kit (Hdwre & Instr)
2 AG943-400 Slide Handle (Hdwre & Instr)
1 AP970-104 Bubble Panel (Hdwre & Instr)
1 63081-102 Ice Cream Stand (Hdwre & Instr)
© Copyright 2018, Creative Playthings

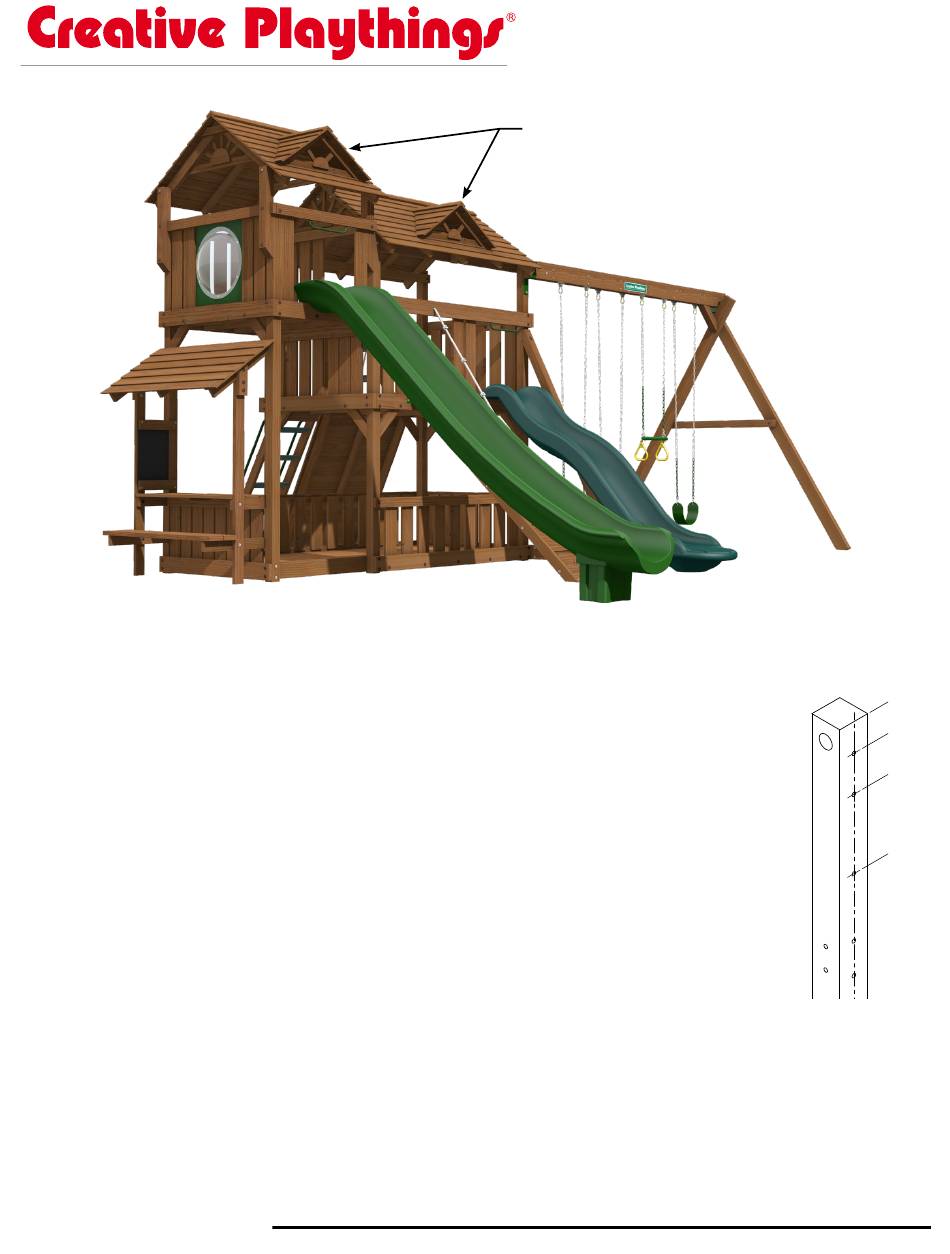

Lexington Premium Pack 17
Dormers
• Start by assembling the Lexington tower. Instructions and hard-
ware are in the cartons noted at left. The gym is rotated 90° from
the position shown in the instructions.
• Wait to install the Access Ladder, Slide, and
Wall Slats until after the rest of the play set is
complete.
• Lex step 2. Omit the sandbox end from the end
of the gym adjacent to the Skybox. It will be re-
placed with the transition from the Skybox Play
Floor.
• Lex step 7. Do not install the safety rail.
• Lex step 14. Do not install the end wall support
on the Skybox end of the tower.
• Lex step 15. The swing mount isn't needed.
• Lex step 25. Before installing the roof, find the
post where the swing beam will mount. Drill
7/16" diameter holes through the post at 3",
7-1/4" and 15-1/2" below the top of the post as
shown at right. The beam will be mounted to the front of the post
using these holes. Insert one 5/16" weld nut into the top hole on
the inside face of the post. Be sure the threads on the weld nut are
clear, it will be captured by the roof support. Install the roof.
• Mount the Swing Beam using instructions and hardware included
in 63060-222. Mount the beam to the previously drilled holes at
right rather than the way shown in the instructions. You may need
to temporarily disconnect the roof from the post to put the beam in
place.
LEXI9WPP17
Dimensions of assembled package:
24' 4" wide x 18' 6" deep x 12' 9" tall
LEXINGTON PREMIUM PACK 17
LEXI9WPP17-100 Rev C (05-20)
