INSTALLATION GUIDE
BNC-2144

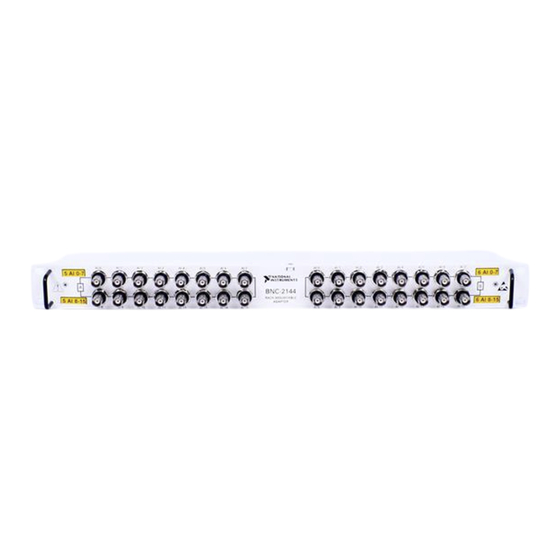

The BNC-2144 is a 32-channel rack-mount adapter for interfacing to the NI PXI-449X family.
The BNC-2144 has the following features:
•
32 analog input channels (BNC)
•
19 in. rack-mount housing
What You Need to Get Started
To set up and use the BNC-2144, you need the following items:
❑
Hardware
–
BNC-2144
–
NI PXI-449X Dynamic Signal Acquisition (DSA) device
❑
Documentation
–
BNC-2144 Installation Guide
–
Read Me First: Safety and Radio-Frequency Interference
–
NI PXI-449X Specifications
–
NI Dynamic Signal Acquisition User Manual
–
DAQ Getting Started Guide
❑
Tools
–
1/8 in. flathead screwdriver
❑
Cables
–
Infiniband-to-Infiniband cables (part numbers 197516A-01, 197516A-02)
–
BNC-to-BNC cables (part numbers 779697-01, 779697-02)
If you do not have NI-DAQmx 8.6 or later, or one of the documents, you can download them from
, or contact an NI sales representative.
ni.com
Theory of Operation
Caution
Refer to the Read Me First: Safety and Radio-Frequency Interference document before
removing equipment covers or connecting/disconnecting any signal wires. Refer to the
section of this document for important safety and compliance information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments BNC-2144
Summary of Contents for National Instruments BNC-2144
- Page 1 INSTALLATION GUIDE BNC-2144 The BNC-2144 is a 32-channel rack-mount adapter for interfacing to the NI PXI-449X family. The BNC-2144 has the following features: • 32 analog input channels (BNC) • 19 in. rack-mount housing What You Need to Get Started To set up and use the BNC-2144, you need the following items: ❑...
- Page 2 Device B AI0–AI7 Infiniband Connector Device A AI8–AI15 Infiniband Connector Figure 1. BNC-2144 Parts Location Diagram Connecting Signals Figure 2 shows an example of a measurement system with the BNC-2144. Sensors NI PXI-449X Devices BNC-2144 Figure 2. Connecting the BNC-2144 BNC-2144 Installation Guide ni.com...
- Page 3 Specifications This section lists the specifications for the BNC-2144. These specifications are typical at 25 °C unless otherwise stated. Analog Input Input channels ............32 Maximum input voltage Positive terminal ..........±10 V Negative terminal...........±1 V Overvoltage protection Positive terminal ..........±30 V Negative terminal...........±5 V...
- Page 4 Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
