INSTALLATION GUIDE
BNC-2110 D
BNC A
DAPTER
Introduction
What You Need to Get Started
natinst.com ™ is a trademark of National Instruments Corporation. Product and company names mentioned herein are trademarks or trade
names of their respective companies.
321860D-01
© Copyright 1998, 1999 National Instruments Corp. All rights reserved.
ESKTOP AND
This installation guide describes how to install and configure your
BNC-2110 accessory with an E Series or waveform generation DAQ
device. Waveform generation DAQ devices refer to 671X and 672X
devices.

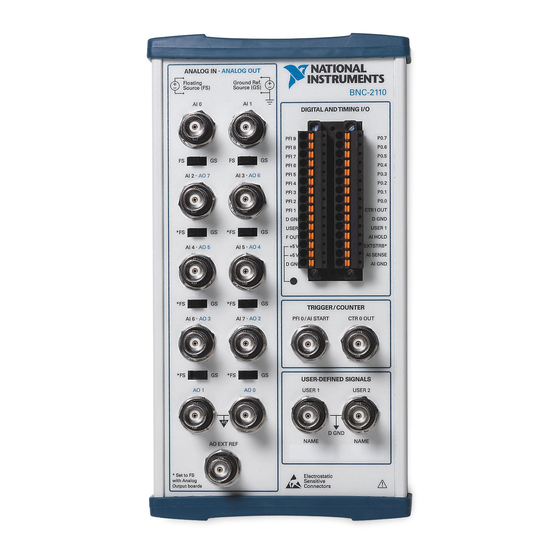

The BNC-2110 is a desktop and DIN rail-mountable BNC adapter you
can connect directly to data acquisition (DAQ) devices. The BNC-2110
includes 15 BNC connectors and a terminal block with 30 pins.
The BNC-2110 has a 68-pin I/O connector that connects to the E Series and
waveform generation DAQ devices. The BNC-2110 is ideal for simplifying
connections between your measurement apparatus and your DAQ device
in laboratory, test, and production environments.
To set up and use your BNC-2110 accessory, you need the following:
BNC-2110 BNC Adapter
BNC-2110 Desktop and DIN Rail-Mountable BNC Adapter
Installation Guide
E Series or waveform generation DAQ device and the appropriate
cable
Small straight-blade screwdriver (supplied)
Detailed specifications for the BNC-2110 are in the Specifications section
found later in this guide.
DIN R
-M
AIL
OUNTABLE
August 1999
Advertisement
Related Manuals for National Instruments BNC-2110
Summary of Contents for National Instruments BNC-2110
- Page 1 Detailed specifications for the BNC-2110 are in the Specifications section found later in this guide. natinst.com ™ is a trademark of National Instruments Corporation. Product and company names mentioned herein are trademarks or trade names of their respective companies. 321860D-01 ©...
- Page 2 5 Power Indicator Light Figure 1. BNC-2110 Front Panel The BNC-2110 is compatible with all E Series devices as well as with the waveform generation DAQ devices. Some of the connectors on this accessory may have a different function depending on the device to which it is connected.
- Page 3 (labeled FS). In the floating source switch position, the amplifier negative terminal connects to ground through a 5 kΩ resistor in parallel with a 0.1 µF capacitor. Table 2 shows the BNC-2110 switch configuration options. © National Instruments Corporation...
-
Page 4: Connecting Analog Outputs
Connecting Analog Outputs The BNC-2110 provides BNC connectors for up to eight analog output channels. These connectors are labeled DAC<0..7>OUT. The number of these connectors used for this purpose depends on the device connected to the adapter. - Page 5 Two user-defined BNC connectors, USER1 and USER2, are connected to the terminal blocks on the BNC-2110 front panel. These terminals and their associated BNC connectors give you the flexibility to choose up to two additional digital/timing signals. For example, if an application...
- Page 6 Table 3. BNC-2110 Digital Screw Terminal Signal Descriptions Signal Description PFI<9..1> Programmable Function Input Lines 9 through 1 DGND Digital Ground—This pin supplies the reference for the digital signals at the I/O connector as well as the +5 VDC supply.
- Page 7 Do not connect the BNC-2110 to any device other than the National Instruments E Series or waveform generation DAQ devices. Doing so can damage the BNC-2110, the DAQ device, or host computer. National Instruments is not liable for damages resulting from these connections.
-
Page 8: Installing Your Bnc-2110
Note You can either place the BNC-2110 on a workbench near the host computer or use the available DIN rail-mount kit. Make sure that switches ACH 0 through ACH 7 are set correctly for your application. -
Page 9: Specifications
Warning The BNC-2110 is not designed for input voltages greater than 42 V, even if a user-installed voltage divider reduces the voltage to within the input range of the DAQ device. Input voltages greater than 42 V can damage the BNC-2110, any device connected to it, and the host computer.
