Introduction
What You Need to Get Started
Product and company names are trademarks or trade names of their respective companies.
321860B-01
ESKTOP AND
This installation guide describes how to install and configure your
BNC-2110 accessory.

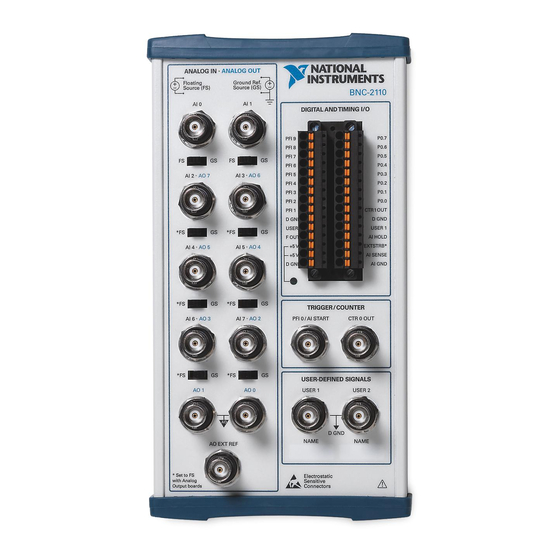

The BNC-2110 is a desktop and DIN rail-mountable BNC adapter you
can connect directly to data acquisition (DAQ) devices. The BNC-2110
includes 15 BNC connectors and a digital screw terminal with 30 pins.
The BNC-2110 has a 68-pin I/O connector that connects to the PCI-60XXE
and PCI-61XXE DAQ devices. The BNC-2110 is ideal for simplifying
connections between your measurement apparatus and your DAQ device
in laboratory, test, and production environments.
To set up and use your BNC-2110 accessory, you will need the following:
BNC-2110 BNC Adapter
BNC-2110 Desktop and DIN Rail-Mountable BNC Adapter
Installation Guide
PCI-60XXE or PCI-61XXE device and the appropriate cable
Detailed specifications for the BNC-2110 are in the Specifications section
later in this guide.
© Copyright 1998 National Instruments Corp. All rights reserved.
DIN R
-M
AIL
OUNTABLE
June 1998
