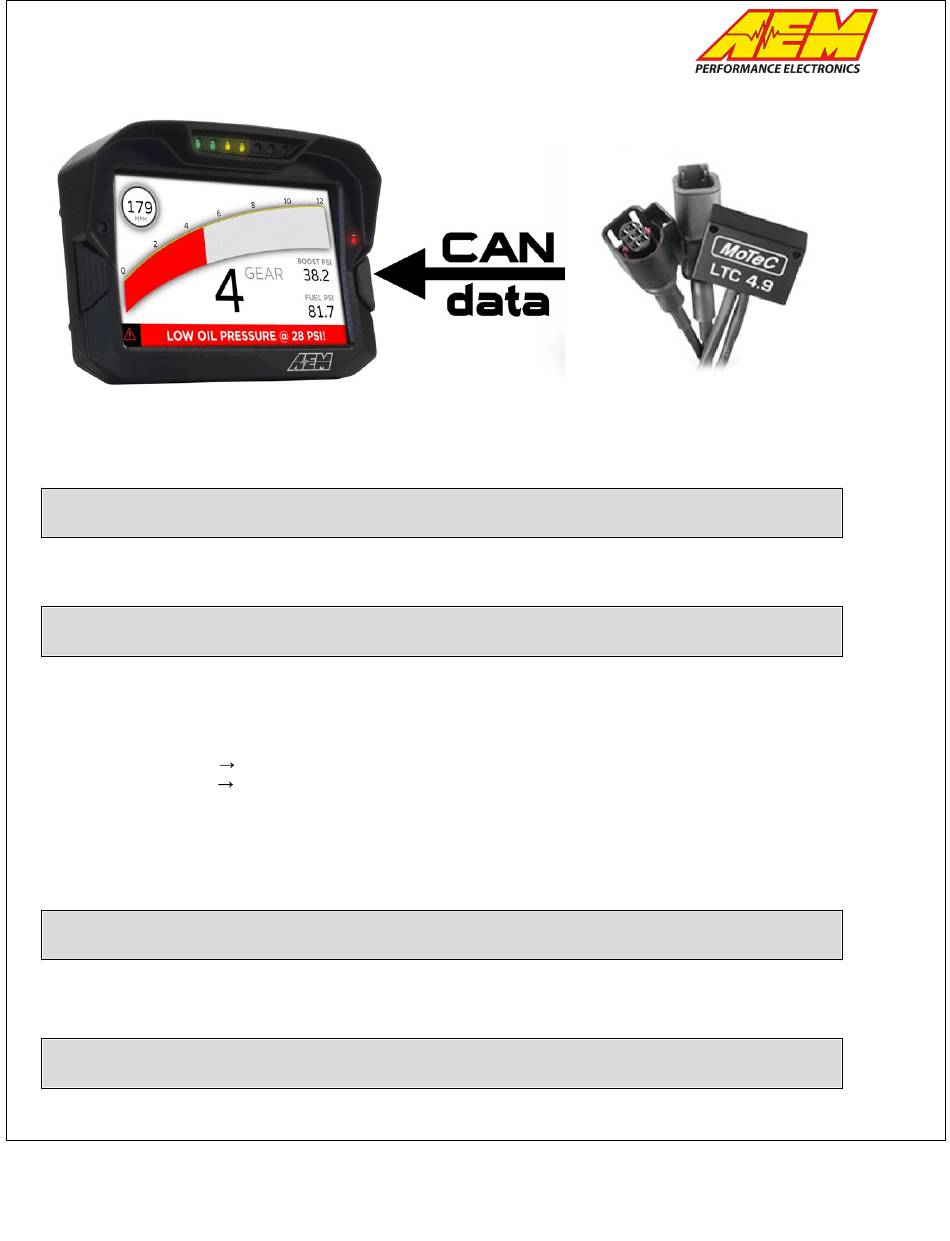

SETUP GUIDE
Supported Devices

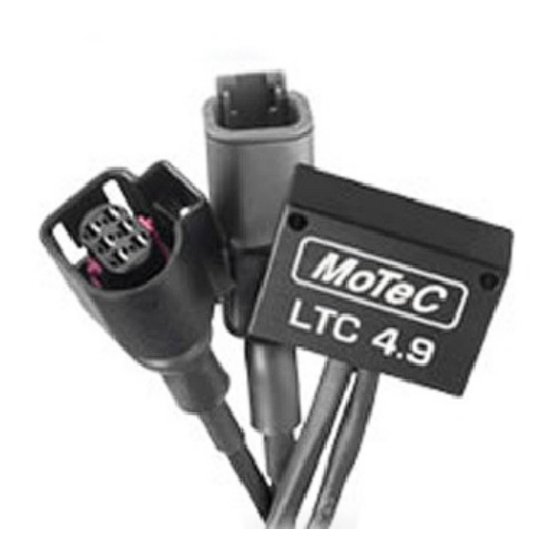

MoTeC LTC / LTCD / LTC NGK / LTCD NGK
CAN Bus Wiring
AEM CD has 2 separate CAN ports. For 3rd party devices, AEM recommends you use AEM CAN Bus 2, whose
connections are contained in a 2 pin Deutsch DTM connector. On older harnesses it may be in an unterminated,
twisted/shielded flying lead in the dash harness.
MoTeC LTC (CAN HIGH)
MoTeC LTC (CAN LOW)
The AEM CD Dash has a software selectable CAN termination resistor. Each network needs 2 terminating
resistors, one at each end. The LTC wideband does not have an internal terminating resistor and relies on external
Terminating plugs. You can either use those or replace one of them with the internal CD Dash resistor. You must
have 2 in total, one at each end of the network.
MoTeC LTC Software Setup
The MoTeC LTC Manager software is not required if using a single LTC or LTCD unit pre-configured by MoTeC.
The DBC file provided for the LTC/LTCD by AEM matches this default configuration.
Supported Channels
The AEM CD Dash supports 16 unique channels transmitted from the MoTeC LTC and 32 from the LTCD.
This product is legal in California for racing vehicles only and should never be used on public
highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250,
MoTeC LTC to CD Dash
AEM CD "CAN 2" Pin 1 (CAN 2+), Gray wire in twisted/shielded pair
AEM CD "CAN 2" Pin 2 (CAN 2-), Black wire in twisted/shielded pair
Phone: (310) 484-2322 Fax: (310) 484-0152
Advertisement
Related Manuals for AEM MoTeC LTC to CD Dash
Summary of Contents for AEM MoTeC LTC to CD Dash
- Page 1 CAN Bus Wiring AEM CD has 2 separate CAN ports. For 3rd party devices, AEM recommends you use AEM CAN Bus 2, whose connections are contained in a 2 pin Deutsch DTM connector. On older harnesses it may be in an unterminated, twisted/shielded flying lead in the dash harness.
- Page 2 CD Dash) the CAN bus channel data from a MoTeC LTC or LTCD. The following steps will show you how to quickly setup your LTC/LTCD to work with an existing AEM DashDesign Layout. A MoTeC LTC was used for this example but the same steps would be used to setup a LTCD / LTC NGK / LTCD NGK.
- Page 3 4. Under the “CAN Receive” tab, click the drop down next to “Show” and select “Port 2” This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 4 5. Under the “CAN Receive” tab, select “Import CAN…” This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 5 6. Navigate to the .aemcan (dbc) file for your application. Select the file and click “Open”. This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 6 Once you have selected the channels you wish to import, click “Import”. This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 7 If they are not, go back to step 4 and try again. As you can see below all of the This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 8 AFR Gas (Stoich 14.65)” or whichever one matches the stoich ratio of your fuel. This product is legal in California for racing vehicles only and should never be used on public highways. AEM Performance Electronics, 2205 W. 126th Street Unit A, Hawthorne, CA 90250, Phone: (310) 484-2322 Fax: (310) 484-0152...
- Page 9 “File>Upload to Display…” Once the upload has completed unplug the dash from the computer. You should now be able to view the AFR from your MoTeC LTC/LTCD device on the AEM CD Dash. This product is legal in California for racing vehicles only and should never be used on public highways.
