Saxby Lighting 75145 Instruction Leaflet

Instruction leaflet
40W LED Driver
75145/(ML40C-PDV1)

Features

• Flicker-free for whole dimming range
• Stand-by power below 0.5W
• Primary dimming with push & DALI dimming
• Secondary dimming with 1-10V dimmer
• Can be dimmed via a potentiometer
• Protection against short circuit/over heat/over load

Electrical Specification

• Rated voltage: 220-240V AC, 50/60Hz
• Rated current: 0.25A (max)

Connection

• Start with setting the output current. The current can be easily configured by choosing
the correct combination on the DIP switches (see Fig. 1)
• Depending on chosen dimming preference, connect the luminaires to the driver
according to the wiring diagram overleaf (See Fig. A, B, or C)
• This driver can also be wired in parallel.
• Please Note:- selected dimmer must be wired according to manufacturer's instruction.
Push Dimming ( see wiring diagram Fig. A)
1. Switch ON/OFF within 120ms-1sec to switch unit ON and OFF.
2. Switch once. Gradual dimming range will initiate >1sec.
3. Switch once to pause on desired dimmed level.
4. Switch once again to initiate gradual dimming range >1 sec in reverse direction.
5. Repeat steps 3/4 as necessary.
DALI Dimming ( see wiring diagram Fig. B)
• This driver has a built in DALI Interface.
1-10V Dimming ( see wiring diagram Fig. C)
• This driver supports any active 1-10V dimmer.
www.saxbylighting.com
Saxby Lighting. BH23 3PE
• Operating temperature: -25
• Dimming: DALI, PUSH & 1-10V
• Output voltage: 700mA 6~58V DC 4.2-40W;
800mA 6~50V DC 4.8-40W;
900mA 6~45V DC 5.4-40W;
950mA 6~42V DC 5.7-40W;
1050mA 6~38V DC 6.3-40W;
1200mA 6~33V DC 7.2-40W;
• Max. cable length in DALI system: 300m
• DALI standard: IEC62386-102, IEC 62386-207
C-50 C
o o

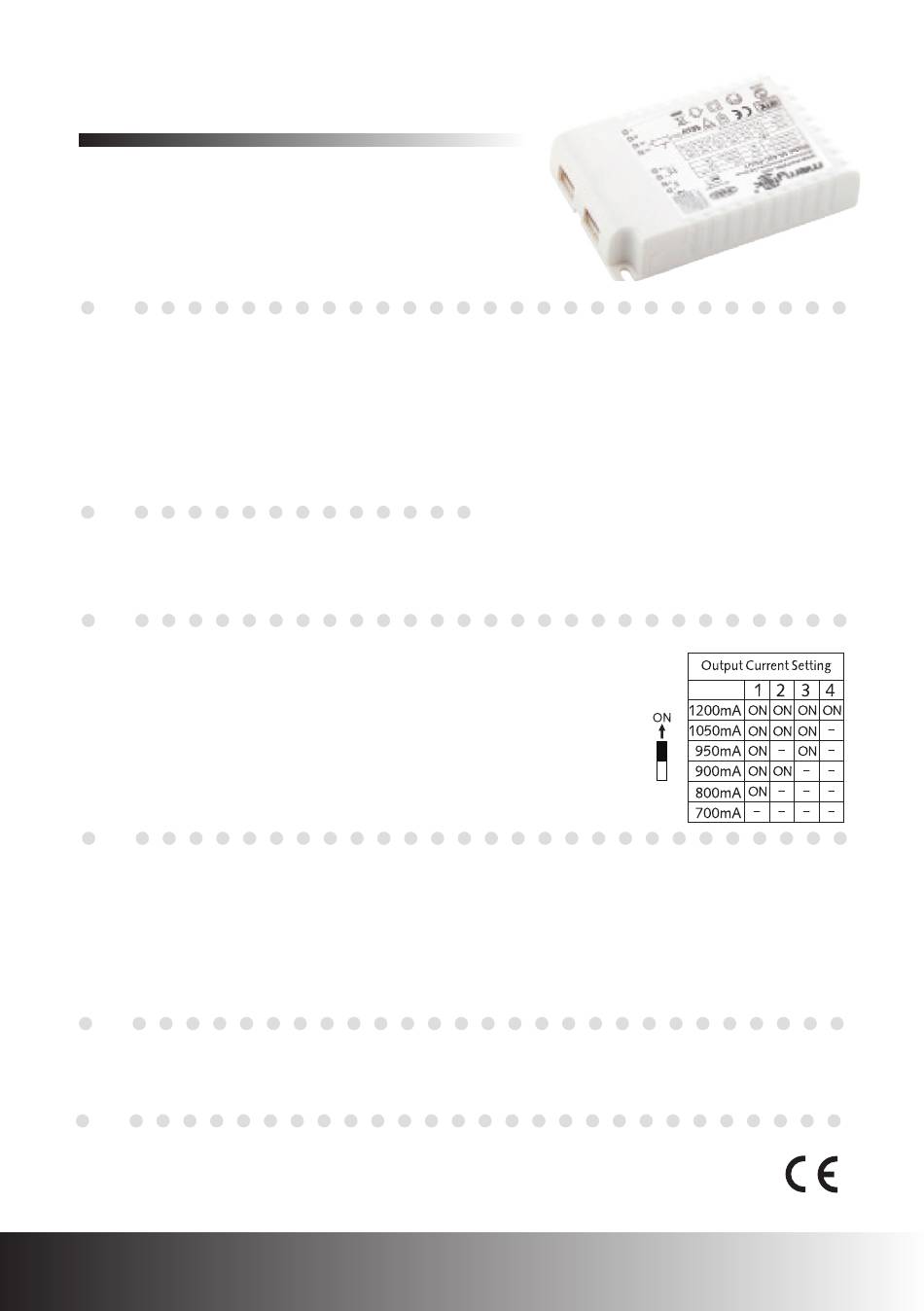

Fig. 1
Iss 1 09112017
