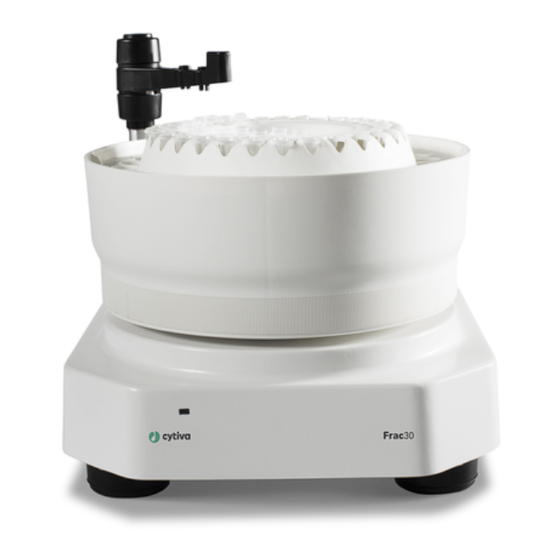

Frac30
Unpacking Instructions
Read this before unpacking Frac30
This instruction contains information that is important for safety during the unpacking of
Frac30. Read the whole instruction carefully before starting to unpack the Fraction
collector.
When you receive the delivery
•
Record on the receiving documents if there is any apparent damage on the delivery
box. Inform your Cytiva representative of such damage.
•
Move the delivery box to a protected location indoors.
About this instruction
This instruction covers unpacking of Frac30. See ÄKTA™ start Operating Instructions for
instructions on how to install Frac30.
Notes
Note:
cytiva.com
A note is used to indicate information that is important for trouble-free and
optimal use of the product.
29027102 AE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for cytiva Frac30
Summary of Contents for cytiva Frac30
- Page 1 Frac30 Unpacking Instructions Read this before unpacking Frac30 This instruction contains information that is important for safety during the unpacking of Frac30. Read the whole instruction carefully before starting to unpack the Fraction collector. When you receive the delivery •...
-
Page 2: Safety Notices
Never lift Frac30 by the Dispenser arm. This may damage the Fraction collector. Use the lifting handle on the bottom plate. Note: Do not damage or break the warranty seal label during unpacking of Frac30. Note: Save all the original packing material. If the system has to be repacked, for transportation or otherwise, it is important that the system can be safely packed using the original packing material. - Page 3 Step Action Open the Frac30 delivery box by cutting the adhesive tape at the top of the box. Take out and read the Unpacking Instructions. Holding the red strap, lift the Fraction collector out of the delivery box. Place the Fraction collector on the laboratory bench.
- Page 4 Step Action Open the strap lock and remove the strap. Remove the foam cushion from the top of the Fraction collector. Frac30 Unpacking Instructions 29027102 AE...
- Page 5 Step Action Remove the foam cushion from the bottom of the Fraction collector by carefully lifting the Fraction collector. Remove the plastic bag. Frac30 Unpacking Instructions 29027102 AE...
- Page 6 Gently move the Dispenser arm counterclockwise to the end position. • Push the Drive assembly and hold it at the retracted position. At the same time, lift the Bowl assembly. Remove the foam cushion located on the Base unit. Frac30 Unpacking Instructions 29027102 AE...
- Page 7 • Orient the Bowl to match the aligning groove and the aligning features located on the Bowl holder. • Slightly push the Drive assembly laterally and lower the Bowl assembly on to the Base unit. Frac30 Unpacking Instructions 29027102 AE...
- Page 8 © 2020–2021 Cytiva All goods and services are sold subject to the terms and conditions of sale of the supplying company operating within the Cytiva business. A copy of those terms and conditions is available on request. Contact your local Cytiva representative for the most current information.
