Summary of Contents for KaVo PROPHYflex 3

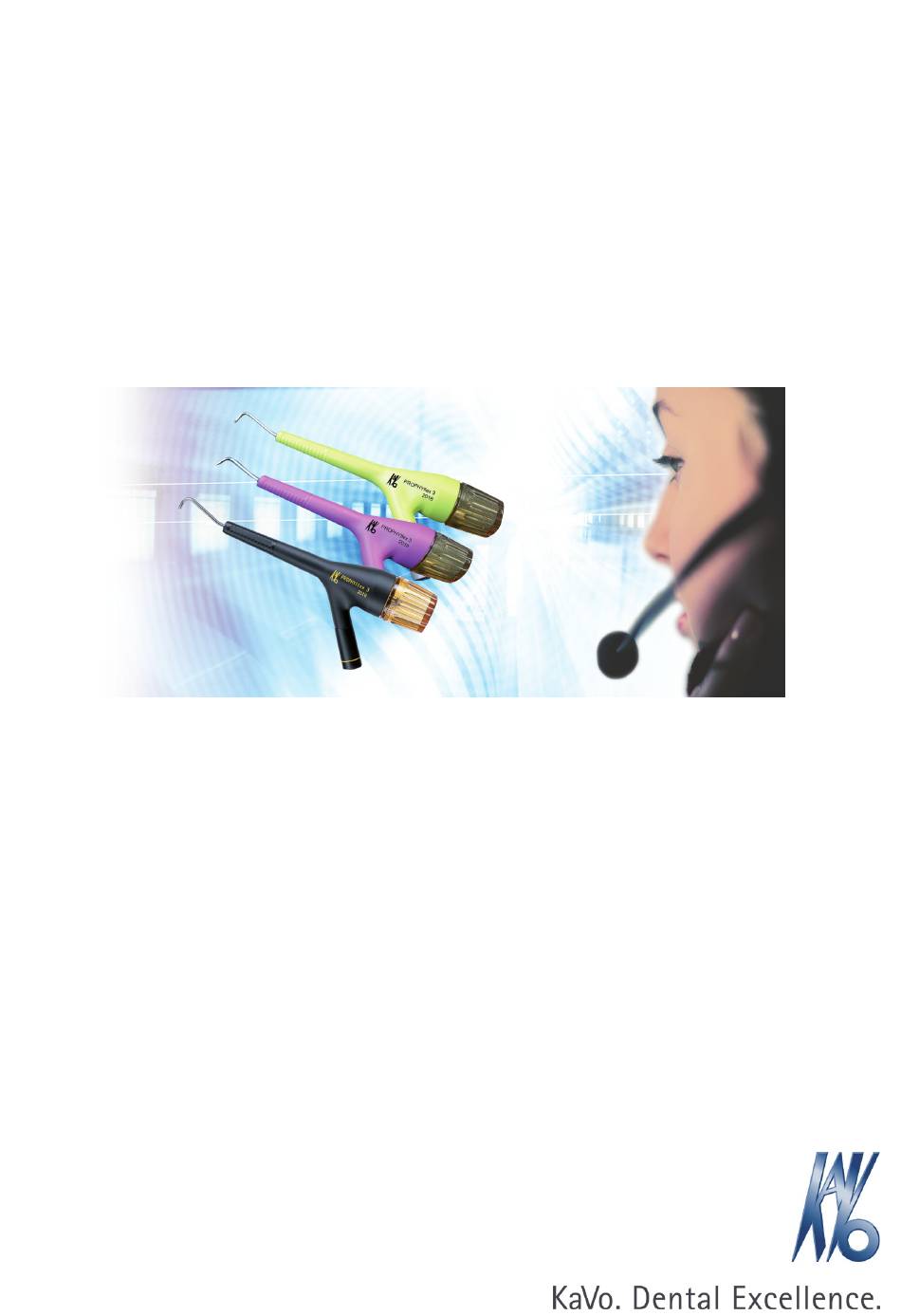

- Page 1 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 Always be on the safe side.
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 Contents Contents 1 User instructions............................... 4 2 Safety................................5 2.1 Description of safety instructions......................5 2.2 Safety instructions............................ 5 3 Product description............................8 3.1 Purpose – Intended use ........................... 8 3.2 Technical data............................ -
Page 4: User Instructions
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 1 User instructions | 1 User instructions Dear User Congratulations on purchasing this KaVo quality product. By following the instructions below you will be able to work smoothly, economically and safely. -
Page 5: Safety
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 2 Safety | 2.1 Description of safety instructions 2 Safety 2.1 Description of safety instructions Warning symbol Structure DANGER The introduction describes the type and source of the hazard. - Page 6 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 2 Safety | 2.2 Safety instructions CAUTION Allergic reactions to PROPHYflex powder. The added flavourings can cause allergic reactions in individual patients. ▶ Please explain this during the patient interview and select a suitable powder.
- Page 7 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 2 Safety | 2.2 Safety instructions CAUTION All parts and products with sensitive surfaces must be removed from the treatment area. Wiping them off with a cloth can easily cause scratches in sensitive surfaces.
-
Page 8: Product Description

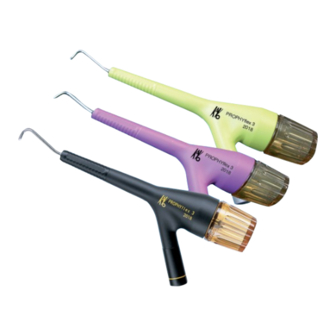

Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 3 Product description | 3.1 Purpose – Intended use 3 Product description PROPHYflex 3 – 2018 black Mat. no. 1.000.4672 PROPHYflex 3 – 2018 violet Mat. no. 1.006.9926 PROPHYflex 3 –... -
Page 9: Scope Of Delivery
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 3 Product description | 3.3 Scope of delivery 3.3 Scope of delivery The set consists of: ① 1 PROPHYflex 3 - 2018 ② 1 cannula ③ 1 cleaning drill ④... -
Page 10: Start Up And Shut Down
▪ Small water volume = little cleaning efficiency and a lot of dust. ▪ Large water volume = great cleaning efficiency and less dust. Note As the PROPHYflex 3 - 2018 does not require any light or airspray, these functions will need to be deleted. 4.3 Check the pressure CAUTION Compressed air connection on devices. -
Page 11: Check O-Rings
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 4 Start up and shut down | 4.4 Check O-rings 4.4 Check O-rings CAUTION Missing or damaged O-rings. Malfunctions and premature failure. ▶ Make sure that all O-rings are on the coupling and undamaged. -
Page 12: Operation
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.1 Attaching the medical device 5 Operation Note At the beginning of each workday, the water-conducting systems should be rinsed for at least 2 min. without the medical device being attached. -
Page 13: Inserting The Cannula
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.4 Inserting the cannula The flow rate of the powder can be adjusted by changing the P-nozzle ①. ▪ P-nozzle G = larger powder volume ▪... - Page 14 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.6 Instructions for use for PROPHYflex Pulver, PROPHYpearls®, PROPHY Superpearls®, PROPHYflex Per‐ io Powder PROPHYflex powder PROPHYpearls PROPHYflex Perio Powder ® Superpearls ® Application:...
- Page 15 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.6 Instructions for use for PROPHYflex Pulver, PROPHYpearls®, PROPHY Superpearls®, PROPHYflex Per‐ io Powder PROPHYpearls ® and PROPHY Superpearls ® CAUTION Hazard from the use of PROPHYflex on the gingiva.
- Page 16 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.6 Instructions for use for PROPHYflex Pulver, PROPHYpearls®, PROPHY Superpearls®, PROPHYflex Per‐ io Powder Preparation ▶ Insert the reduced PROPHYflex P-nozzle K (recess) (Mat. no. 0.573.0002).
- Page 17 Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 5 Operation | 5.6 Instructions for use for PROPHYflex Pulver, PROPHYpearls®, PROPHY Superpearls®, PROPHYflex Per‐ io Powder 30° 60° Glycine (PROPHYflex Perio Powder): working angle 30 to 60 ▶...
-
Page 18: Troubleshooting
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 6 Troubleshooting | 6.1 Cleaning a blocked cannula 6 Troubleshooting Preventive measures After each treatment and before each sterilisation, unscrew the powder container in an anticlockwise direction and replace it with a clean powder container. Mount the PRO‐... -
Page 19: Preparation Methods According To Iso 17664
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 7 Preparation methods according to ISO 17664 | 7.1 Preparation at the site of use 7 Preparation methods according to ISO 17664 7.1 Preparation at the site of use WARNING Hazard from nonsterile products. -
Page 20: Automated Internal Cleaning
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 7 Preparation methods according to ISO 17664 | 7.3 Disinfection ▶ Cover the medical device with the KaVo CLEANpac bag, and place it on the cor‐ responding care adapter. Press the spray button three times for 2 seconds each time. -
Page 21: Manual Disinfection - Internal
CAUTION Do not clean the PROPYflex with oils or care spray. Malfunction or damage to the product. ▶ The PROPHYflex 3 must not be lubricated with oil or with care spray. 7.6 Packaging Note The sterilisation bag must be large enough for the handpiece so that the bag is not stretched. -
Page 22: Sterilisation
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 7 Preparation methods according to ISO 17664 | 7.7 Sterilisation ▶ Individually seal the medical device in the sterilised item packaging. 7.7 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN... -
Page 23: Auxiliary Equipment
Instructions for use PROPHYflex 3 - 2018 - 1.000.4672, - 1.006.9926, - 1.006.9928 8 Auxiliary equipment | 7.8 Storage 8 Auxiliary equipment Available from dental suppliers. ▶ Cannula 1 Mat. no. 0.573.0151 ▶ Cannula 2 Mat. no. 0.573.0181 O-ring for cannulas Mat. -
Page 24: Terms And Conditions Of Warranty
In the event of default, gross negligence or intent, this shall only apply in the absence of mandatory legal regulations to the contrary. KaVo shall not be liable for defects and their consequences that have arisen or may arise from natural wear, improper handling, cleaning or maintenance, non-compliance with operating, maintenance or connection instructions, calcination or corrosion, con‐...
