Statesmen's Terrarium

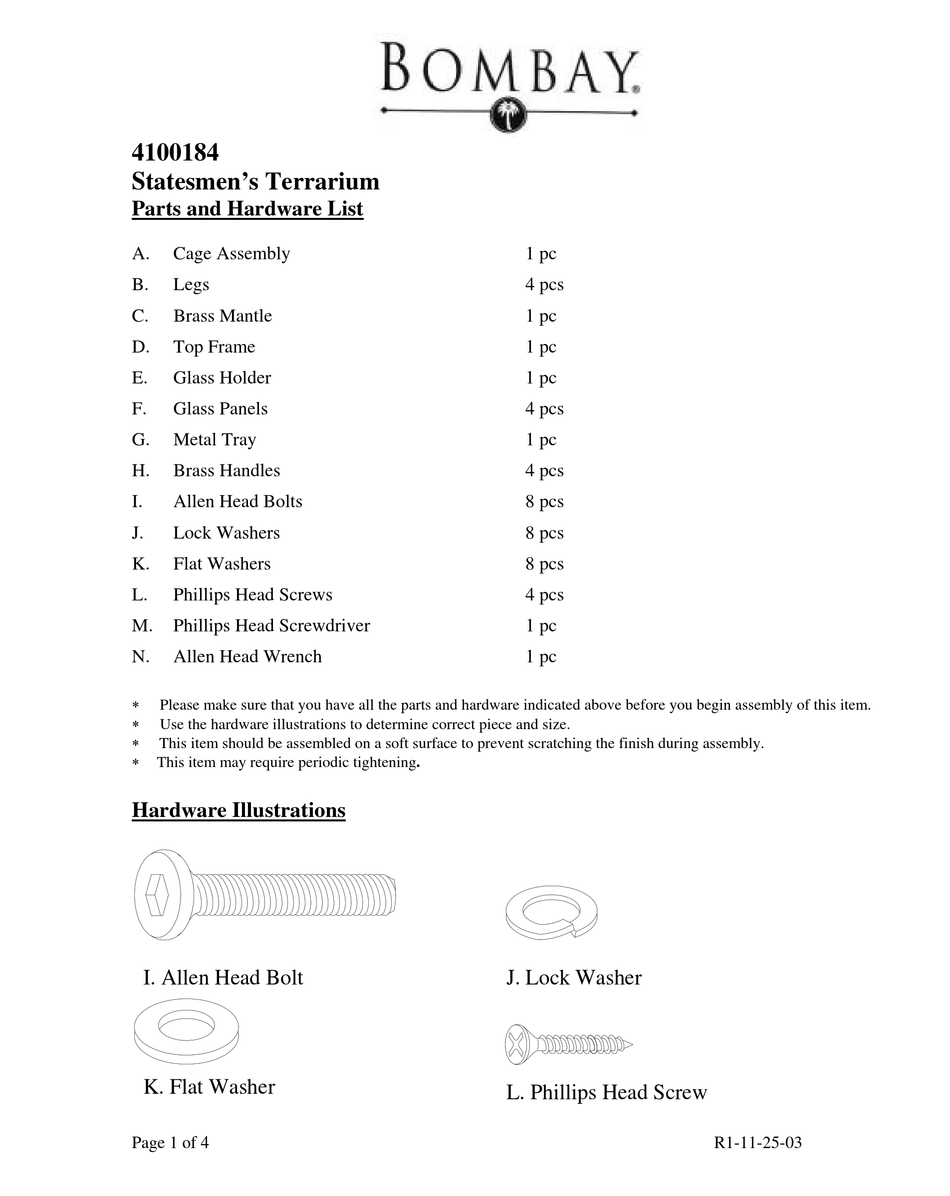

Parts and Hardware List
A.
Cage Assembly
B.
Legs
C.
Brass Mantle
D.
Top Frame
E.
Glass Holder
F.
Glass Panels
G.
Metal Tray
H.
Brass Handles
I.
Allen Head Bolts
J.
Lock Washers
K.
Flat Washers
L.
Phillips Head Screws
M.
Phillips Head Screwdriver
N.
Allen Head Wrench
∗
Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗
Use the hardware illustrations to determine correct piece and size.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Hardware Illustrations
I. Allen Head Bolt
K. Flat Washer
Page 1 of 4
1 pc
4 pcs
1 pc
1 pc
1 pc
4 pcs
1 pc
4 pcs
8 pcs
8 pcs
8 pcs
4 pcs
1 pc
1 pc
J. Lock Washer
L. Phillips Head Screw
R1-11-25-03
Advertisement
Table of Contents
Related Manuals for BOMBAY 4100184
Summary of Contents for BOMBAY 4100184
- Page 1 4100184 Statesmen’s Terrarium Parts and Hardware List Cage Assembly 1 pc Legs 4 pcs Brass Mantle 1 pc Top Frame 1 pc Glass Holder 1 pc Glass Panels 4 pcs Metal Tray 1 pc Brass Handles 4 pcs Allen Head Bolts...
- Page 2 4100184 Statesmen’s Terrarium Attach Legs Parts required Cage Assembly 1 pc Lock Washers 8 pcs Legs 4 pcs Flat Washers 8 pcs Allen Head Bolts 8 pcs Allen Head Wrench 1 pc 1. Attach Legs (B) Put the Cage Assembly (A) upside down on a soft surface. Align the pre-threaded holes in the Legs (B) with the pre-drilled holes in the corner blocks of Cage Assembly (A).
- Page 3 4100184 Statesmen’s Terrarium Attach Metal Tray & Glass Panels Parts required Cage Assembly 1 pc Glass Panels 4 pcs Glass Holder 1 pc Metal Tray 1 pc 2. Attach Metal Tray (G) Put the Cage Assembly (A) upright. Put the Metal Tray (G) into the Cage Assembly (A).
- Page 4 4100184 Statesmen’s Terrarium Attach Top Frame, Brass Mantle & Glass Holder Parts required Brass Mantle 1 pc Brass Handles 4 pcs Top Frame 1 pc Phillips Head Screws 4 pcs Glass Holder 1 pc M. Phillips Head Screwdriver 1 pc 4.
