1850534

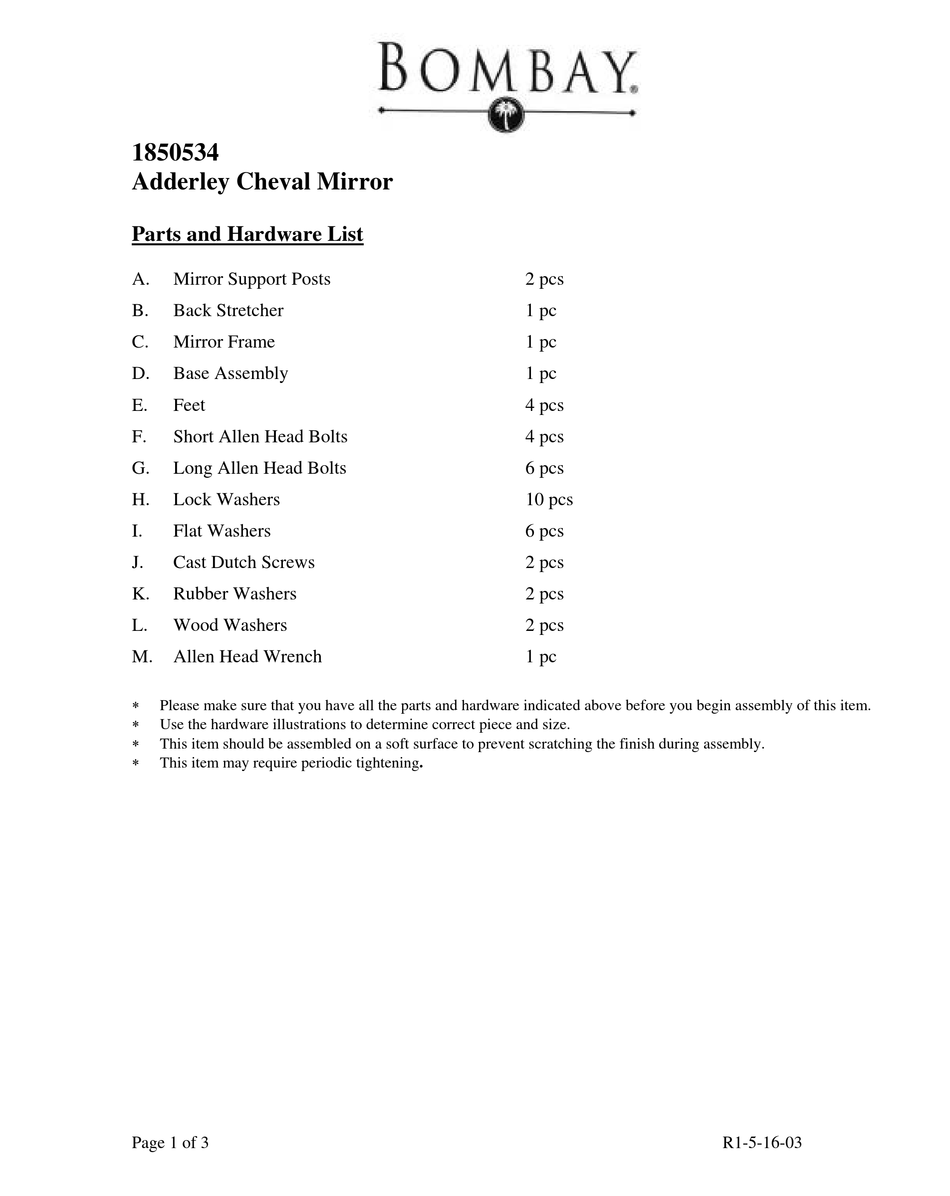

Adderley Cheval Mirror
Parts and Hardware List
A.
Mirror Support Posts
B.
Back Stretcher
C.
Mirror Frame
D.
Base Assembly
E.
Feet
F.
Short Allen Head Bolts
G.
Long Allen Head Bolts
H.
Lock Washers
I.
Flat Washers
J.
Cast Dutch Screws
K.
Rubber Washers
L.
Wood Washers
M.
Allen Head Wrench
∗
Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗
Use the hardware illustrations to determine correct piece and size.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Page 1 of 3
2 pcs
1 pc
1 pc
1 pc
4 pcs
4 pcs
6 pcs
10 pcs
6 pcs
2 pcs
2 pcs
2 pcs
1 pc
R1-5-16-03
