1884568

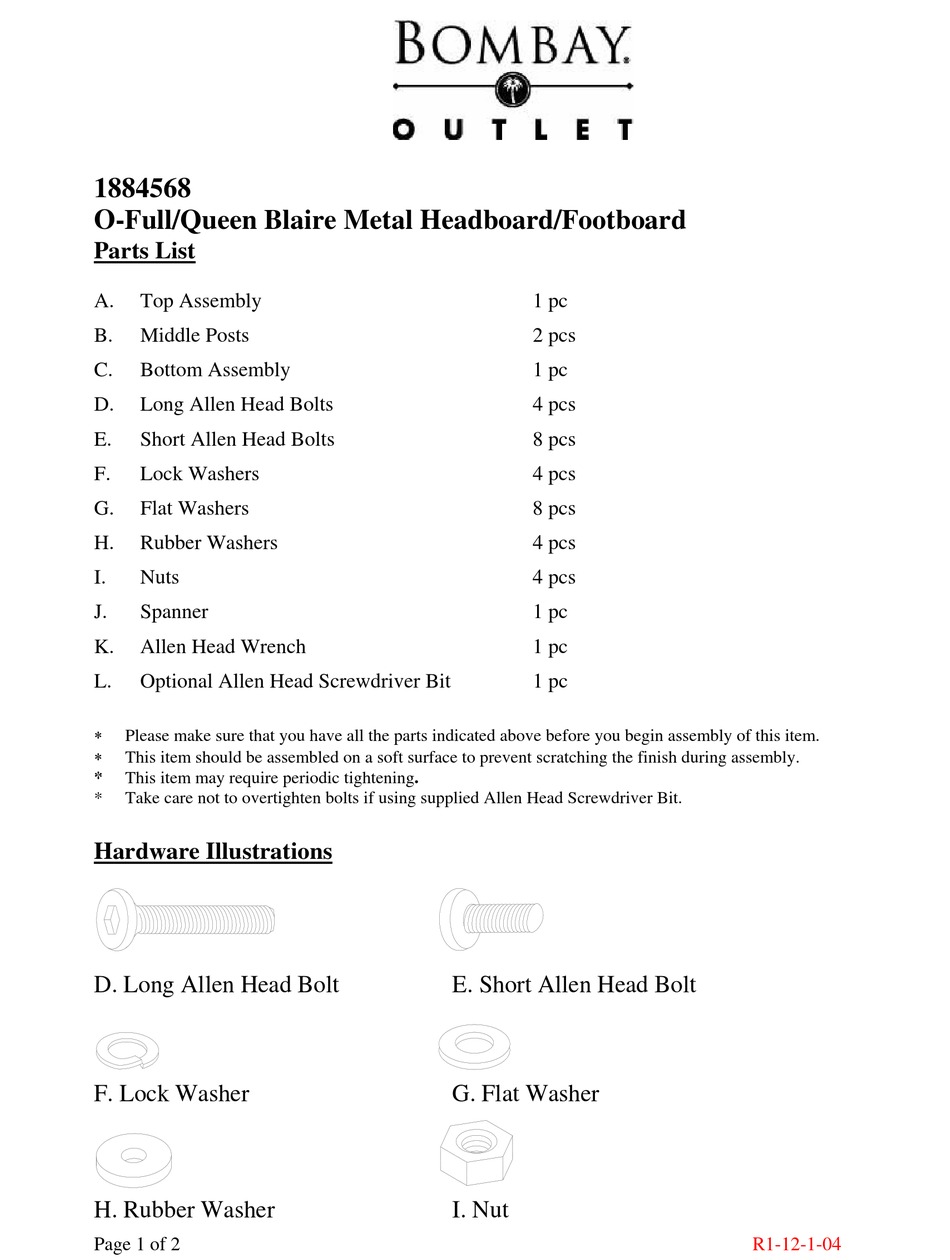

O-Full/Queen Blaire Metal Headboard/Footboard
Parts List
A.
Top Assembly
B.
Middle Posts
C.
Bottom Assembly
D.
Long Allen Head Bolts
E.
Short Allen Head Bolts
F.
Lock Washers
G.
Flat Washers
H.
Rubber Washers
I.
Nuts
J.
Spanner
K.
Allen Head Wrench
L.
Optional Allen Head Screwdriver Bit
∗
Please make sure that you have all the parts indicated above before you begin assembly of this item.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
*
This item may require periodic tightening.
*
Take care not to overtighten bolts if using supplied Allen Head Screwdriver Bit.
Hardware Illustrations
D. Long Allen Head Bolt
F. Lock Washer
H. Rubber Washer
Page 1 of 2
1 pc
2 pcs
1 pc
4 pcs
8 pcs
4 pcs
8 pcs
4 pcs
4 pcs
1 pc
1 pc
1 pc
E. Short Allen Head Bolt
G. Flat Washer
I. Nut
R1-12-1-04
