Country Glen Demilune
Parts List
A.
Top Assembly
B.
Front Legs
C.
Back Legs
D.
Allen Head Bolts
E.
Lock Washers
F.
Flat Washers
G.
Allen Head Wrench
∗ Please make sure that you have all the parts indicated above before you begin assembly of this item.
∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.

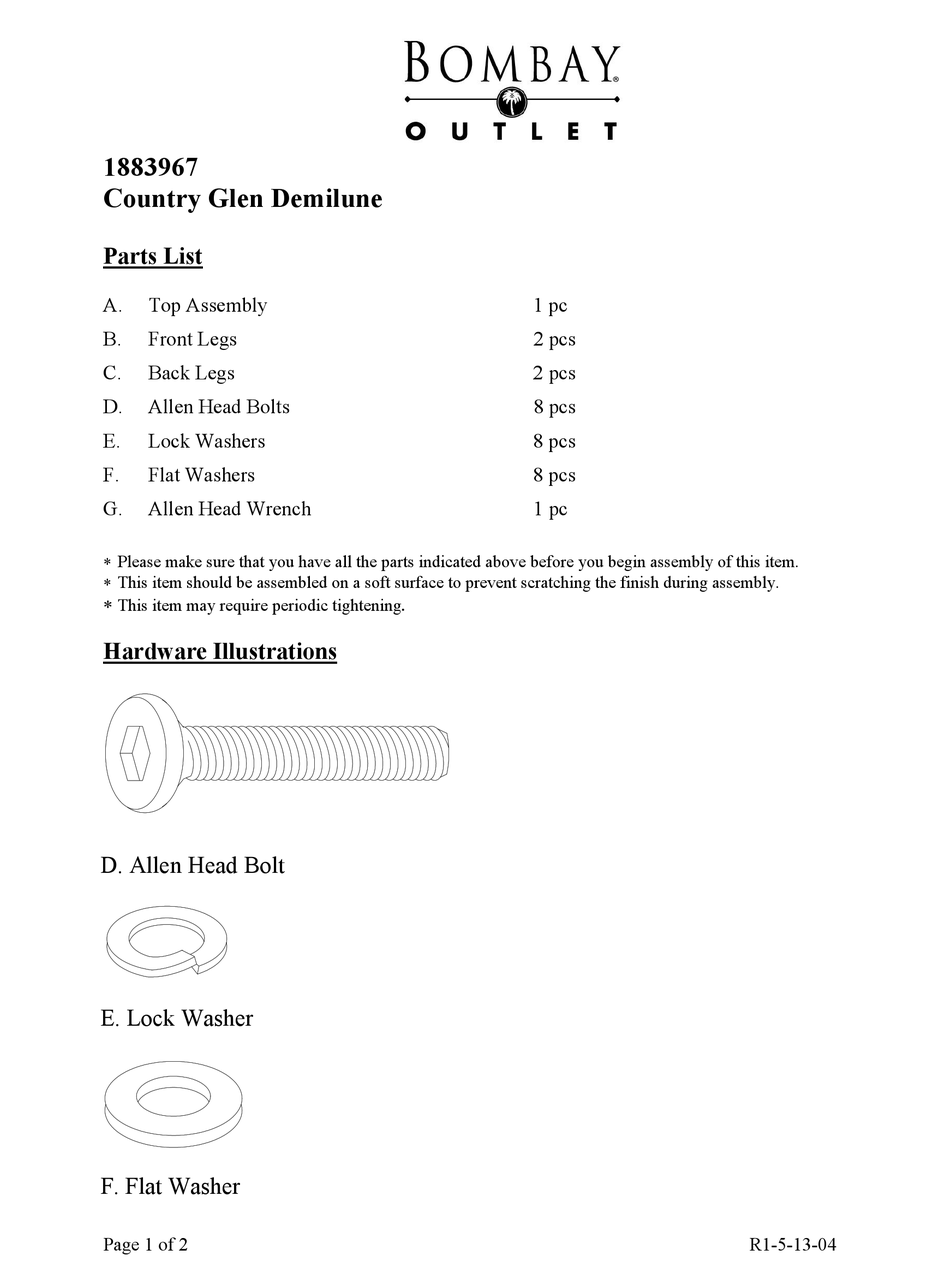

Hardware Illustrations
D. Allen Head Bolt
E. Lock Washer
F. Flat Washer
Page 1 of 2
1 pc
2 pcs
2 pcs
8 pcs
8 pcs
8 pcs
1 pc
R1-5-13-04
