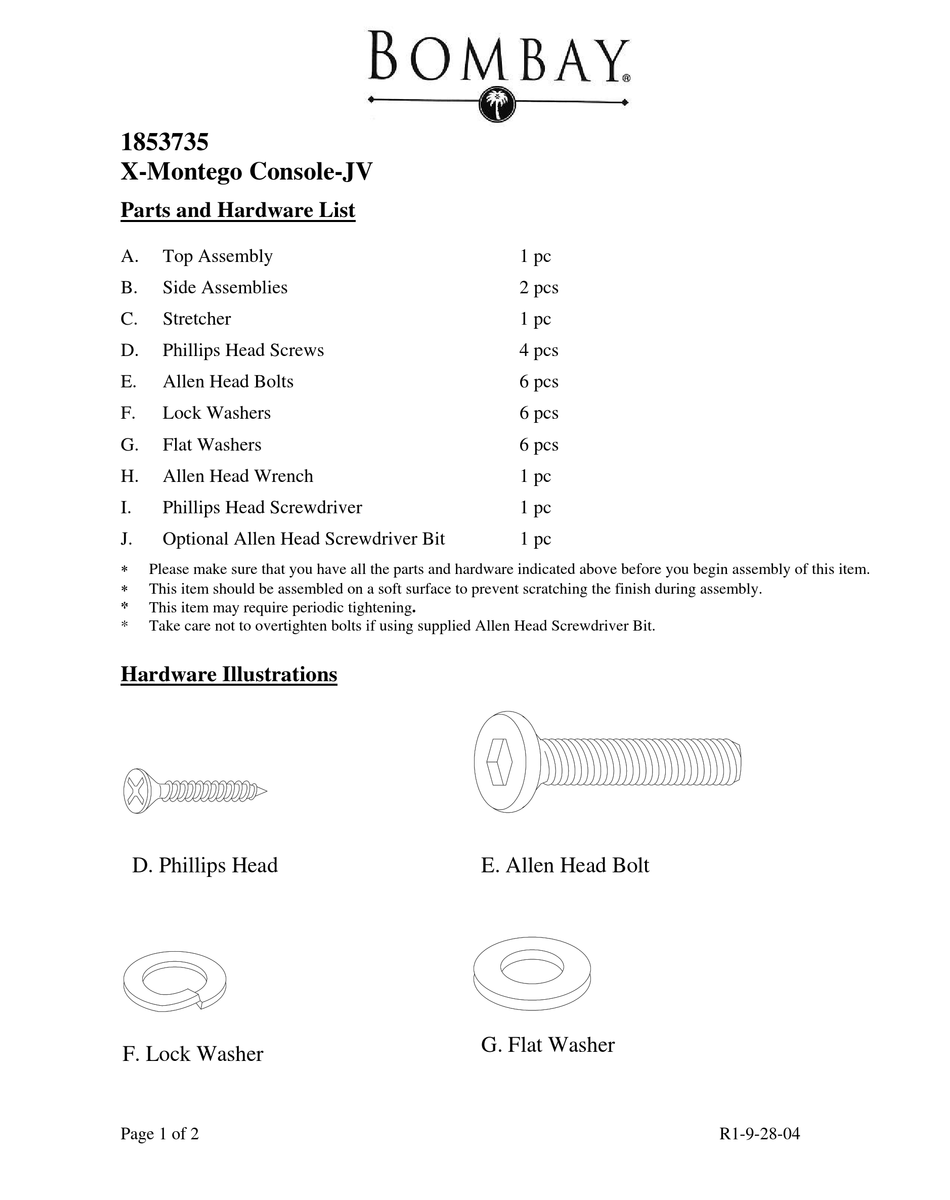

1853735
X-Montego Console-JV
Parts and Hardware List
A.
Top Assembly
B.
Side Assemblies
C.
Stretcher
D.
Phillips Head Screws
E.
Allen Head Bolts
F.
Lock Washers
G.
Flat Washers
H.
Allen Head Wrench
I.
Phillips Head Screwdriver
J.
Optional Allen Head Screwdriver Bit
∗
Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
*
This item may require periodic tightening.
*
Take care not to overtighten bolts if using supplied Allen Head Screwdriver Bit.
Hardware Illustrations
D. Phillips Head
F. Lock Washer
Page 1 of 2
1 pc
2 pcs
1 pc
4 pcs
6 pcs
6 pcs
6 pcs
1 pc
1 pc
1 pc
E. Allen Head Bolt
G. Flat Washer
R1-9-28-04
Advertisement
Table of Contents
Related Manuals for BOMBAY X-Montego Console-JV 1853735
Summary of Contents for BOMBAY X-Montego Console-JV 1853735
- Page 1 1853735 X-Montego Console-JV Parts and Hardware List Top Assembly 1 pc Side Assemblies 2 pcs Stretcher 1 pc Phillips Head Screws 4 pcs Allen Head Bolts 6 pcs Lock Washers 6 pcs Flat Washers 6 pcs Allen Head Wrench 1 pc Phillips Head Screwdriver 1 pc Optional Allen Head Screwdriver Bit...
- Page 2 1853735 X-Montego Console-JV Assembly Instructions 1. Attach Side Assemblies (B) Place Top Assembly (A) upside down on a soft surface. Align the pre-drilled holes in the top rails of Side Assemblies (B) with the pre-threaded holes in the apron of Top Assembly (A) ends. Secure with Allen Head Bolts (E), Lock Washers (F) and Flat Washers (G) using Allen Head Tool (H or J).
