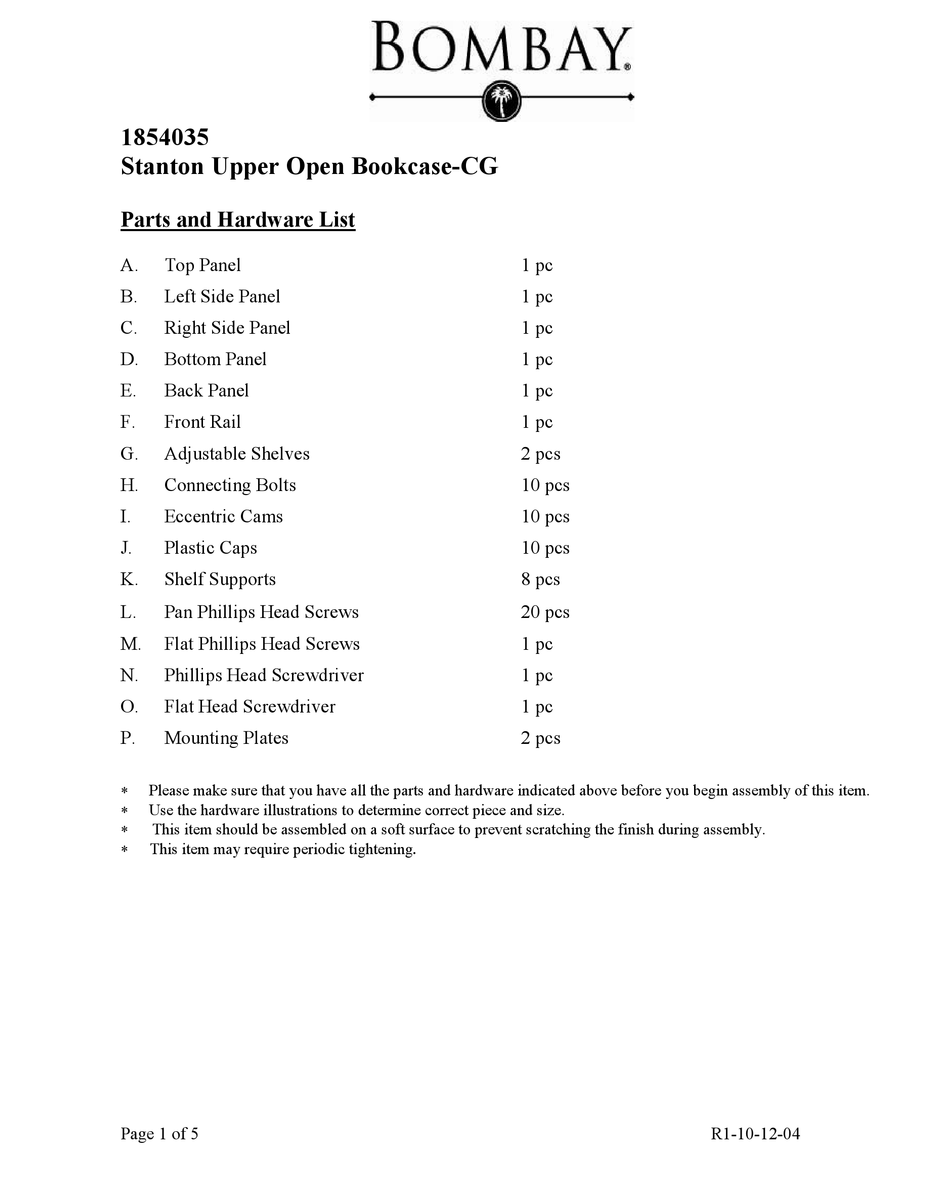

1854035
Stanton Upper Open Bookcase-CG
Parts and Hardware List
A.
Top Panel
B.
Left Side Panel
C.
Right Side Panel
D.
Bottom Panel
E.
Back Panel
F.
Front Rail
G.
Adjustable Shelves
H.
Connecting Bolts
I.
Eccentric Cams
J.
Plastic Caps
K.
Shelf Supports
L.
Pan Phillips Head Screws
M.
Flat Phillips Head Screws
N.
Phillips Head Screwdriver
O.
Flat Head Screwdriver
P.
Mounting Plates
∗
Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗
Use the hardware illustrations to determine correct piece and size.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Page 1 of 5
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pcs
10 pcs
10 pcs
10 pcs
8 pcs
20 pcs
1 pc
1 pc
1 pc
2 pcs
R1-10-12-04
Advertisement
Related Manuals for BOMBAY Stanton 1854035
Summary of Contents for BOMBAY Stanton 1854035
- Page 1 1854035 Stanton Upper Open Bookcase-CG Parts and Hardware List Top Panel 1 pc Left Side Panel 1 pc Right Side Panel 1 pc Bottom Panel 1 pc Back Panel 1 pc Front Rail 1 pc Adjustable Shelves 2 pcs Connecting Bolts 10 pcs Eccentric Cams 10 pcs...
-
Page 2: Hardware Illustrations
1854035 Stanton Upper Open Bookcase-CG Hardware Illustrations H. Connecting Bolt I. Eccentric Cam J. Plastic Cap K. Shelf Support L. Pan Phillips Head Screw M. Flat Phillips Head Screw Page 2 of 5 R1-10-12-04... - Page 3 1854035 Stanton Upper Open Bookcase-CG Attach Left & Right Side Panels, Top Panel Parts required Top Assembly 1 pc Eccentric Cams 10 pcs Left Side Panel 1 pc Plastic Caps 10 pcs Right Side Panel 1 pc M. Flat Phillips Head Screws 1 pc Bottom Panel 1 pc...
- Page 4 1854035 Stanton Upper Open Bookcase-CG Attach Back Panel & Adjustable Shelves Parts required A. Top Assembly 1 pc G. Adjustable Shelves 2 pcs B. Left Side Panel 1 pc K. Shelf Supports 8 pcs C. Right Side Panel 1 pc Pan Phillips Head Screws 16 pcs D.
- Page 5 1854035 Stanton Upper Open Bookcase-CG Attach Upper Bookcase to Lower Bookcase Parts required L. Pan Phillips Head Screws 4 pcs Mounting Plates 2 pcs N. Phillips Head Screwdriver 1 pc 6. Attach Mounting Plates (P) Set the Stanton Uppper Open Bookcase assembly onto the Stanton Lower Wood Door Bookcase assembly.
