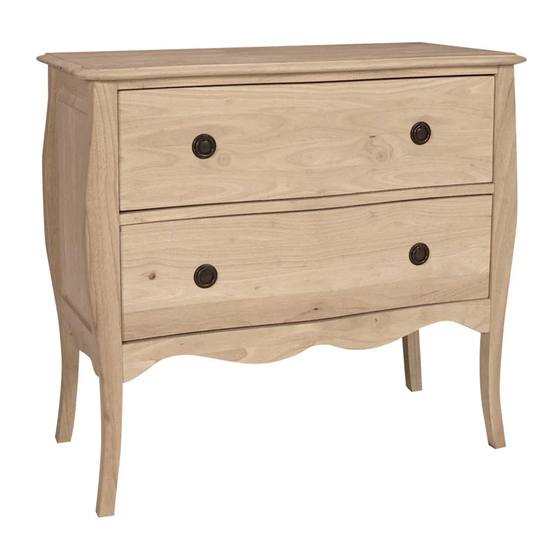

- Page 1 ASSEMBLY INSTRUCTIONS Description BOMBAY CHEST 2 DRAWER Item No. BD - 1002 ITEM NO : BD – 1002 Printed in Vietnam ISSUED NOV 18, 2014 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. -
Page 3: Part List
PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts. Description Sketch Description Sketch Side panel (L - R) Back panel Bottom panel Rail Front drawer Drawer back Drawer side (L –... -
Page 4: Hardware List
HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Bolt Lock Washer (M6x35mm) (6.5 x11mm) Flat Washer Screw (6.5 x16mm) (M4 x 35mm) Screw... - Page 5 STEP 2 Insert Rail (E) into the side panel (B) as shown below. Attach side panel (B) to the top (A) and back panel (C) with bolts (1), washers (2) and (3) as shown below. Tighten with Allen key (7). STEP 3 Attach back panel (C) and rail (E) to top (A) and side panel (B) with screws (4) as shown below.
- Page 6 STEP 4 Attach bottom panel (D) to side panel (B) with bolts (1), washers (2) and (3) as shown below. Tighten with Allen key (7). STEP 5 Attach drawer sides (H) to the drawer front (F) with screws (10) as shown below. Tighten with a screwdriver.
- Page 7 STEP 6 Slide the drawer bottom panel (J) into the grooves as shown below. STEP 7 Attach the drawer back panel (G) to the unit (from step 6) with screws (10) as shown below. Tighten with a screwdriver. ITEM NO : BD – 1002 Printed in Vietnam ISSUED NOV 18, 2014 - 7 -...
- Page 8 STEP 8 Attach the drawer support bar ) underneath the drawer with screws (10) as shown below. Tighten with a screwdriver. STEP 9 Attach the knobs (8) to the drawer front with pan head screws (9) as shown below. Tighten with a screwdriver.
- Page 9 STEP 10 Insert the drawer into the unit Attach steel bands (6) to the unit with screws (5). Then attach the steel band to a wall with screw (4) as shown below (to secure the product and prevent tipping). Tighten with a screwdriver. ITEM NO : BD –...
