4109211
X-Andorra Headboard-QN

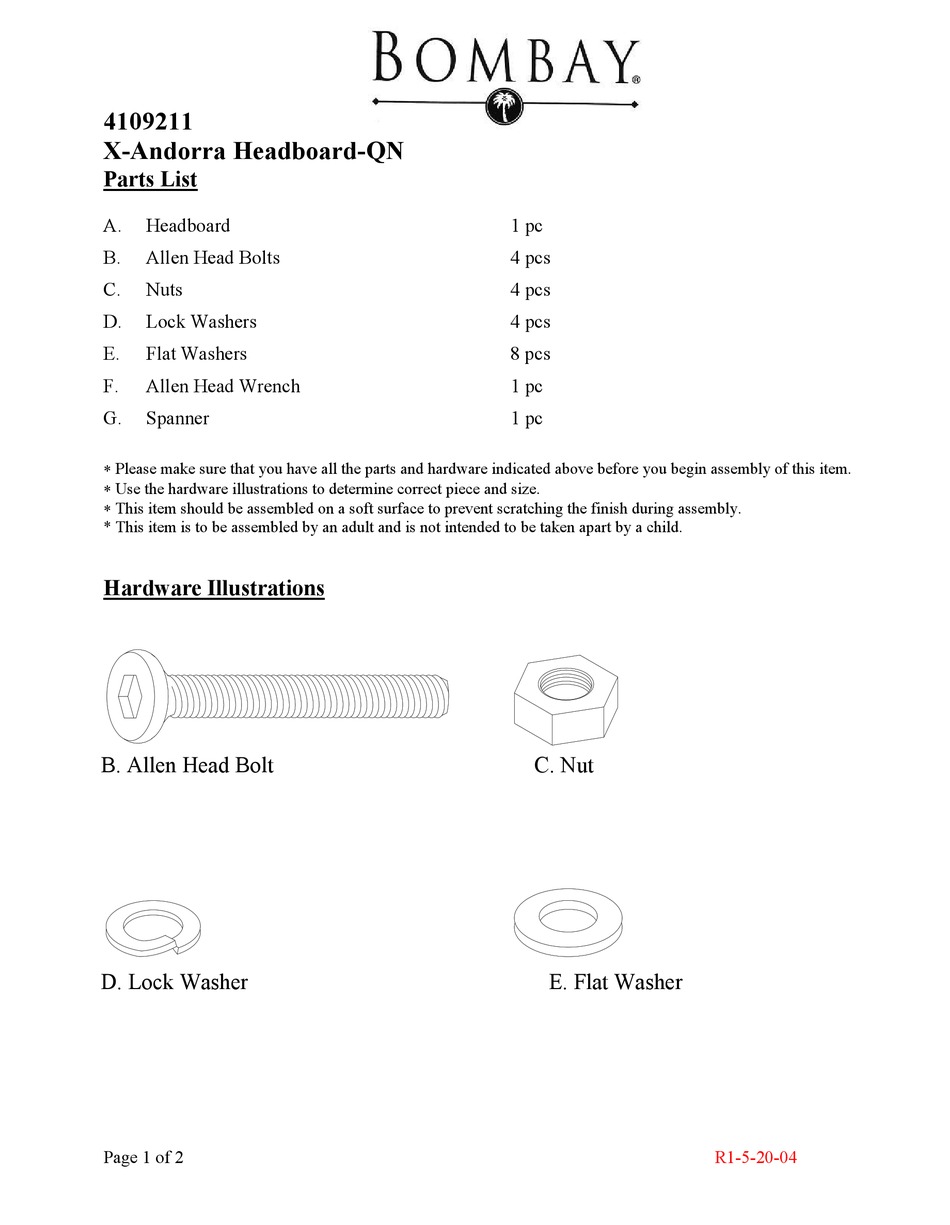

Parts List
A.
Headboard
B.
Allen Head Bolts
C.
Nuts
D.
Lock Washers
E.
Flat Washers
F.
Allen Head Wrench
G.
Spanner
∗ Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗ Use the hardware illustrations to determine correct piece and size.
∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.
* This item is to be assembled by an adult and is not intended to be taken apart by a child.
Hardware Illustrations
B. Allen Head Bolt
D. Lock Washer
Page 1 of 2
1 pc
4 pcs
4 pcs
4 pcs
8 pcs
1 pc
1 pc
C. Nut
E. Flat Washer
R1-5-20-04
