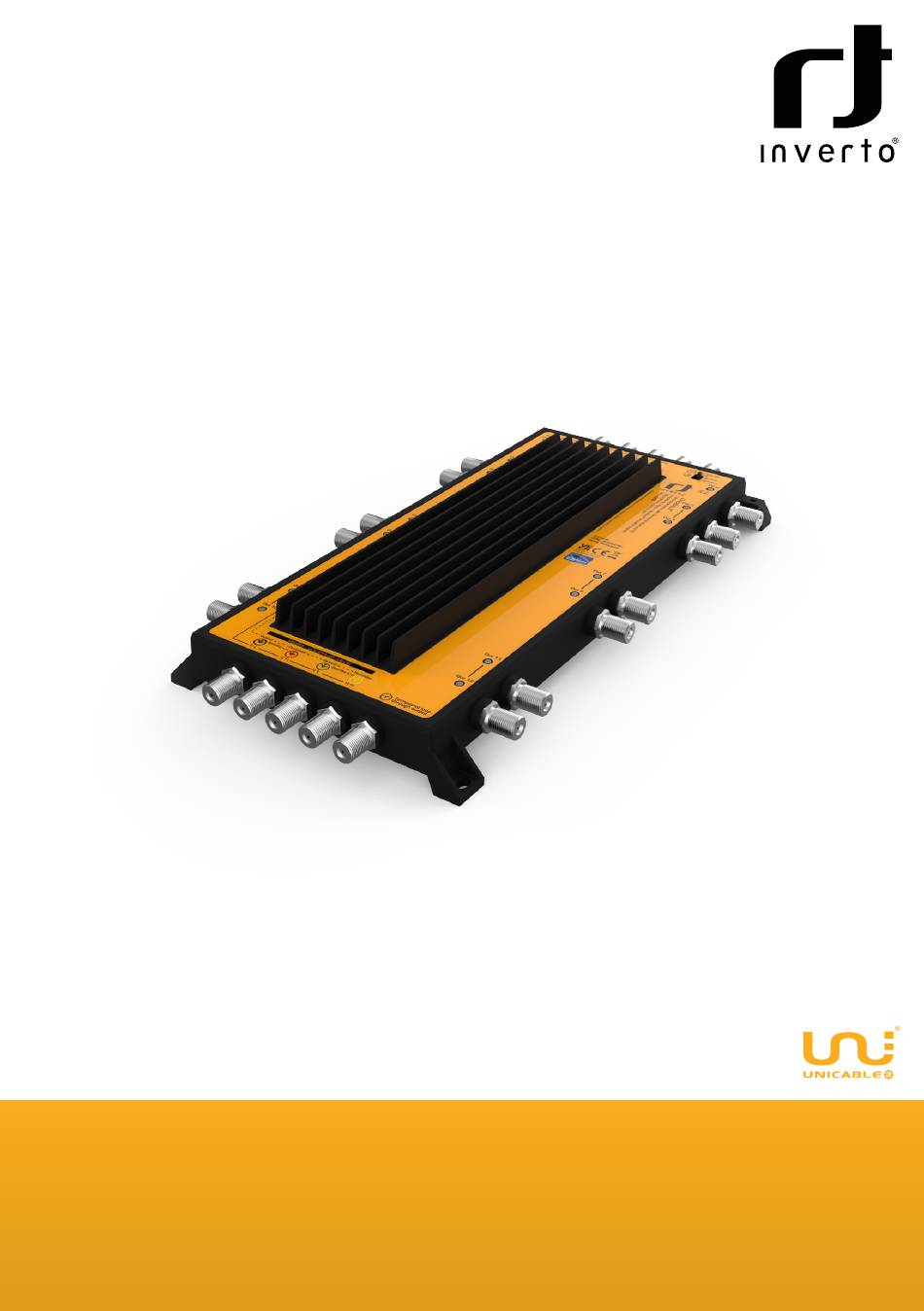

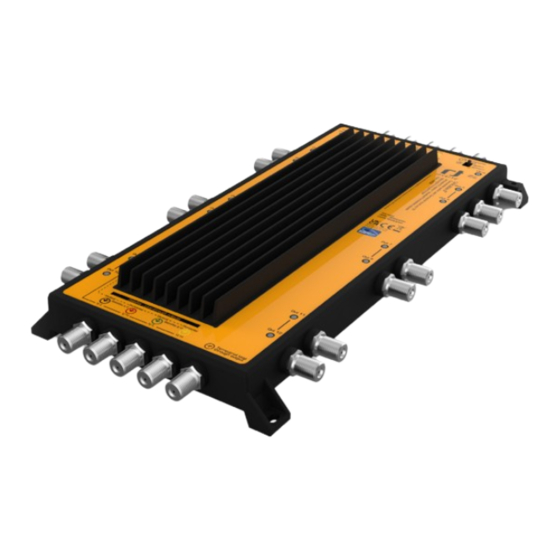

- Page 1 Multiswitch Unicable II ® ® Unicable II Cascadable switch with Terrestrial input & 12 Unicable II/Legacy + equalized Terrestrial outputs IDLU-UST111-CUO12-32P Item:6208 Installation manual...
-
Page 2: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. -
Page 3: Product Configuration
The status LED identifies the mode of the port: - solid green = Legacy mode. - blinking green = Unicable (SatCR, EN50494) or Unicable II (dCSS, EN50607). - off = no voltage detected on the port (only terrestrial signal available on the port) All the twelve STB output ports combine the Terrestrial input signal. - Page 4 The following diagram describes a typical single household installation of the product: DTT/DAB/FM Antenna Quattro Wideband AC/DC Terrestrial Trunk input Quattro Power type Wideband Vertical Horizontal Vertical Horizontal Satellite Inputs (LNB Trunk) Adapter Out 1 Out 3 Out 2 Out 4 Out 5 Out 7 Unicable box...
- Page 5 Satellite Inputs (LNB Trunk) The number and frequency of the 16 default User Bands available over each STB output port are the following: Out 1 Out 3 Default Unicable II dynamic user bands per output port EN50607+EN50494 (dCSS+SatCR): EN50607 (dCSS): UB1=1210MHz UB5=985MHz UB9=1340MHz...
-
Page 6: Technical Parameters
Output power: 19VDC, 940mA Item no.: 5639 Short circuit protection: Yes Power Inserter 5-2400MHz, 1000mA max Model no.: IDLU-PINS03-OOOOO-OBT Item no.: 5958 Unicable II 2-way splitter, 5-2400MHz Model: IDLU-USP1O5-OUO2O-OBT Item: 5660 Unicable II 4-way splitter, 5-2400MHz Model: IDLU-USP1O5-OUO4O-OBT Item: 5709... -
Page 7: Troubleshooting
* For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and/ or features without notice. - Page 8 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as de- tailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice.
