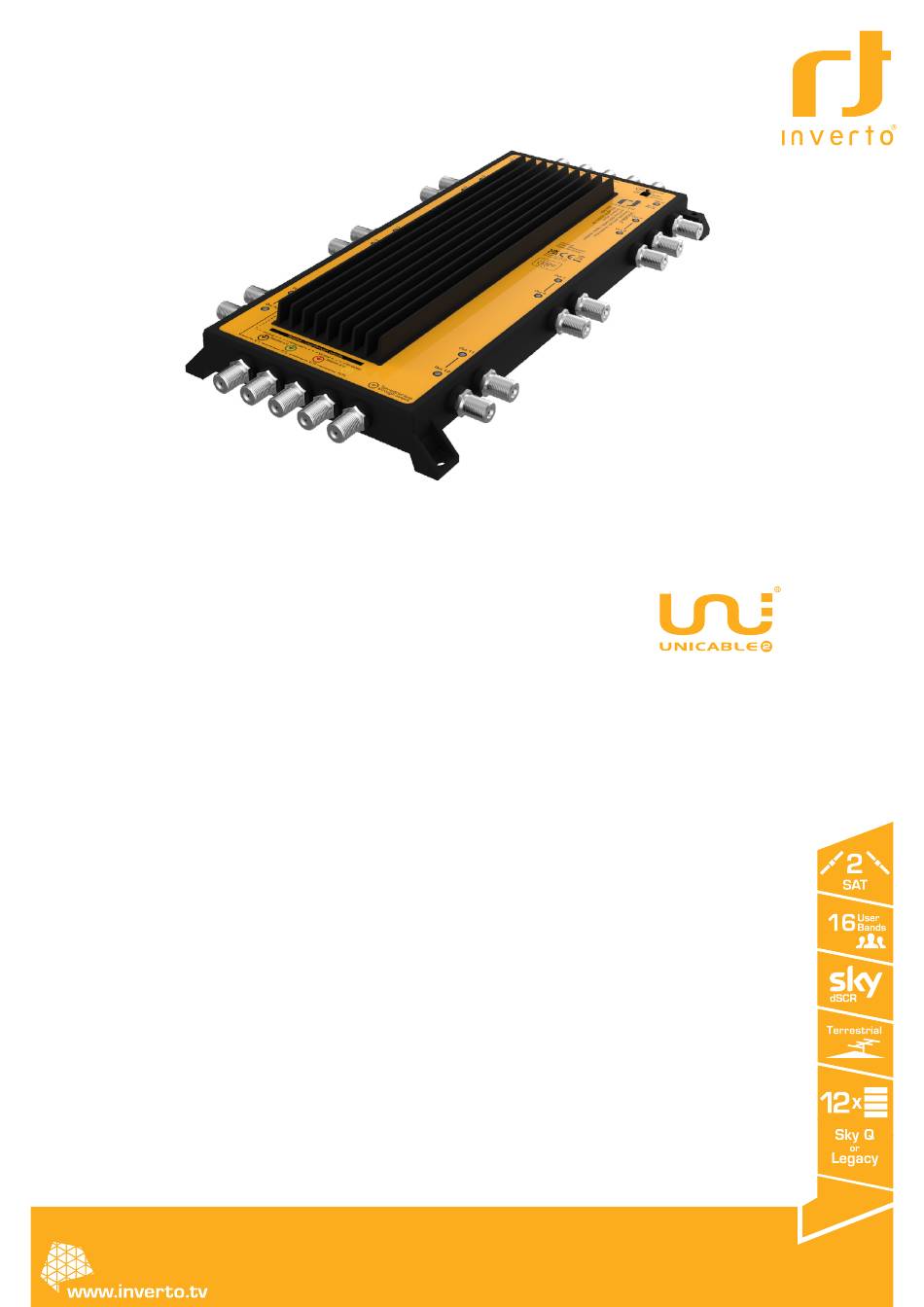

Inverto Unicable II 6207 Installation

Unicable II
Cascadable switch with Terrestrial input and 12 Sky
dSCR/SatCR/Legacy+equalized Terrestrial outputs
ISKY-UST111-CUO12-16P
Item: 6207

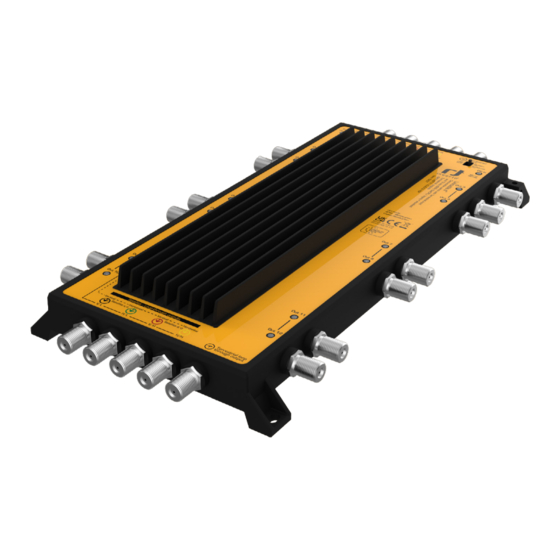

This Multiswitch unit connects to a Quattro or Wideband LNBs and offers a terrestrial input port to connect a terrestrial
antenna and enable the distribution of satellite TV as well as DTT/DAB broadcasts at MDU/IRS installations.
A manual switch selects whether the satellite inputs connect to a Quattro LNB or up to two Wideband LNBs for
receiving up to two full satellite broadcasts. The loop-through trunk ports can be connected to cascade additional
Multiswitch units.
The DC-input port of the Multiswitch unit powers the trunk lines which power the connected LNB and the built-in
Terrestrial amplifier of the unit and of any other cascaded units. The Trunk power LED will turn green when the Trunk
lines are powered.
The output ports are powered by the connected STBs enabling super low power consumption from the trunk lines
and powering as many cascaded switches as possible using a single power supply unit. If a connected STB is not able
to power its respective port, a power inserter can be utilized.
Each of the twelve STB output ports is compatible with either Sky Q, Sky+ HD or Sky+ STB models, delivers 16 User
Bands and features a Port status LED indicating its operational mode:
- Solid green = Legacy mode (e.g. Sky+ STB).
- Blinking green = dSCR or SatCR mode (e.g. Sky Q or Sky+ HD STBs).
- Off = no voltage detected on the port (only terrestrial signal available on the port)
All the twelve STB output ports combine a unity-gain equalized Terrestrial input signal.
Optional accessories (sold separately):
5958 Unicable II® Power Inserter, 5-2400MHz
5638 19W Power Supply adapter for Unicable II® / Unifiber™ (UK plug)
5581 65W Power Supply adapter for Unicable II® multiswitches (UK plug)
For Indoor and outdoor (IP54) installations
®
IDLU-PINS03-OOOOO-OBT
IDLU-ADPT01-19WOO-UPM
IDLU-ADPT04-19342-UPM
