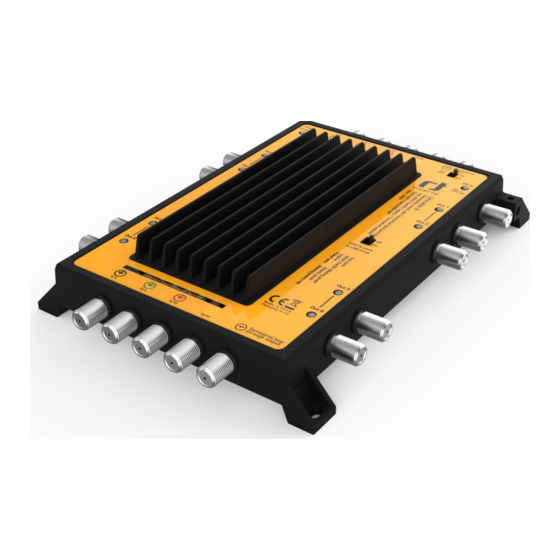

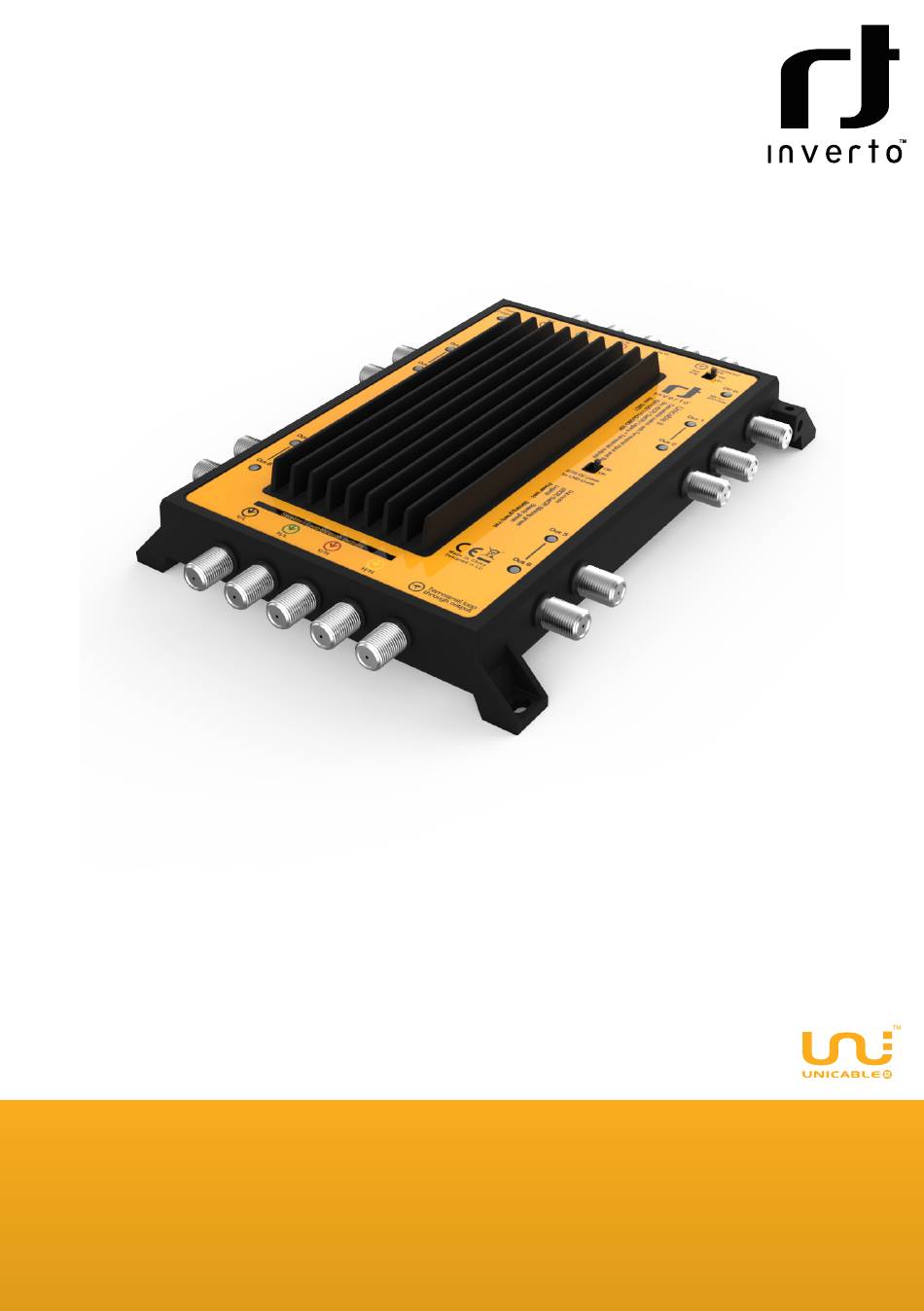

- Page 1 Unicable II Multiswitch ™ Unicable II Cascadable switch with Terrestrial input and 8x Sky dSCR/SatCR/Legacy + Terrestrial outputs ISKY-UST110-CUO8O-16P Item: 5457 Installation manual...
-
Page 2: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. - Page 3 Notes: For optimal performances, satellite loop-through outputs that are not used shall be terminated with 75ohm DC-block terminating resistors. The Terrestrial loop-through output port shall be terminated with a 75ohm terminating resistor. It is also recommended to terminate unused STB output ports with 75ohm terminating resistors.
- Page 4 The following diagram describes a typical single household installation based on the default configuration of the product Quattro DTT/DAB/FM Antenna AC/DC Adapter Terrestrial Power input Diagnosis Terr. amp. Satellite Inputs (LNB Trunk) DC in 3.5A max. Out 3 Out 1 Out 4 Out 2 STB DC pass...
- Page 5 The following diagram illustrates a typical MDU/building installation: Quattro DTT/DAB/FM Antenna Q Box / Q Box / Q Box / Q Box / Legacy Legacy Legacy Legacy AC/DC Q Box / Q Box / Q Box / Q Box / Legacy Legacy Legacy...
-
Page 6: Technical Parameters
Technical parameters Frequency range: satellite 950 MHz ~ 2150 MHz Frequency range: terrestrial VHF: 174-230 MHz, UHF: 470-790 MHz Inputs 4 x Satellite IF inputs from Quattro LNB 1 x DTT/DAB/FM input from Terrestrial antenna Outputs 4 x loopthrough satellite IF outputs* 1 x loopthrough terrestrial output 8 x Sky dSCR (16 UBs) / SatCR / Legacy auto-detect ports with combined Terrestrial... - Page 7 Input/Output VSWR 2.5 : 1 LNB power supply 500 mA max. @ 18 VDC Power consumption 1200 mA @ 19 VDC (no load) Working temperature -20 °C ~ +50 °C IP protection IP54 Product dimensions (H x W x D) 21 cm x 14.6 cm x 3.7 cm Weight 500 g...
-
Page 8: Troubleshooting
* For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, prod-... - Page 9 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 10 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or fea- tures without notice.
