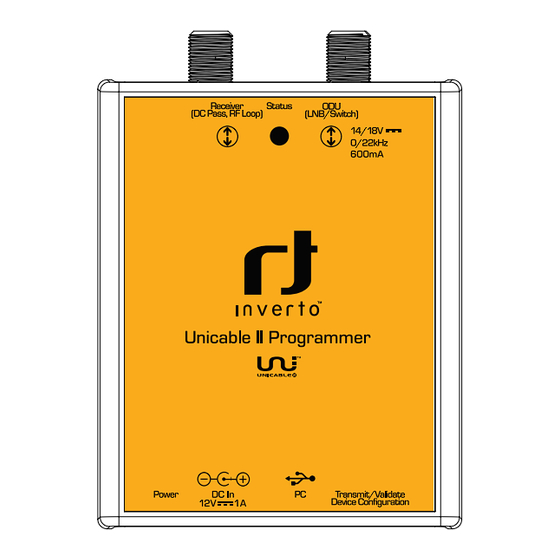

- Page 1 Unicable II Programmer ™ IDLU-PROG01-OOOOO-OPP Item: 5273 Installation & User Guide...
-
Page 3: Warranty
1. Warranty This Unicable II programmer is designed for use with satellite television installations. The warranty does not apply for products used for other purposes other than those specified herein. The user/ installer shall be responsible for any damage incurred as a result of not using the product accord- ing to the instructions in this manual. -
Page 4: Installation
3. Installation Before connecting the Unicable II Programmer device to the PC, please follow the below steps for installation of the PC software and driver. ■ Download the Unicable_II_Programmer.msi software from: http://www.inverto.tv/support to your PC ■ Start the installation by double click on Unicable_II_Programmer.msi ■... - Page 5 Unicable II Programmer PC software. 5. Create/Edit a configuration for a Unicable II Switch/LNB There are two ways to change the configuration of an Unicable II device that is connected to the Unicable II Programmer: Create a new Configuration Select “Task”...
- Page 6 Wideband LNB input (2 Satellites) The Unicable II switch will be setup to receive wideband signals on its inputs from 2 different satellite positions. It is also possible connect (chain) the outputs of two switches together with a RF combiner and setup one switch to provide the signal from satellite A and B and the seconds one from satellite C and D.
- Page 7 Select whether the user band should be accessible as EN50494, EN50607 or both- EN50494+EN50607 Unicable I / Unicable II User band number for Unicable I (EN50494) and Unicable II (EN50607) Frequency Enter the IF frequency for the user band (the IF frequency may not overlap)
- Page 8 7. Static Depending on the device it is possible to configure up to 32 static user bands ■ Click on the arrow button near to the output of the device to select how many static user bands you want to use on this output. ■...
-
Page 9: Troubleshooting
8. Upload the configuration to the Unicable II Switch/LNB After entering your configuration you can upload it to the Unicable II device by pressing the button “Send to ODU”. You can also store the configuration inside the programmer. This allows updating Unicable II devices without having a PC connected to the programmer by pressing the update button on the programmer. - Page 10 Before you proceed, please check: 1. Is the USB cable connected to the PC and the programmer 2. Is the programmer LED - close the USB plug - on 3. Open the device manager and check that the programmer is listed as “Microchip Custom USB device”...
- Page 11 Driver can’t be installed (Win8.1 64bit or newer) The drivers are currently not signed for Windows 8.1 or newer. During the driver installation you will be notified: “Windows found driver software for your device but encountered an error while attempting to install it. The hash for the file is not present in the specified catalog file.
-
Page 12: Technical Parameters
10. Technical parameters Interfaces: 1x Satellite IF, F-type 1x Satellite IF loop-through out, F-type 1x USB (Type-B) Loop-through loss: 1dB max. Control protocols: DiSEqC™ commands extension according to CENELEC EN50494 and/or EN50607, DiSEqC2.0. Display and keys: - Activity LED Yellow blinking: Communication activity between ODU and Pro grammer Green: Configuration files in ODU and Programmer are identical - Power LED... - Page 13 * DiSEqC™ is a registered trademark of Eutelsat * For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products.
- Page 14 Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 16 FTA Communication Technologies S.á r.l. 18 Duchscherstrooss, L-6868 Wecker, Luxembourg Tel: +352 264 367 1, Fax: +352 264 313 68 info@inverto.tv www.inverto.tv...
