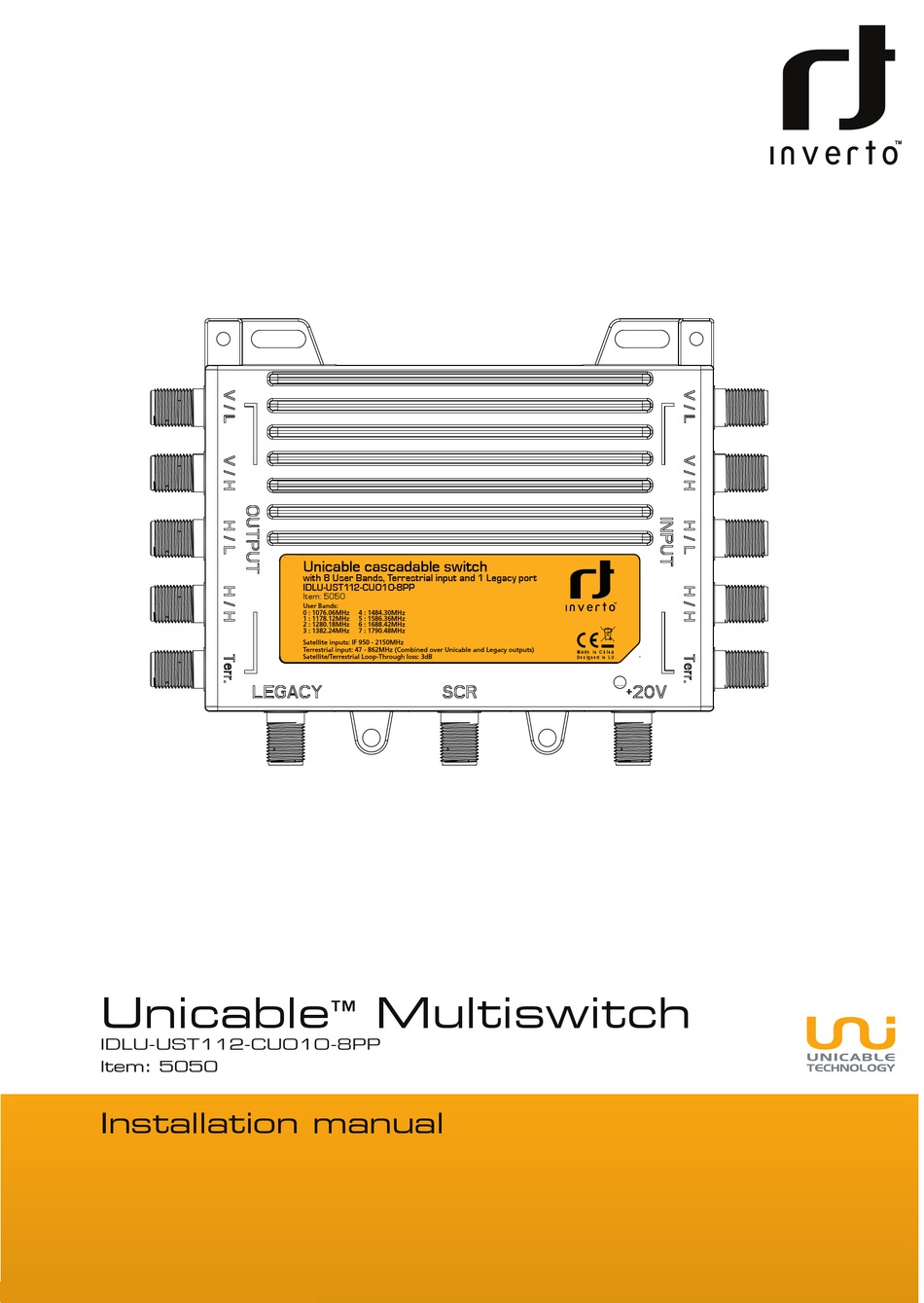

Inverto Unicable IDLU-UST112-CUO1O-8PP Installation Manual

Unicable

IDLU-UST112-CUO1O-8PP

Item: 5050

Installation manual

Unicable cascadable switch

with 8 User Bands, Terrestrial input and 1 Legacy port

IDLU-UST112-CUO1O-8PP

Item: 5050

User Bands:

0 : 1076.06MHz

4 : 1484.30MHz

1 : 1178.12MHz

5 : 1586.36MHz

2 : 1280.18MHz

6 : 1688.42MHz

3 : 1382.24MHz

7 : 1790.48MHz

Satellite inputs: IF 950 - 2150MHz

Terrestrial input: 47 - 862MHz (Combined over Unicable and Legacy outputs)

Satellite/Terrestrial Loop-Through loss: 3dB

Multiswitch

™

M a d e i n C h i n a

D e s i g n e d i n L U

Table of Contents

Need help?

Do you have a question about the Unicable IDLU-UST112-CUO1O-8PP and is the answer not in the manual?

Page 1 Unicable cascadable switch with 8 User Bands, Terrestrial input and 1 Legacy port IDLU-UST112-CUO1O-8PP Item: 5050 User Bands: 0 : 1076.06MHz 4 : 1484.30MHz 1 : 1178.12MHz 5 : 1586.36MHz 2 : 1280.18MHz 6 : 1688.42MHz 3 : 1382.24MHz 7 : 1790.48MHz Satellite inputs: IF 950 - 2150MHz Terrestrial input: 47 - 862MHz (Combined over Unicable and Legacy outputs) M a d e i n C h i n a...
Page 2 Thank you for purchasing Inverto’s advanced Unicable multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instruc- tions and recommendations. We suggest that you keep this manual for future use.
Page 3 Connect the cables from the Quattro LNB to the input connectors marked with LNB V/L, V/H, H/L and H/H inputs (pay attention to identification of the Quattro LNB connectors). The multiswitch is equipped with Terrestrial input. Connect the Terrestrial antenna to this input: There are two output connectors: Legacy and Unicable (marked ‘SCR’).
Page 4 * For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, prod-...
