Summary of Contents for Inverto IP-LNB

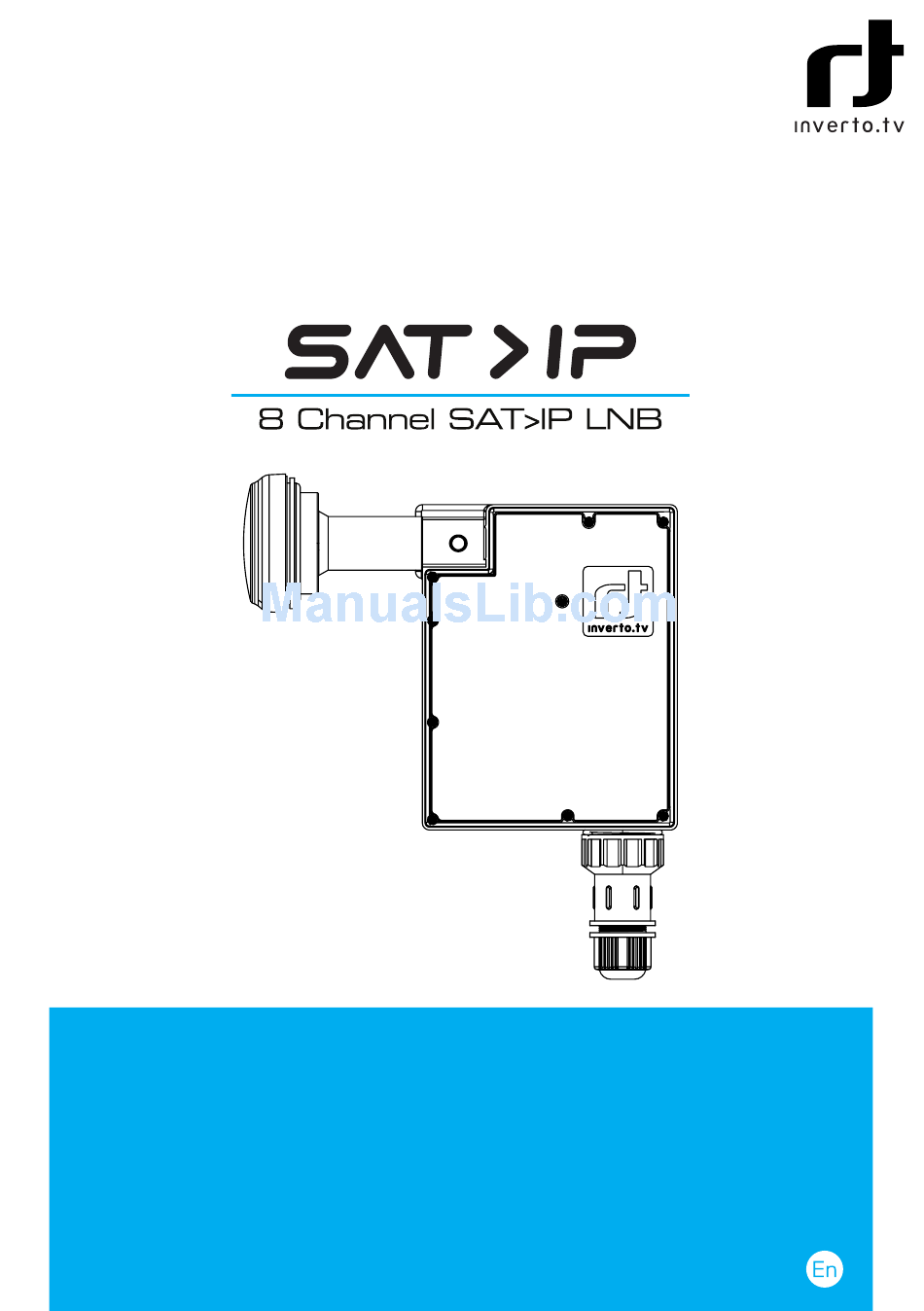

- Page 1 Installation Guide IDLI-8CHE20-OOPOE-OSP...
- Page 2 The IP-LNB Set Up The IP-LNB has the ability to receive and convert up to 8 individual channels simul- taneously into SAT>IP streams. The LNB is connected from the dish to the home over Cat5e or above cabling and into a PoE unit. The PoE normally sits in the home and its function is to delivers both power to the LNB and is the data link for the LNB.
- Page 3 Connection to the PoE ■ The connection to the left is labelled P+D/OUT and must only be connected to the IP-LNB, this connection provides the LNB with its power and its data link. ■ The connection to the right is labelled Data/IN and is the connection for the SAT>...
-
Page 4: Key Features
For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed datasheets of the prod- ucts. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice. As product specifications...
