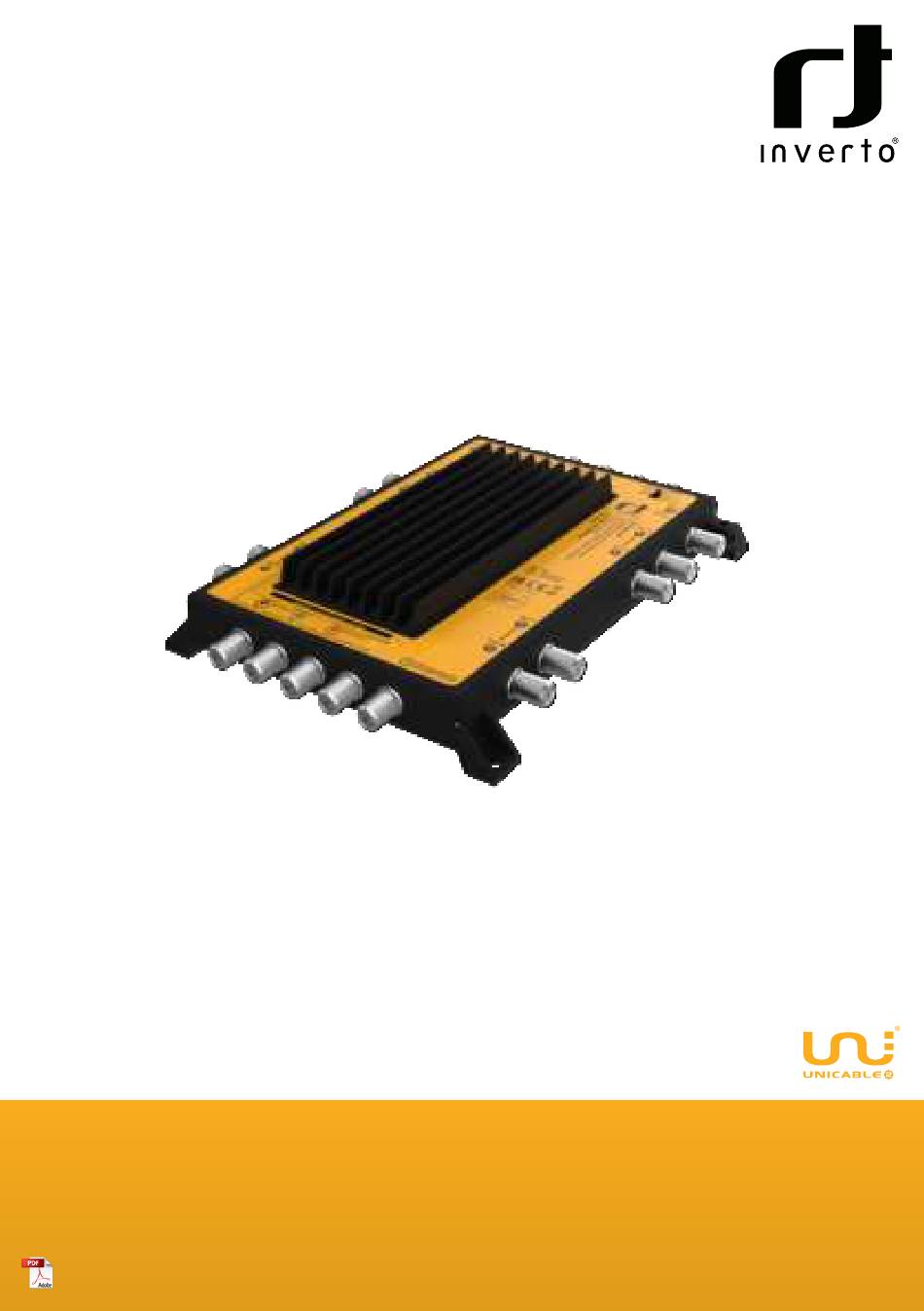

- Page 1 Multiswitch Unicable II ® Cascadable switch with Terrestrial input and 8 Sky dSCR/SatCR/ Legacy + equalized Terrestrial outputs ISKY-UST111-CUO8O-16P Item:6099 Installation manual...
-
Page 2: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. -
Page 3: Product Configuration
Satellite input ports from 1x Quattro Terrestrial input port LNB or 2x Wideband LNBs SW1 manual switch - Quattro / Wideband LNB type DC In port Trunk power LED DC In LED STB ports STB ports Ports status LEDs Satellite loop-through Terrestrial loop-through output ports output port... - Page 4 The following diagram describes a typical single household installation of the product: DTT/DAB/FM Antenna Quattro Wideband AC/DC Adapter Sky Q box Sky Q box or Legacy or Legacy Terminated Outputs Sky Q box Sky Q box or Legacy or Legacy The following diagram illustrates a typical MDU/building installation with two Wideband LNBs receiving two satellites: Wideband LNB...
- Page 5 Connect the cables from the Quattro/Wideband LNB to the input connectors (pay attention to identification of the connectors and the correct position of the LNB type switch) and Connect the Terrestrial antenna to Terrestrial input port: The number and frequency of the 16 User Bands available over each STB output port are the following: User Bands - Sky UK User Bands - EN50494/EN50607...
-
Page 6: Technical Parameters
Technical parameters Inputs 4 x Satellite IF inputs: - From 1x Quattro LNB - From 2x Wideband LNBs 1 x DTT/DAB/FM input from Terrestrial antenna Outputs 4 x loop-through satellite IF outputs 1 x loop-through terrestrial output 8 x Sky dSCR (16UBs) / SatCR / Legacy auto-detect ports with combined Terrestrial signal Frequency range Satellite:... -
Page 7: Troubleshooting
Use local waste collection and recycling systems to dispose wore out products. Compliance FTA Communication Technologies S.á r.l declares that the Multiswitch product is in compliance with Directive 2014/53/EU (RED). The full text of the EU declaration of conformity is available at: www.inverto.tv/support_dc * DiSEqC™ is a registered trademark of Eutelsat... - Page 8 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as de- tailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice. As product specifications may change without notice, always contact Inverto to obtain the latest...
